DH 5.0 Fittings DH 5.0 Transparent
Fittings DH 5.0 Pipe

DH 5.0 Transparent Fittings

  • Same properties as DH 5.0
  • Allows for visual inspection of fluid inside the pipe

※ Not for pressure

Catalog

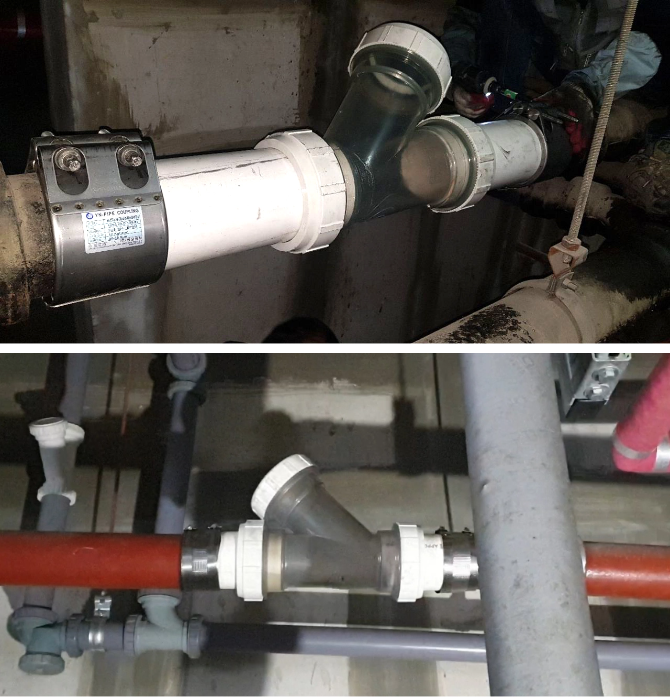

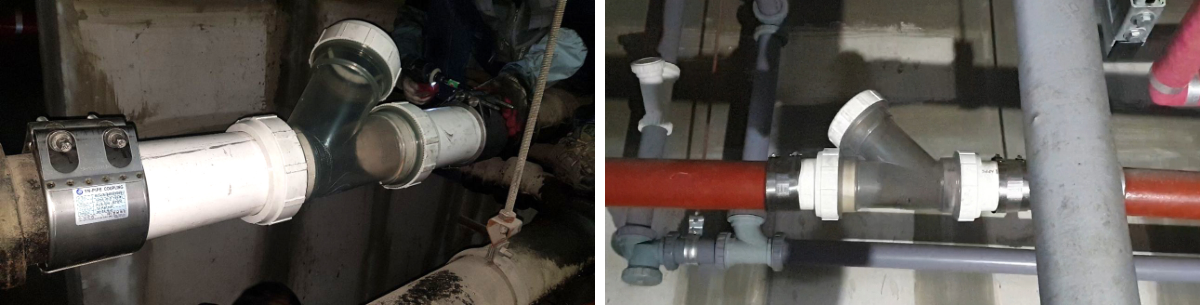

Visual Inspection available for Drainage Flow

Visual Inspection available for Drainage Flow Visual Inspection available for Drainage Flow

Passed the hydraulic pressure test at 70 psi

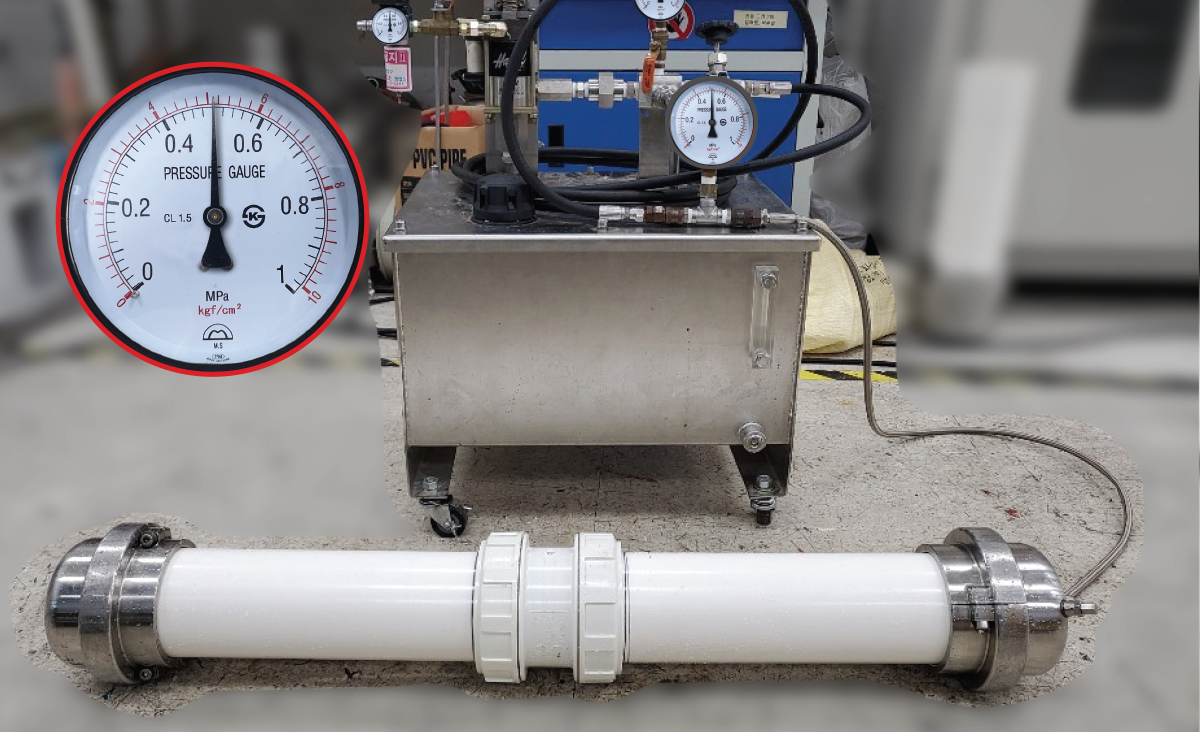

Hydrostatic Pressure Test

Hydrostatic Pressure Test

Test Conditions : Nominal Diameter 4 inch, Length 3ft, 1 Min

Doubles construction ability

By applying all-in-one cartridge, doubling the construction ability
(Reduces cap tightening torque 70N·M → 35N·M)

Doubles construction ability Doubles construction ability

Pass the Repeated Bending Test

DH 5.0 Fittings passed the repeated bending test under extreme conditions,
reciprocating 60mm displacement at 60 times per minute.

Pass the Repeated Bending Test Pass the Repeated Bending Test

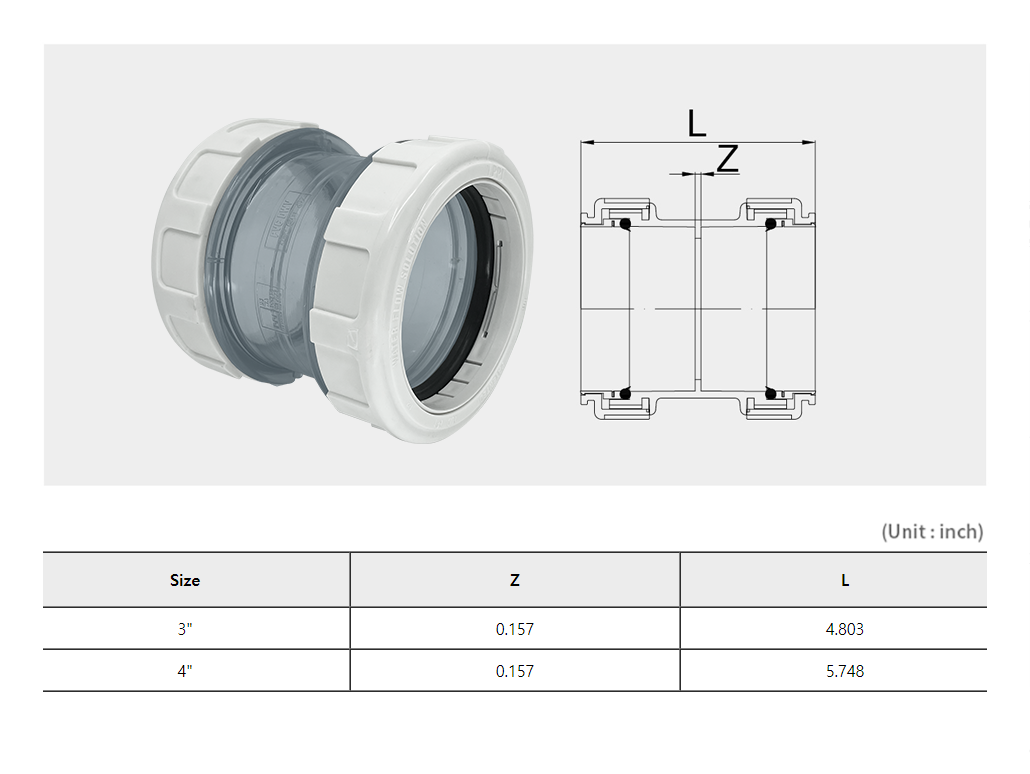

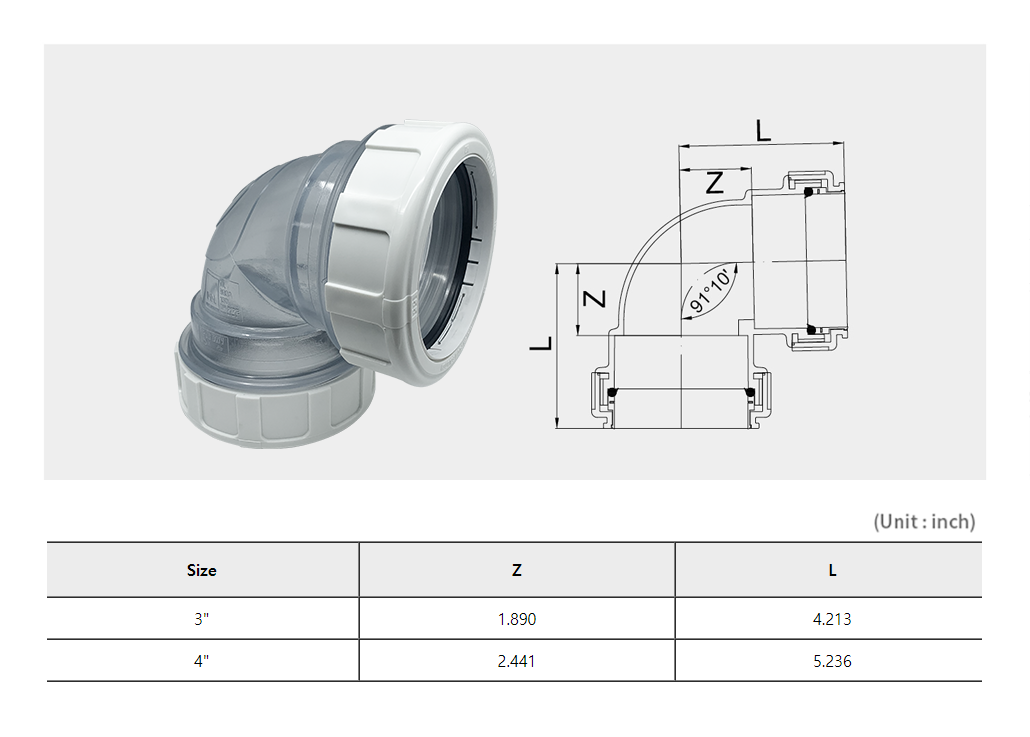

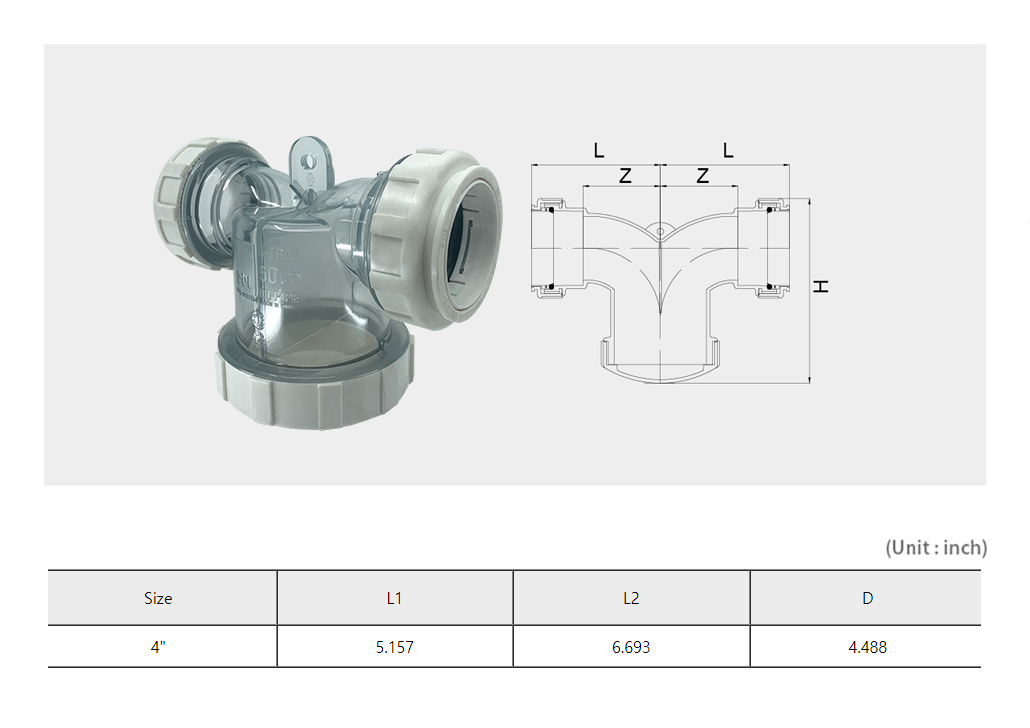

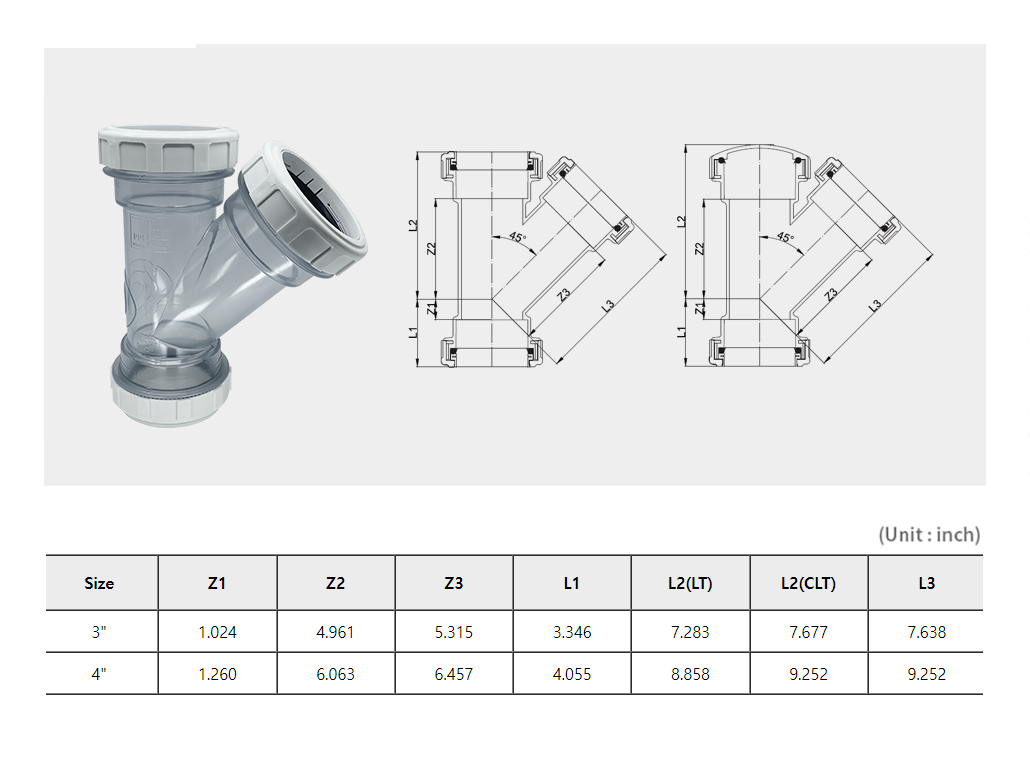

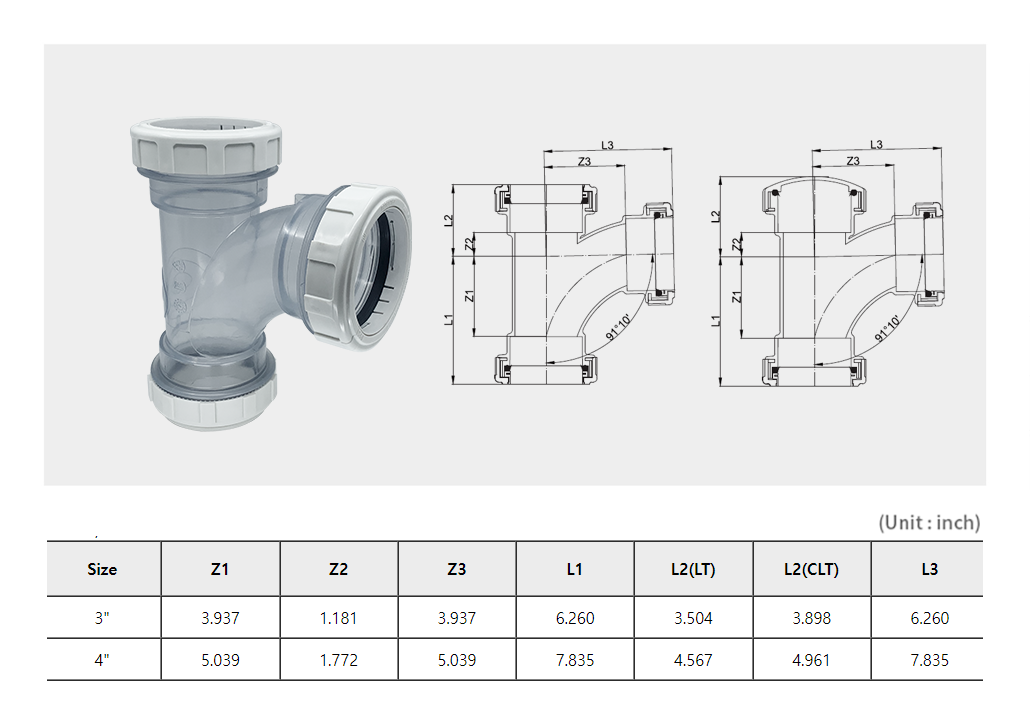

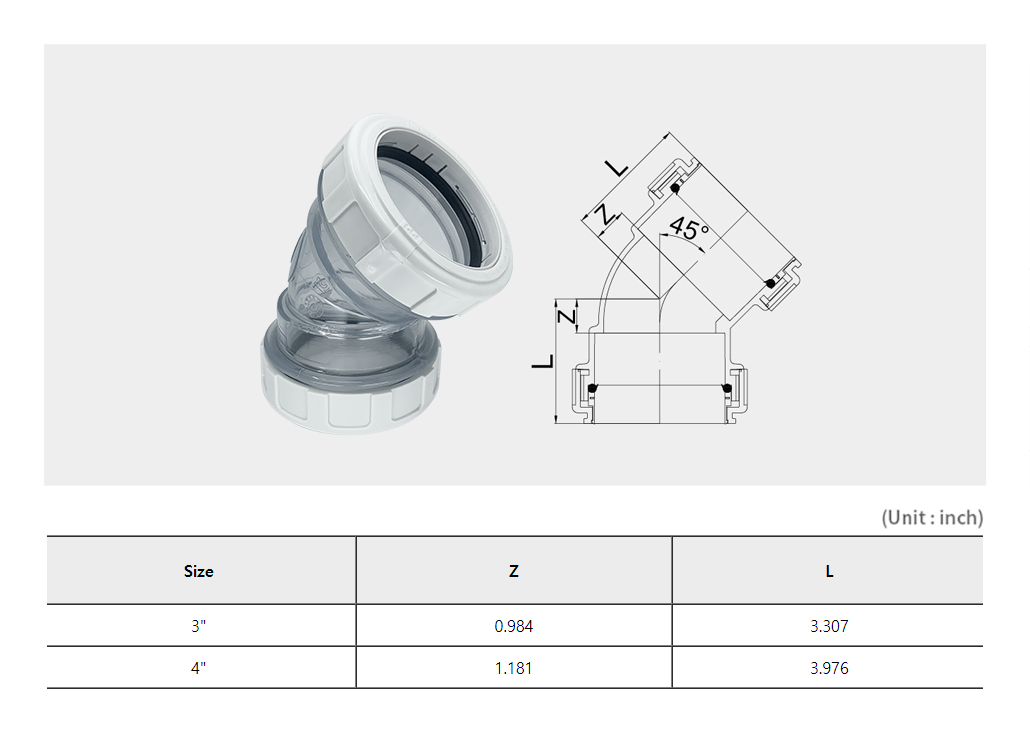

Fittings

이음관 모식도

Unit : IN

Size d
(Min.)		 d1 D1
(Min.)		  D  ℓ ℓ1
2" 1.972 2.386 2.370 3.594 1.654 1.240
3" 3.012 3.535 3.524 5.000 2.323 1.457
4" 3.850 4.520 4.508 6.075 2.795 1.732
