DH 5.0 Fittings DH 5.0 Transparent
Fittings DH 5.0 Pipe

DH 5.0 Fittings

  • Passed hydraulic pressure test at 70 psi / 1 min
  • For Drainage, Waste, and Vent
  • For High-Rise Residential & Commercial Buildings

* Not For Pressure

Catalog

Passed the hydraulic pressure test at 70 Psi

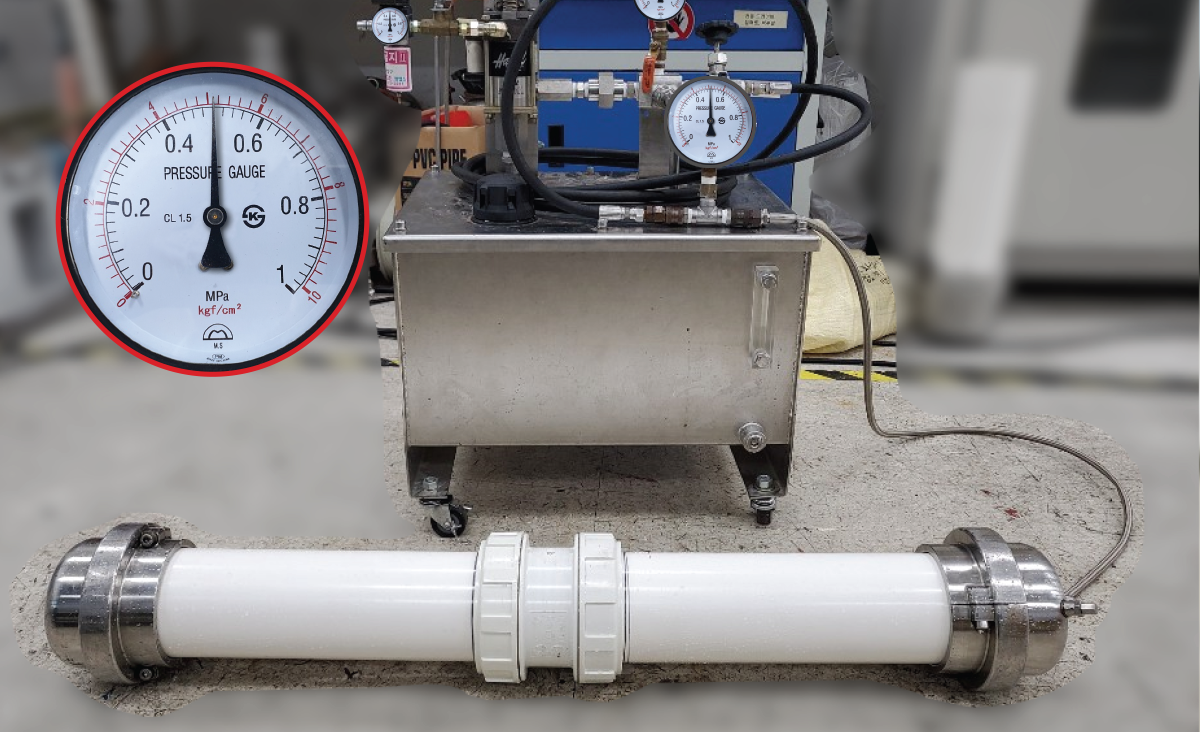

Hydrostatic Pressure Test

Hydrostatic Pressure Test

Test Conditions : Nominal Diameter 4 inch, Length 3ft, 1 Min

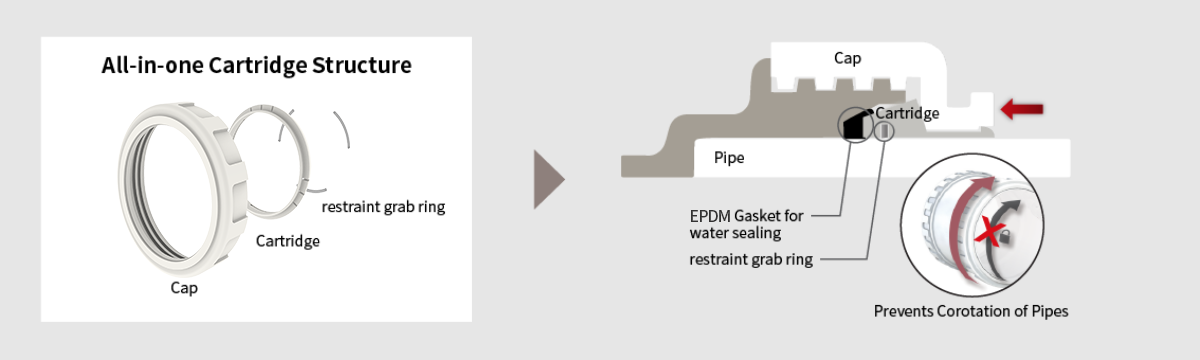

Doubles installation ability

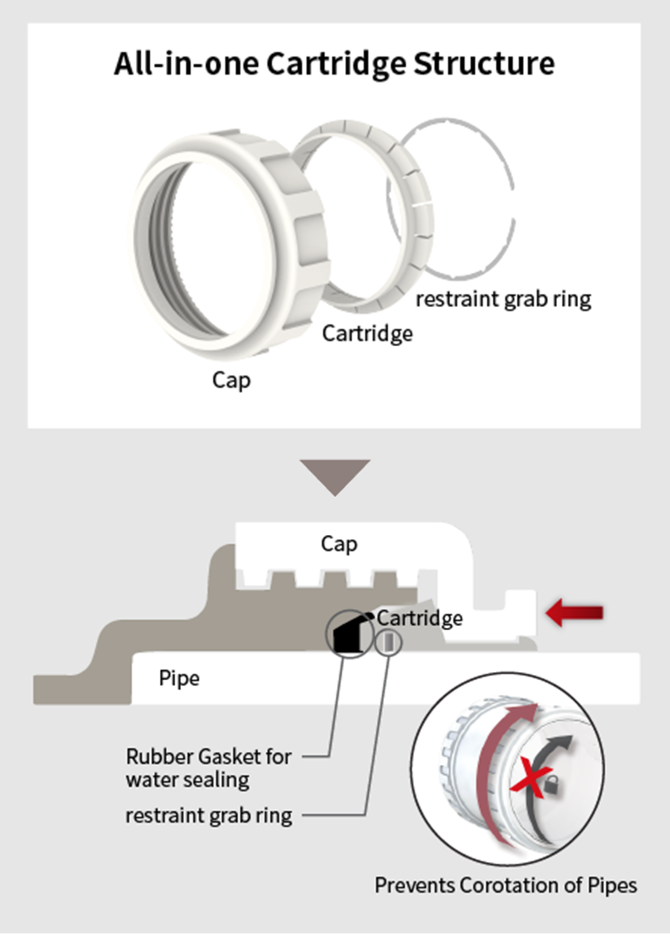

- By applying all-in-one cartridge, doubling the installation ability
(Reduces cap tightening torque 70N·M → 35N·M)
- Prevents Corotation of Pipes when tightening the cap

Doubles construction ability Doubles construction ability

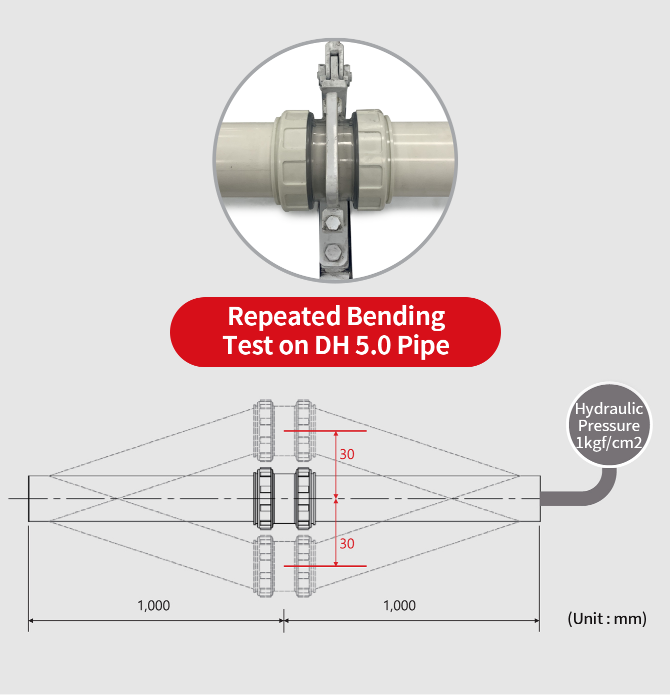

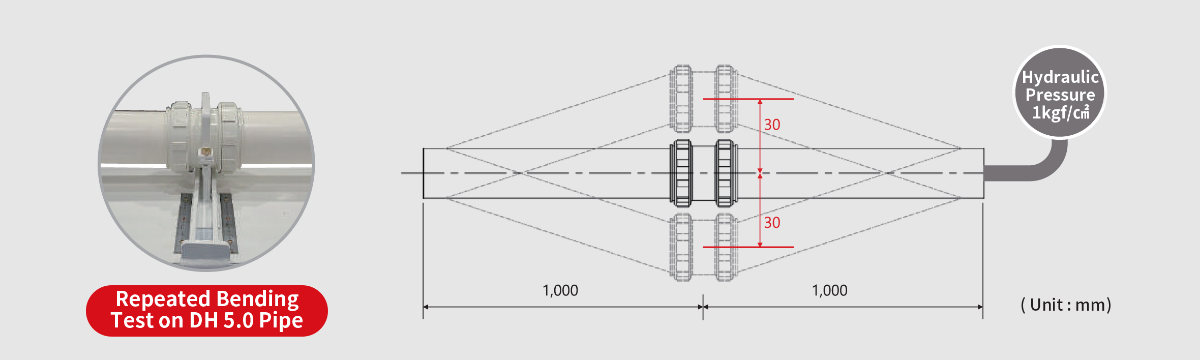

Pass the Repeated Bending Test

DH 5.0 Fittings passed the repeated bending test under extreme conditions,
reciprocating 60mm displacement at 60 times per minute.

Pass the Repeated Bending Test Pass the Repeated Bending Test

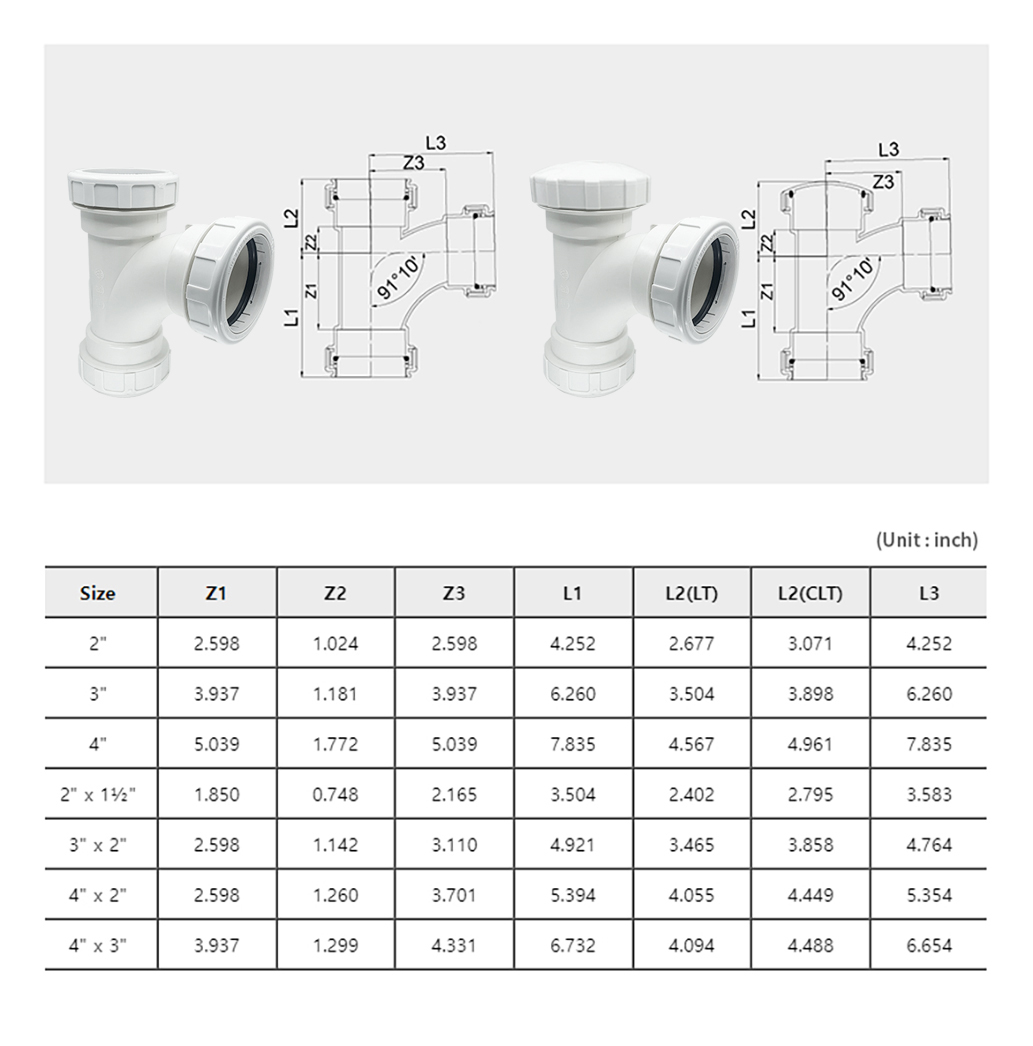

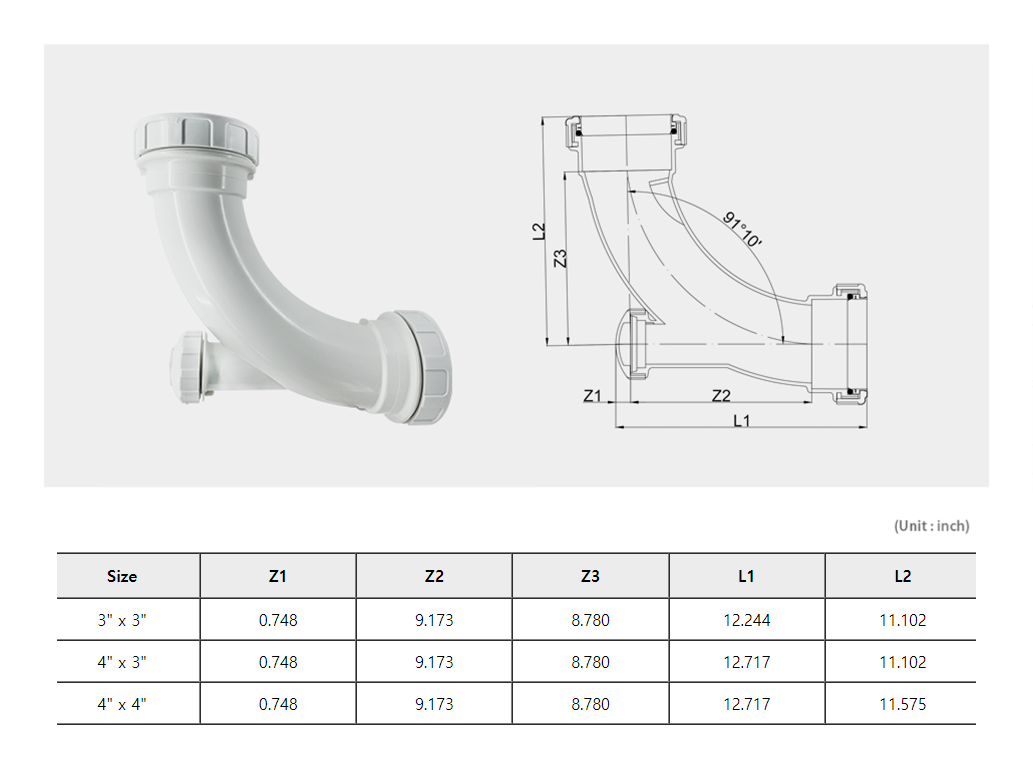

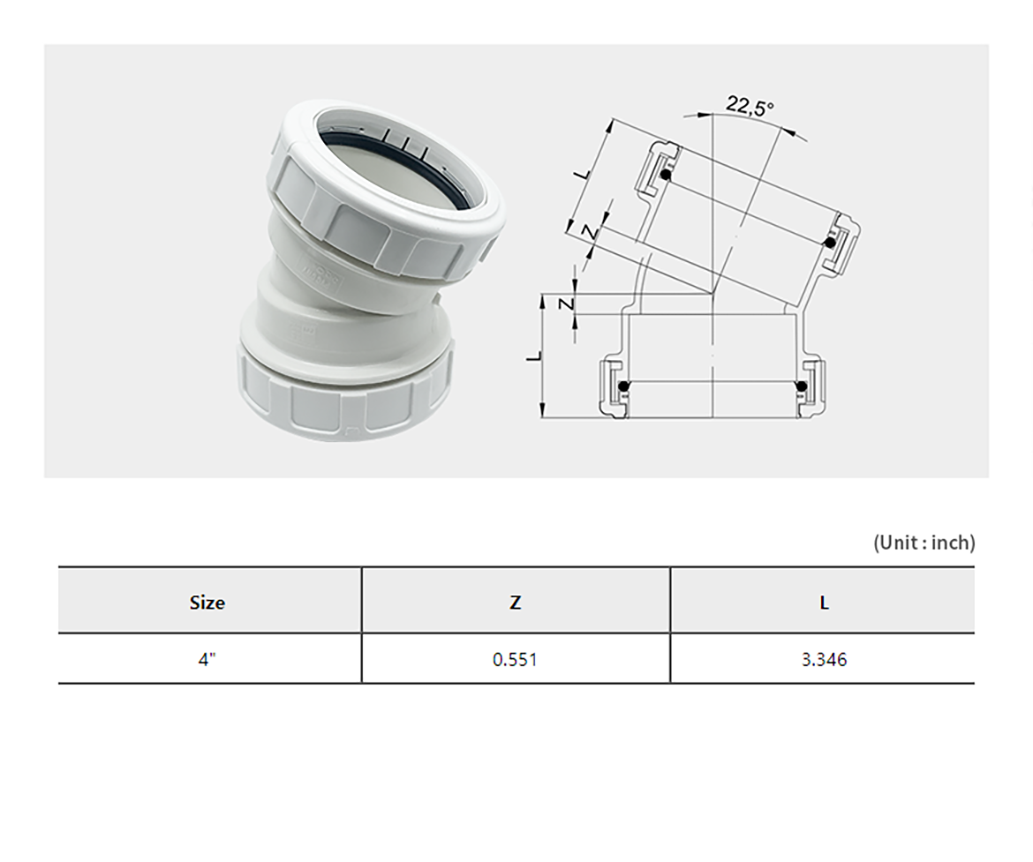

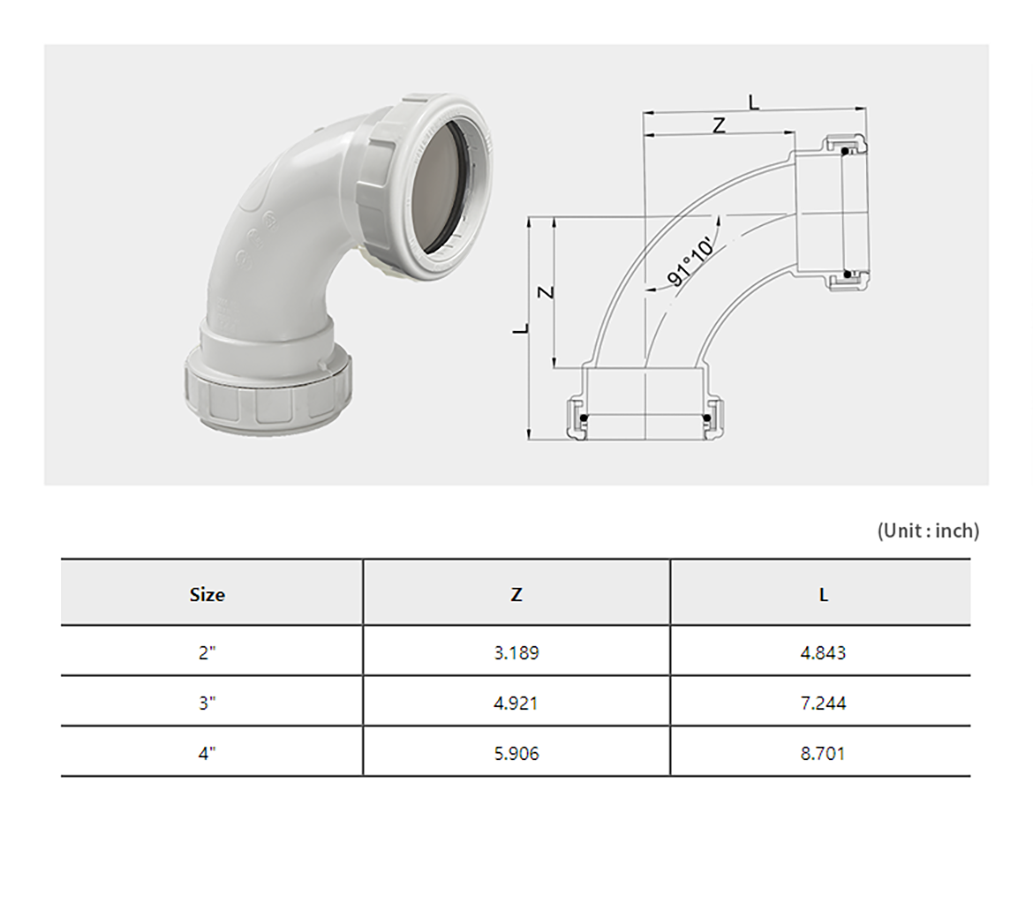

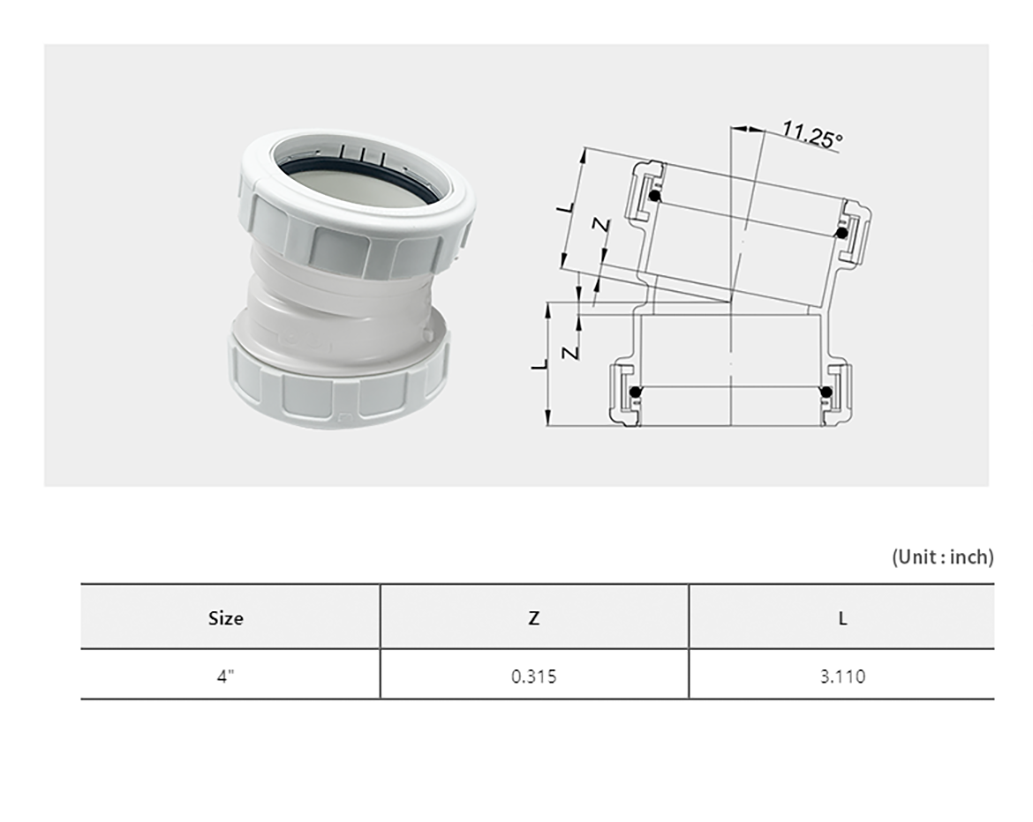

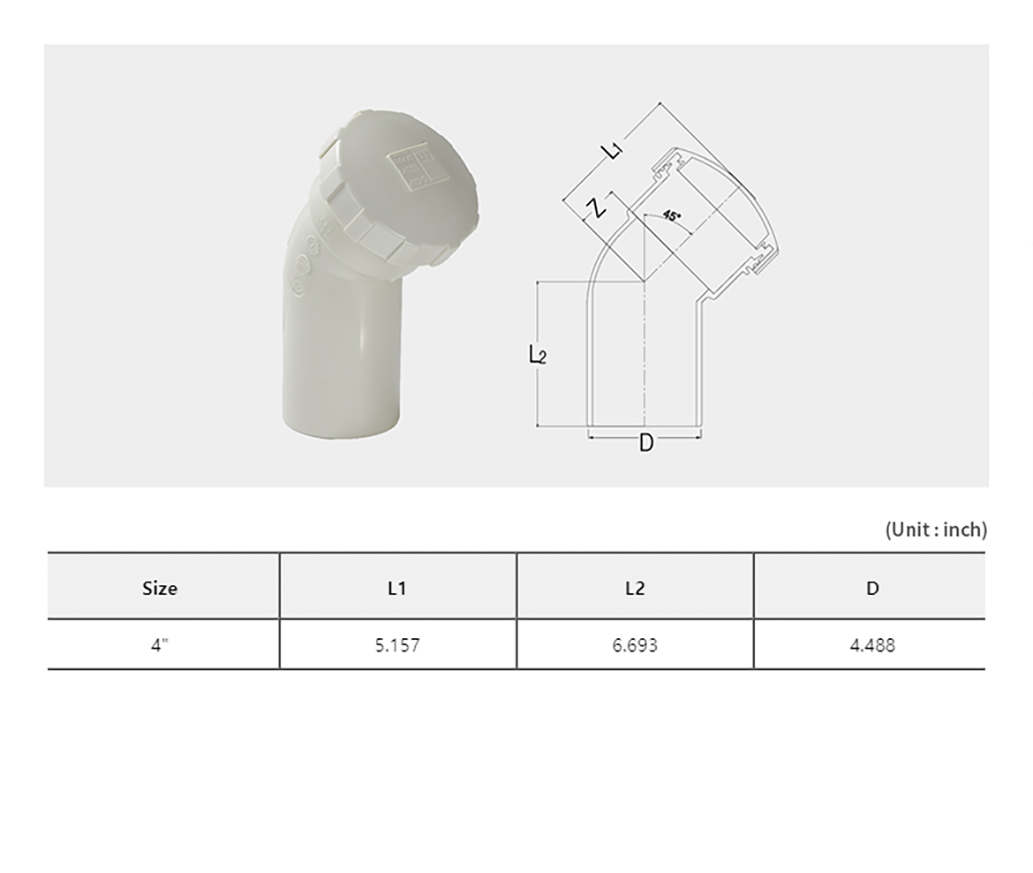

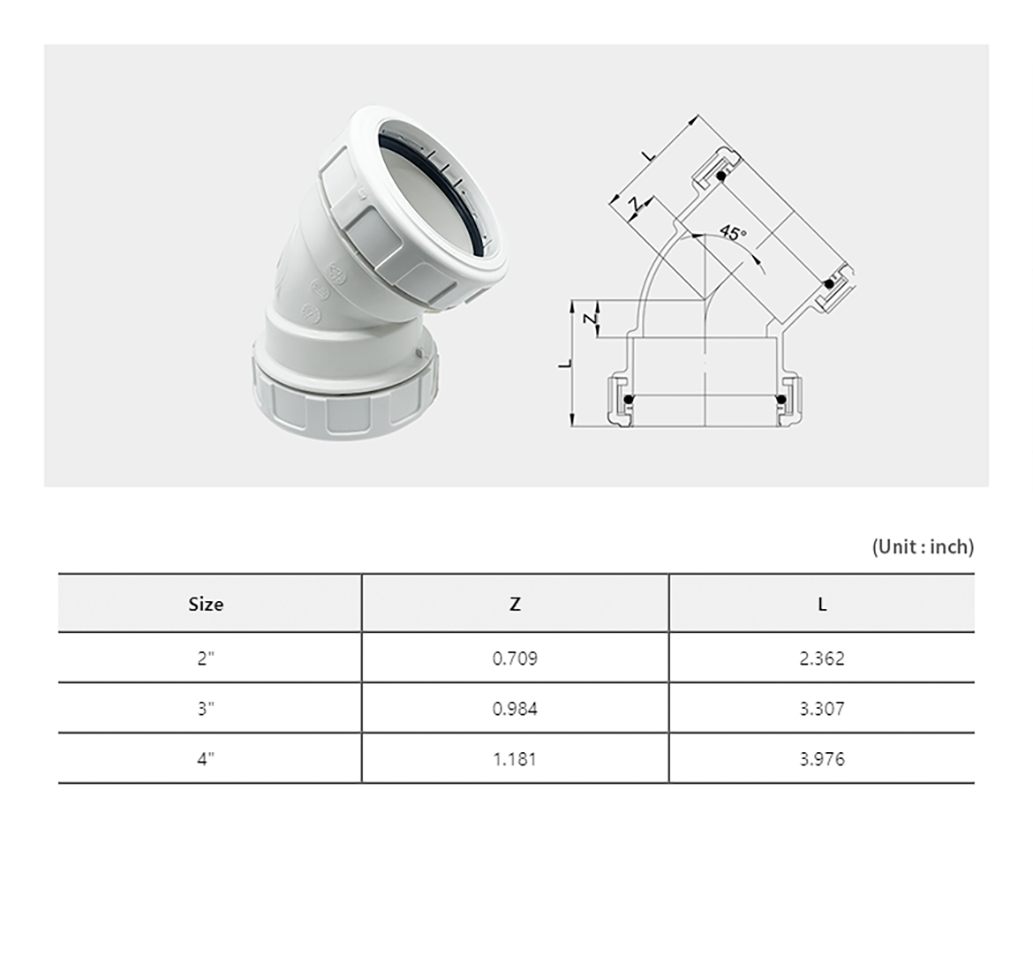

Fittings

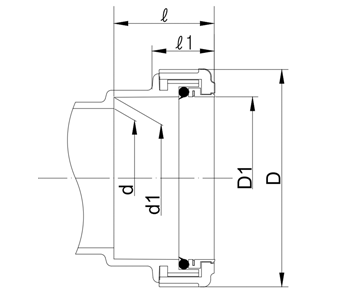

규격표 모식도

Unit : IN

Size d
(Min.)		 d1 D1
(Min.)		  D  ℓ ℓ1

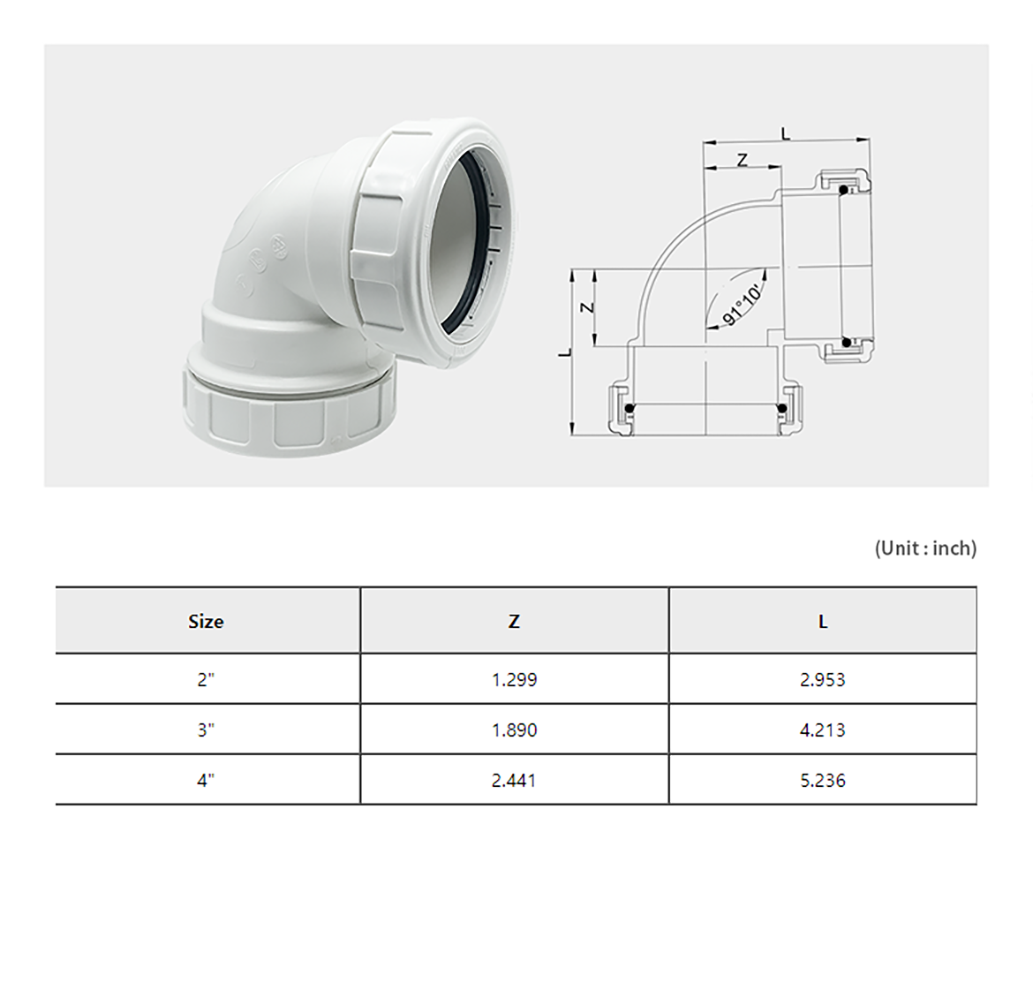

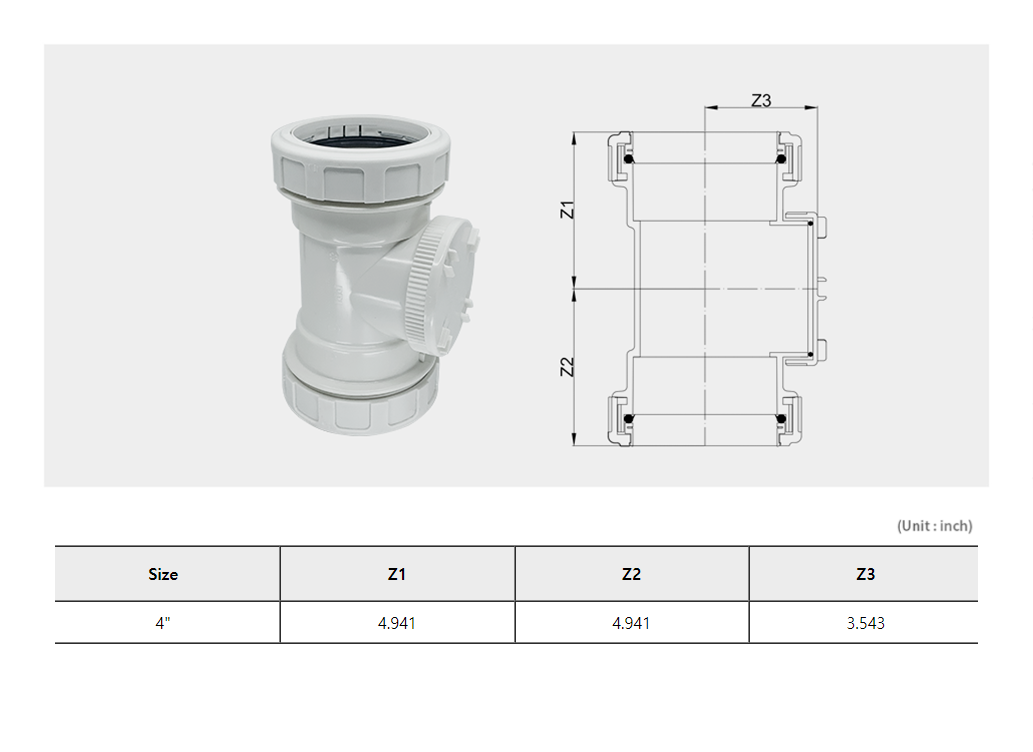

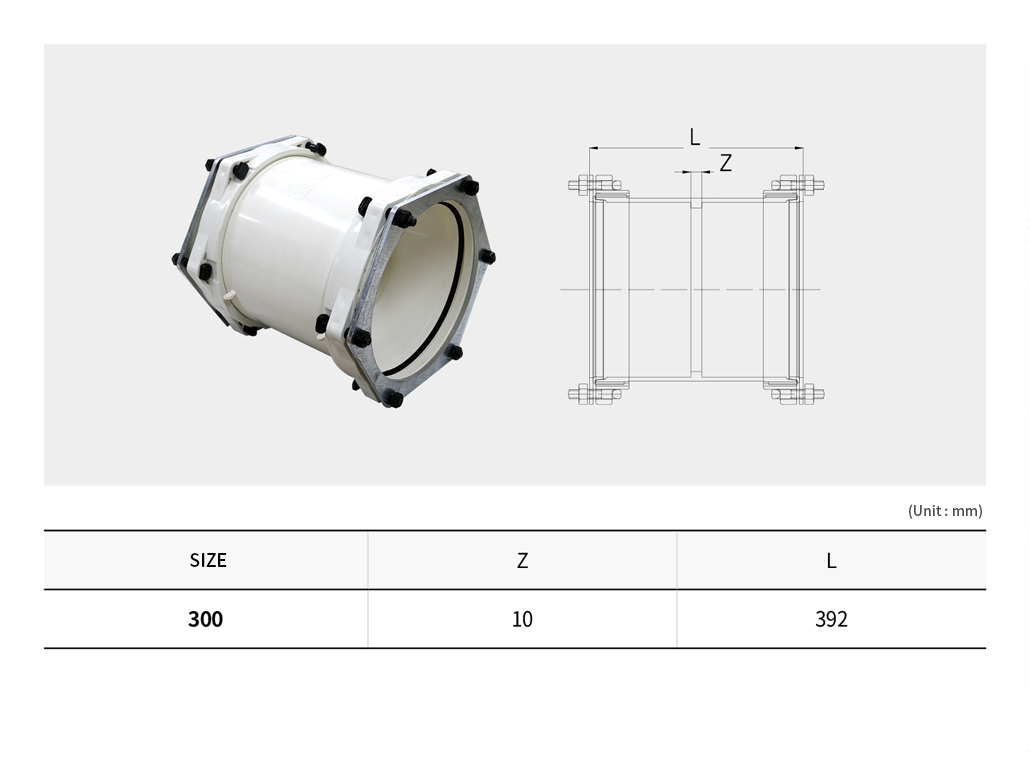

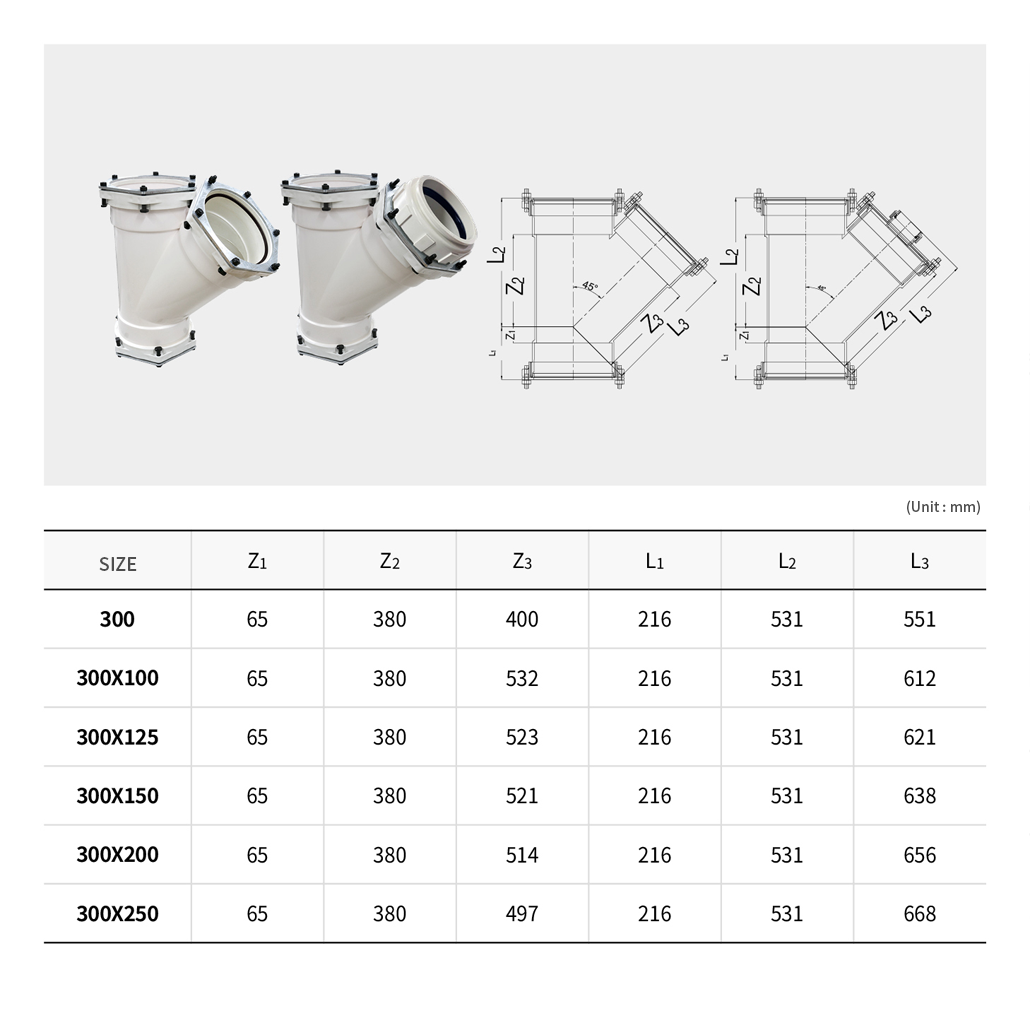

1½" 1.539 1.921 1.898 2.709 1.417 1.142
2" 1.972 2.386 2.370 3.594 1.654 1.240
3" 3.012 3.535 3.524 5.000 2.323 1.457
4" 3.850 4.520 4.508 6.075 2.795 1.732

Click a product to view detailed descriptions

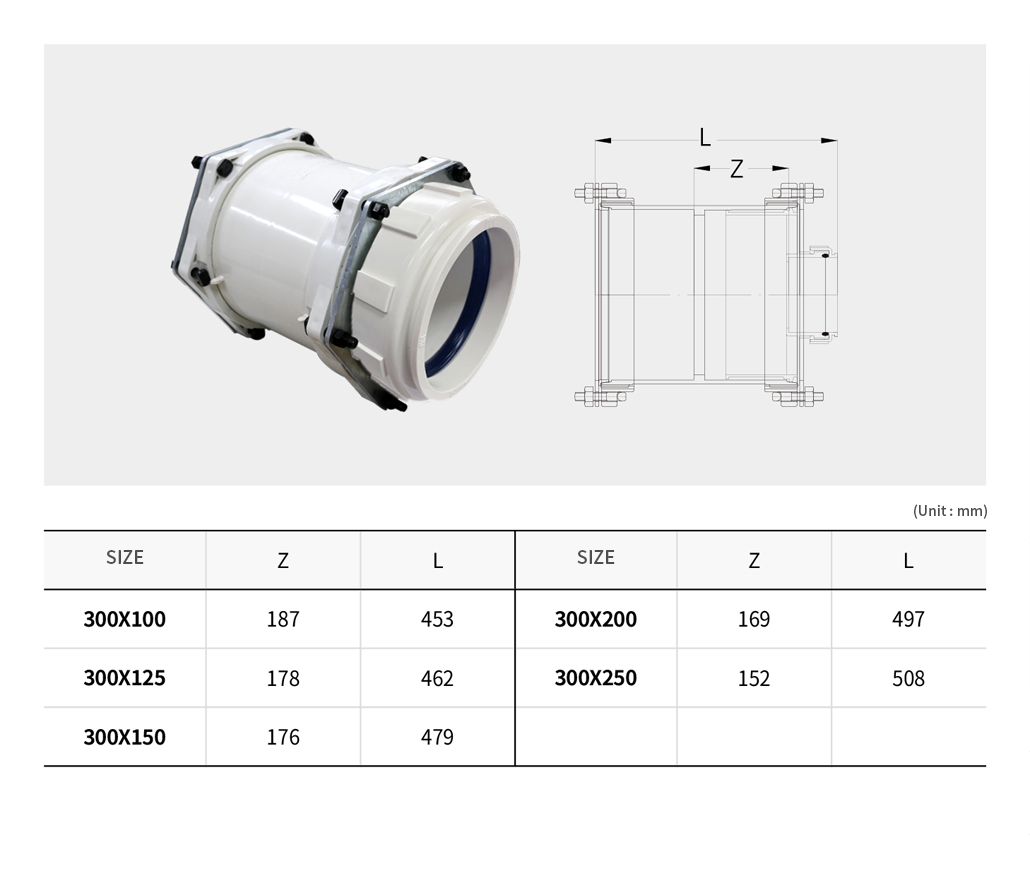

Fitting for 12 Inch

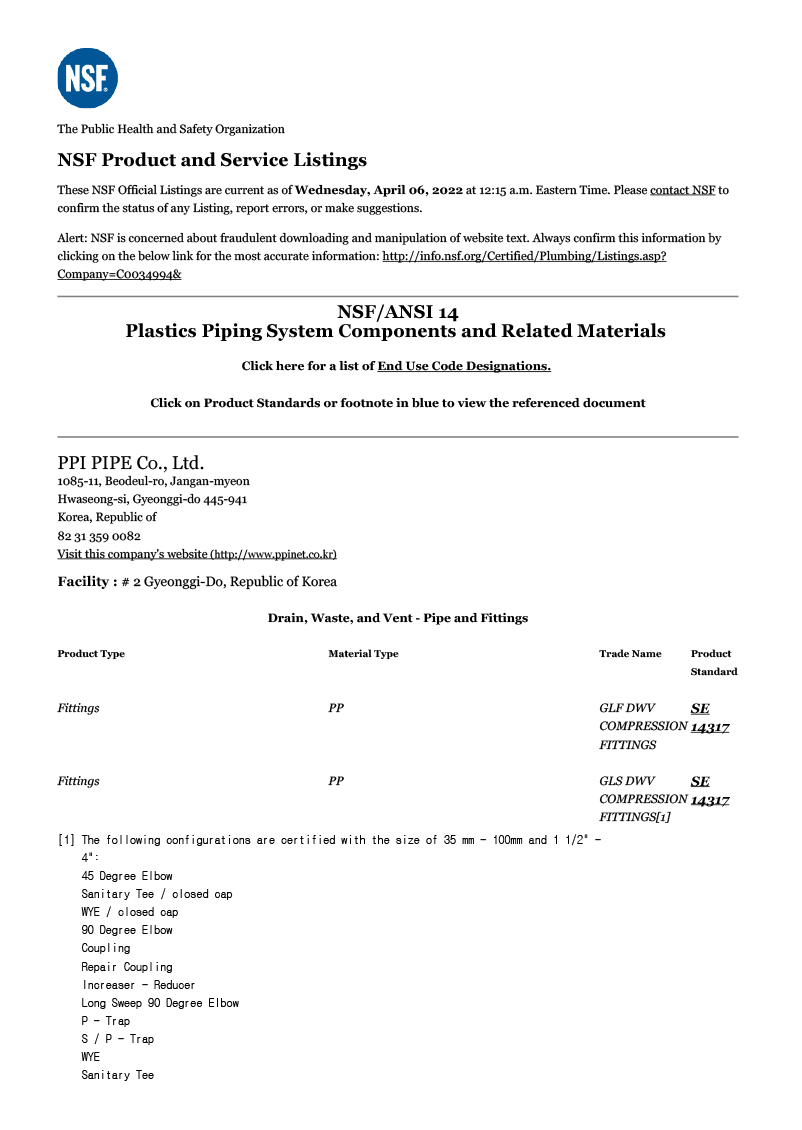

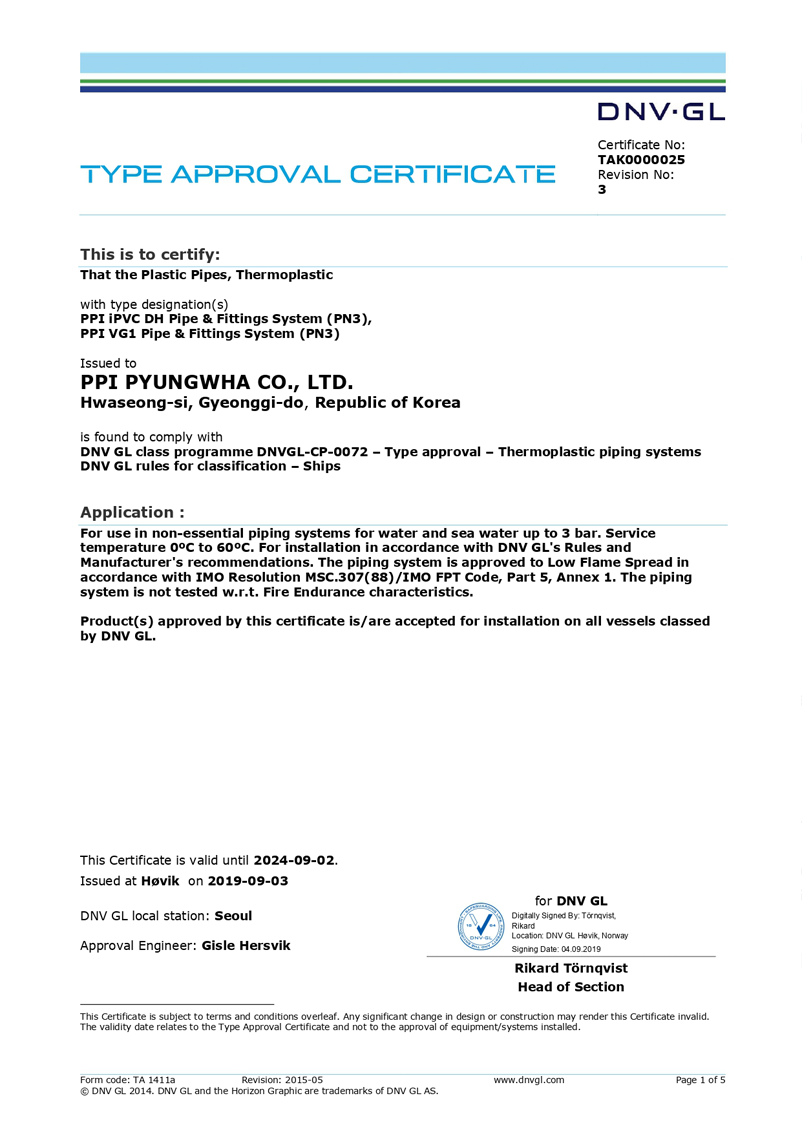

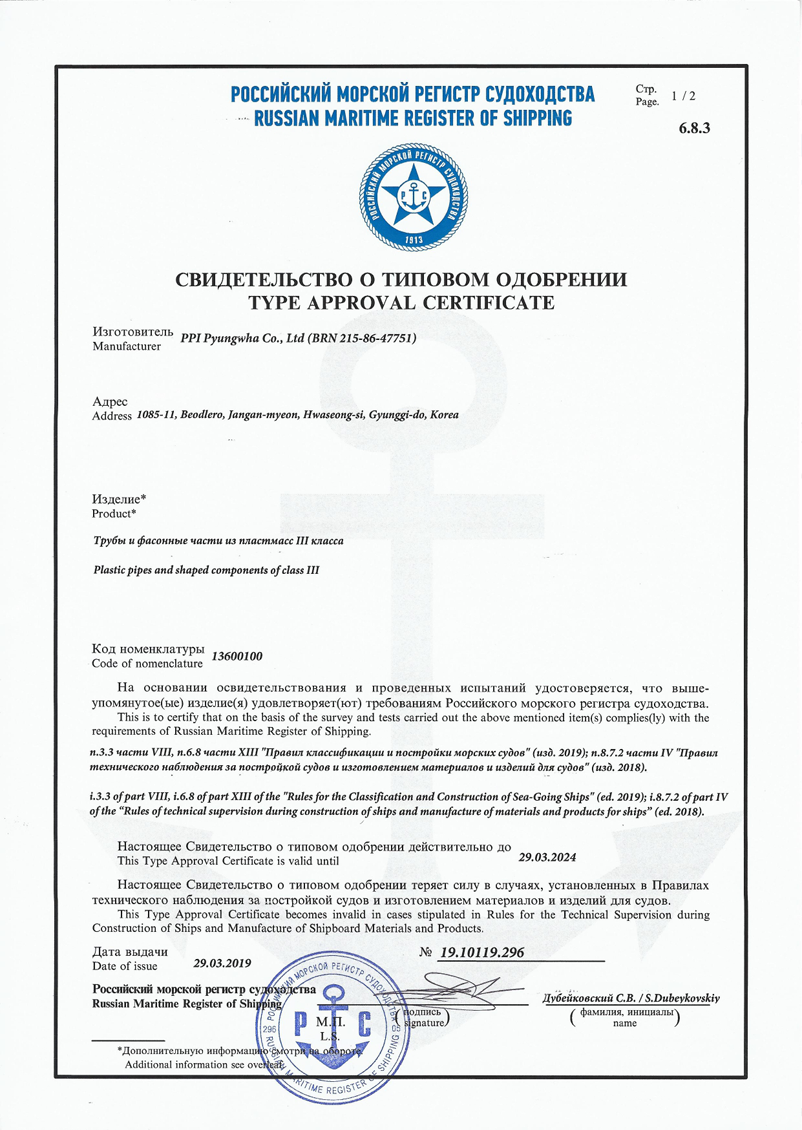

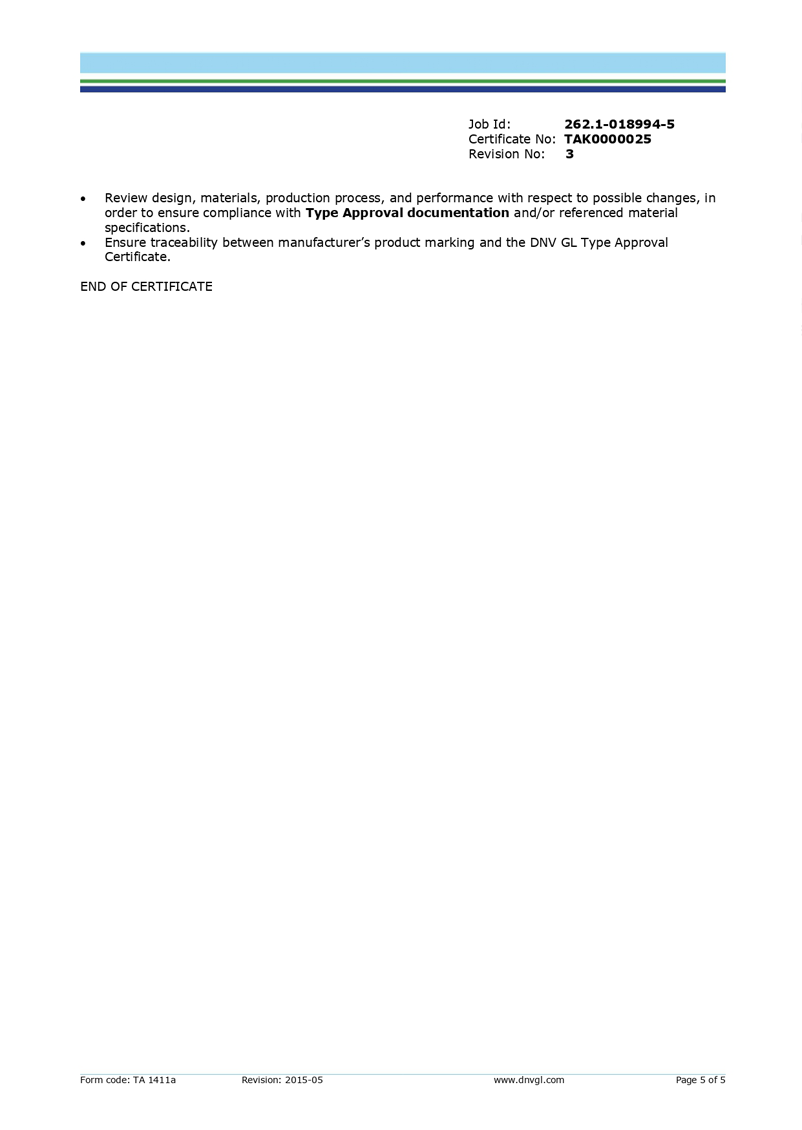

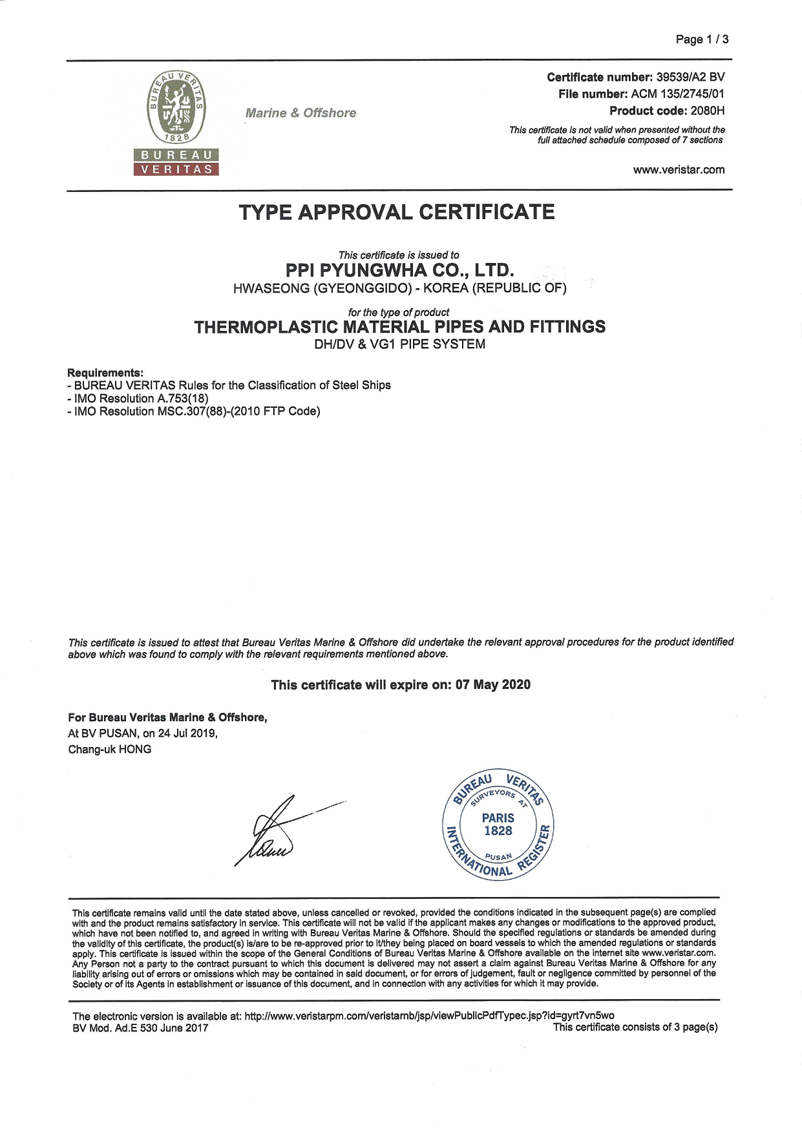

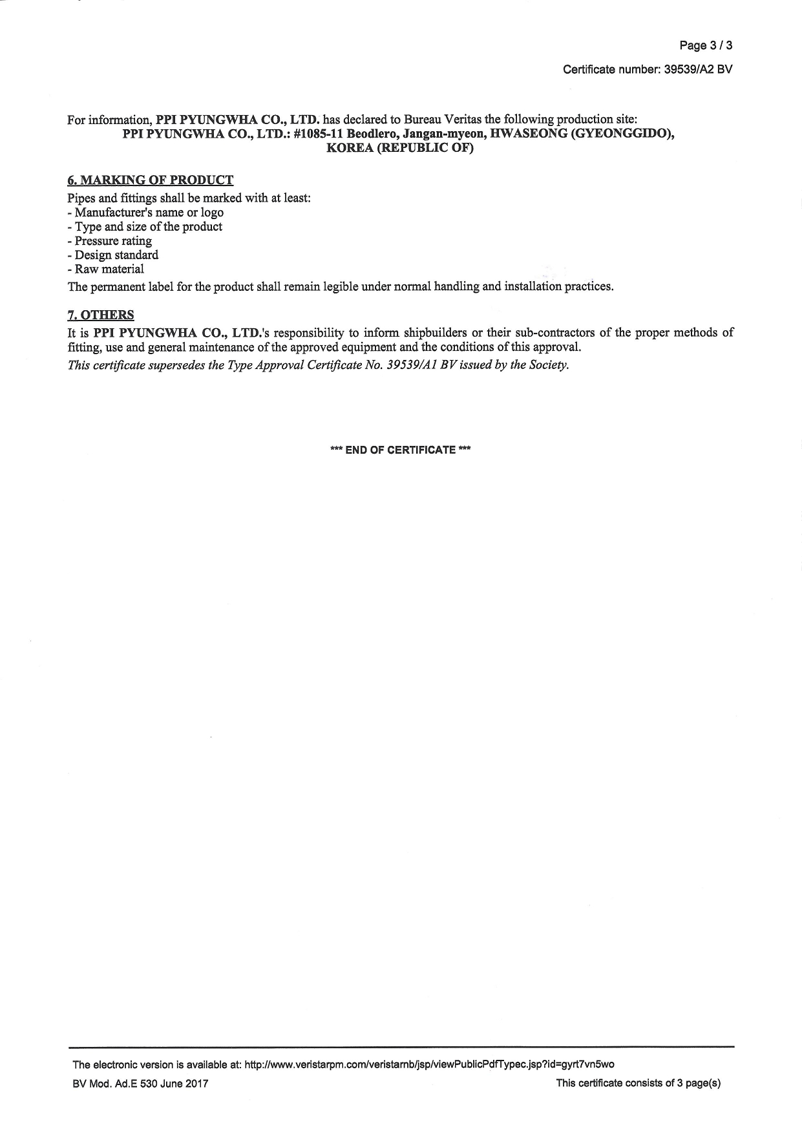

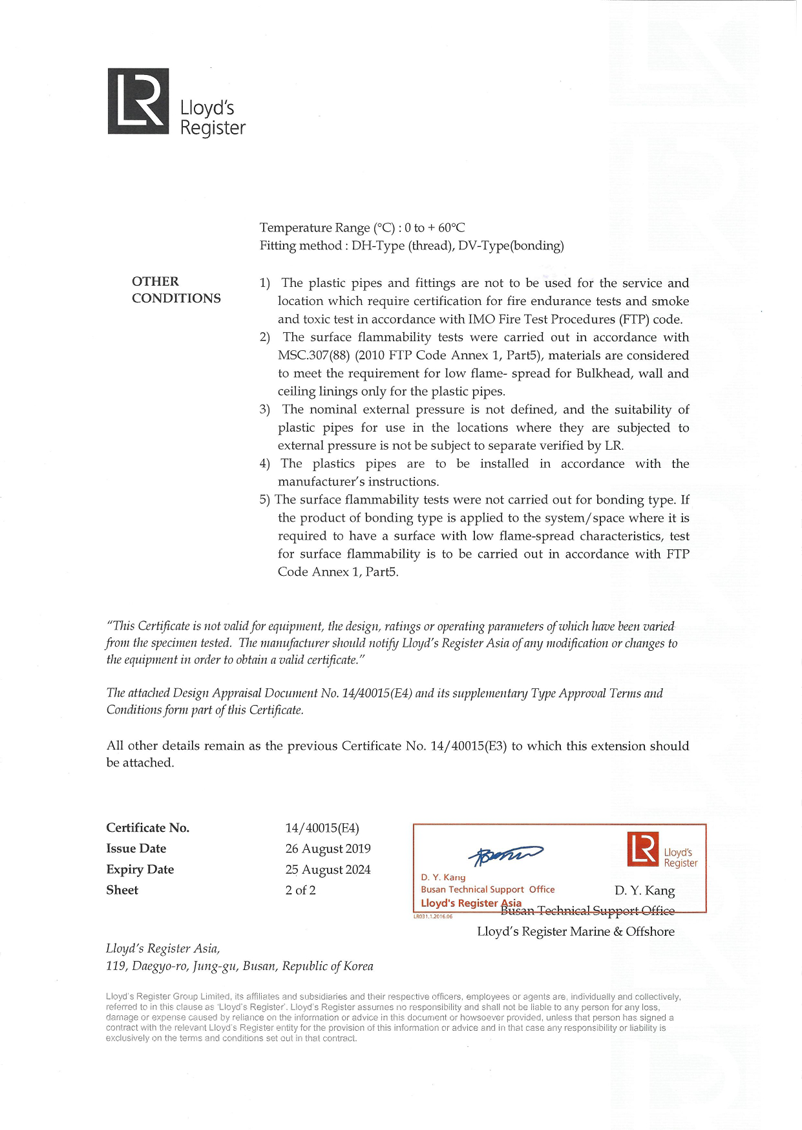

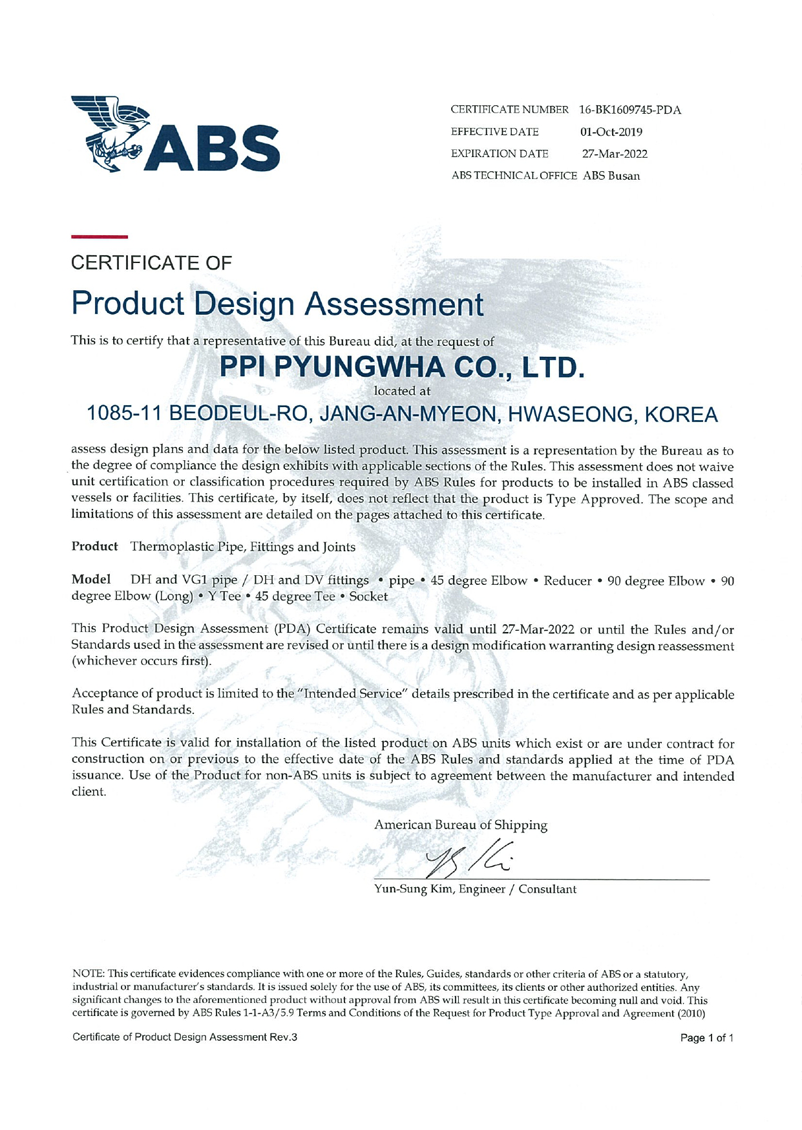

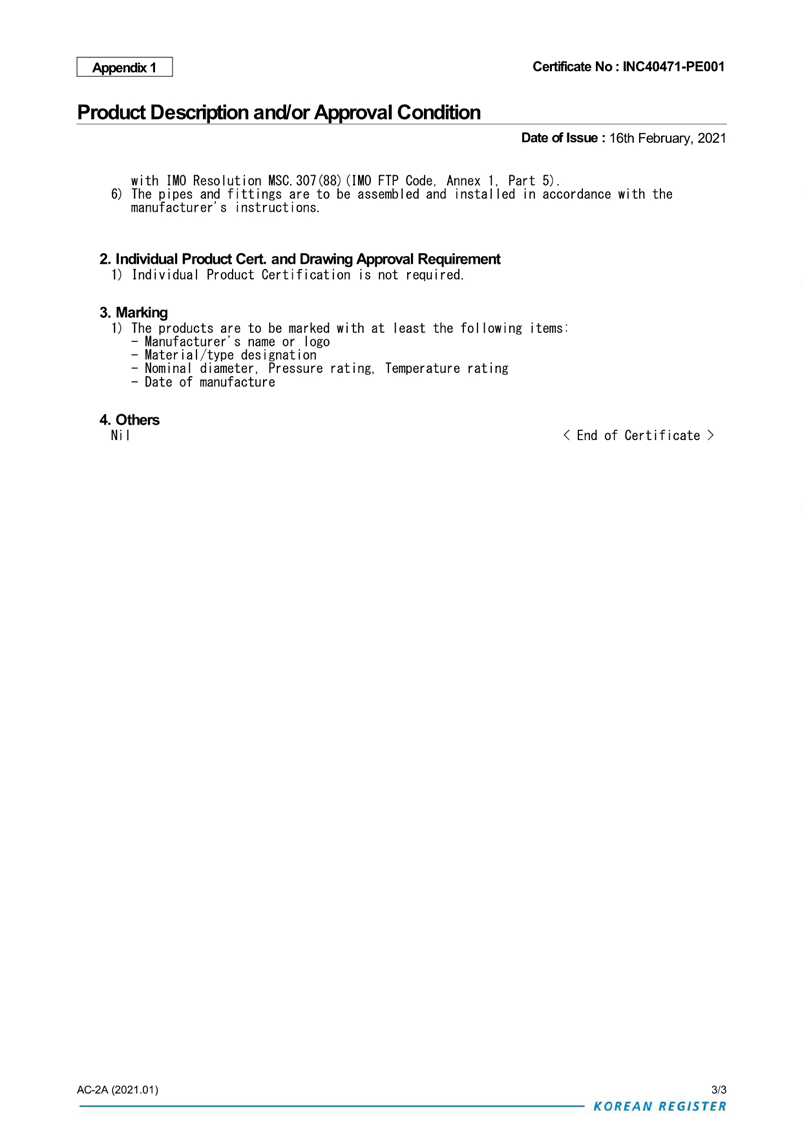

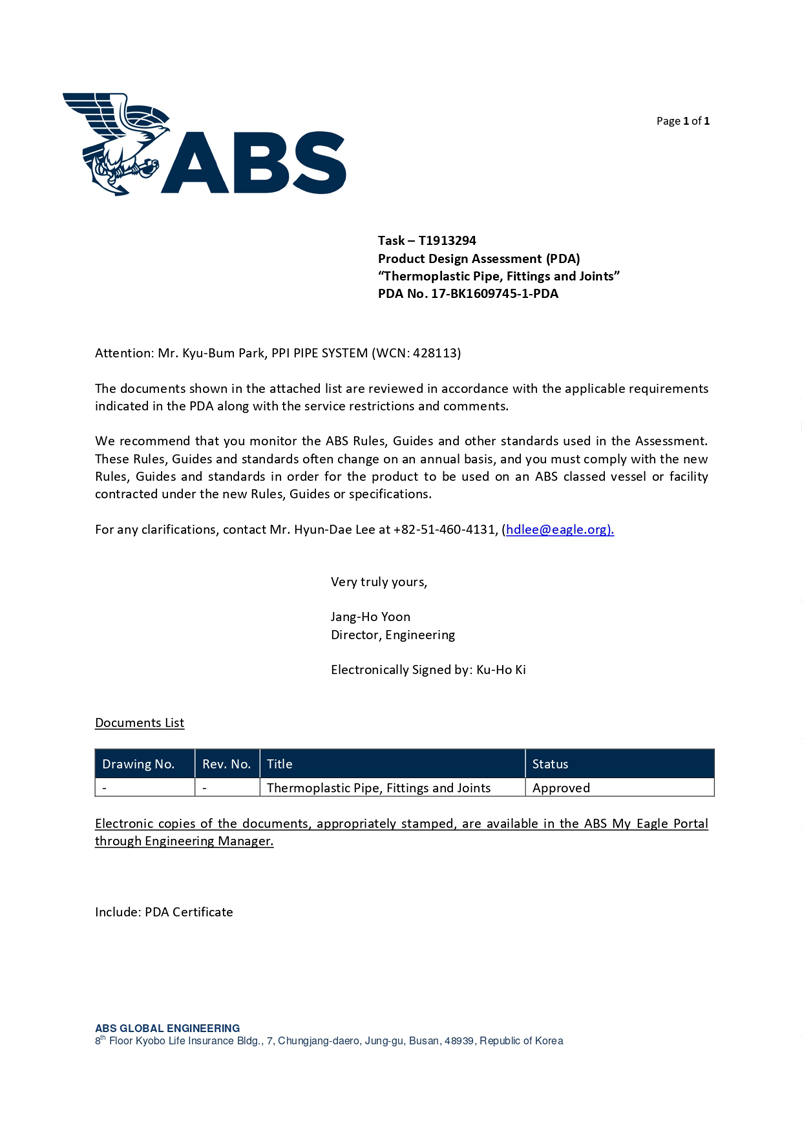

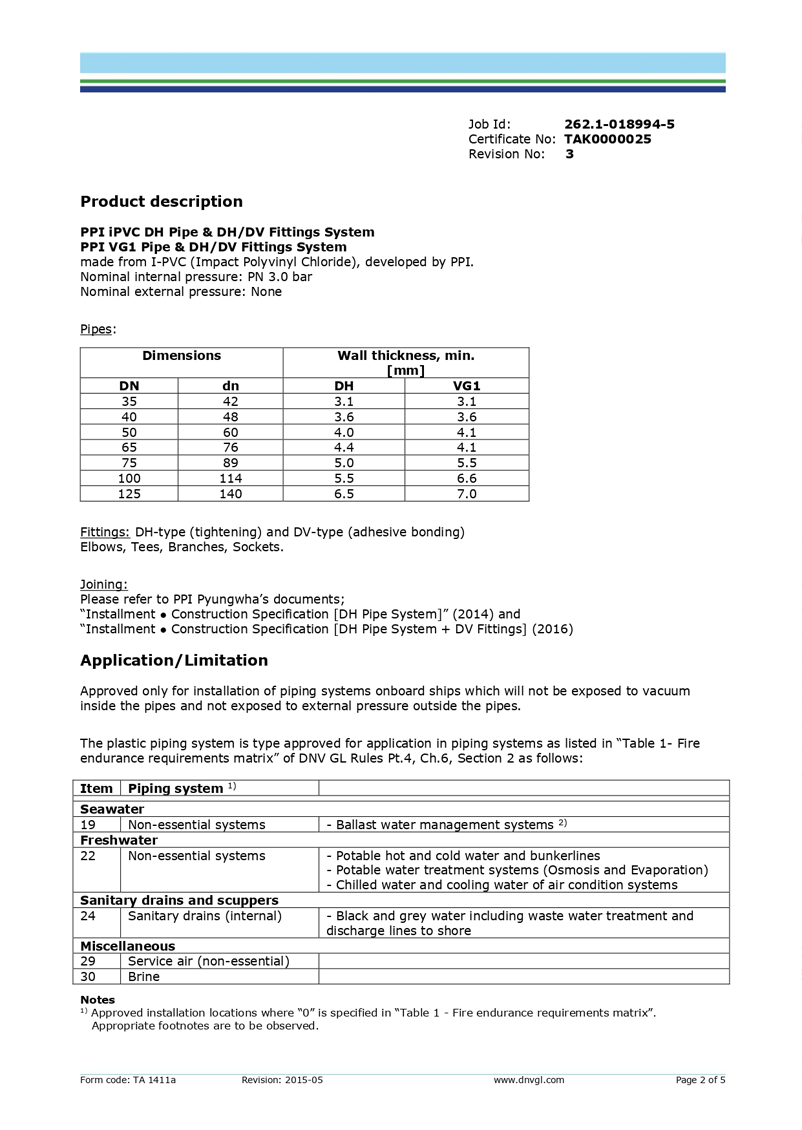

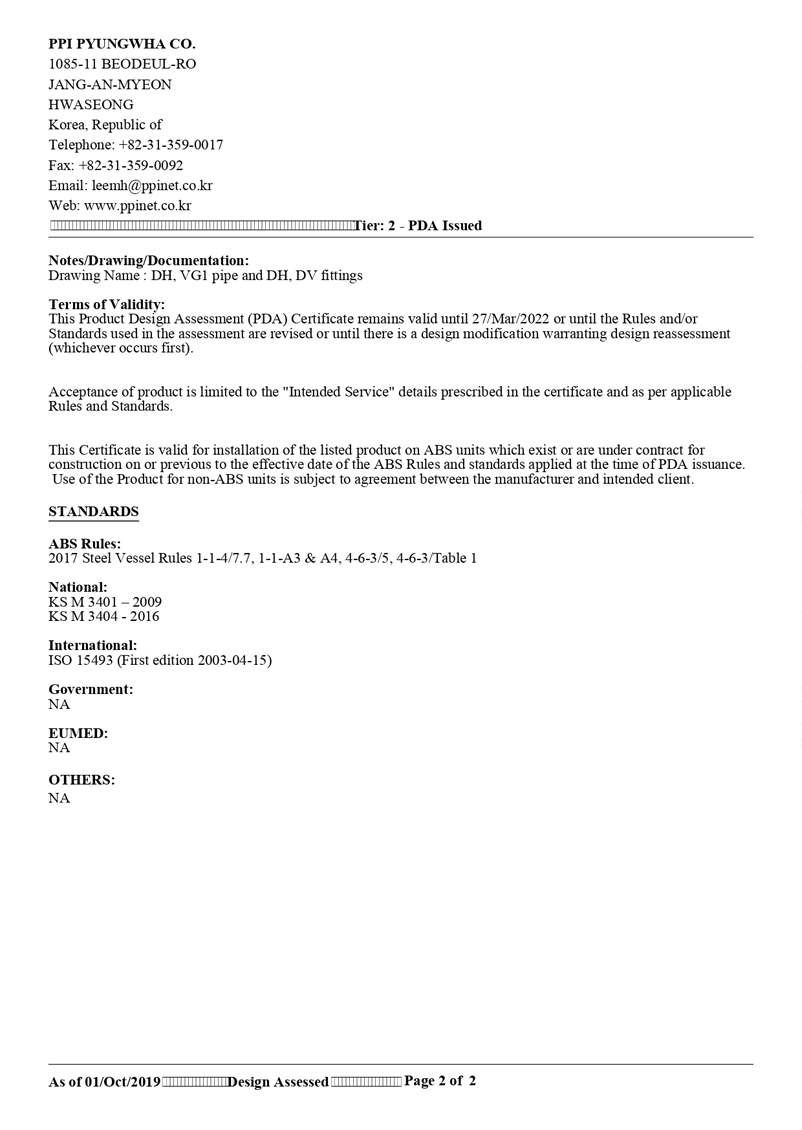

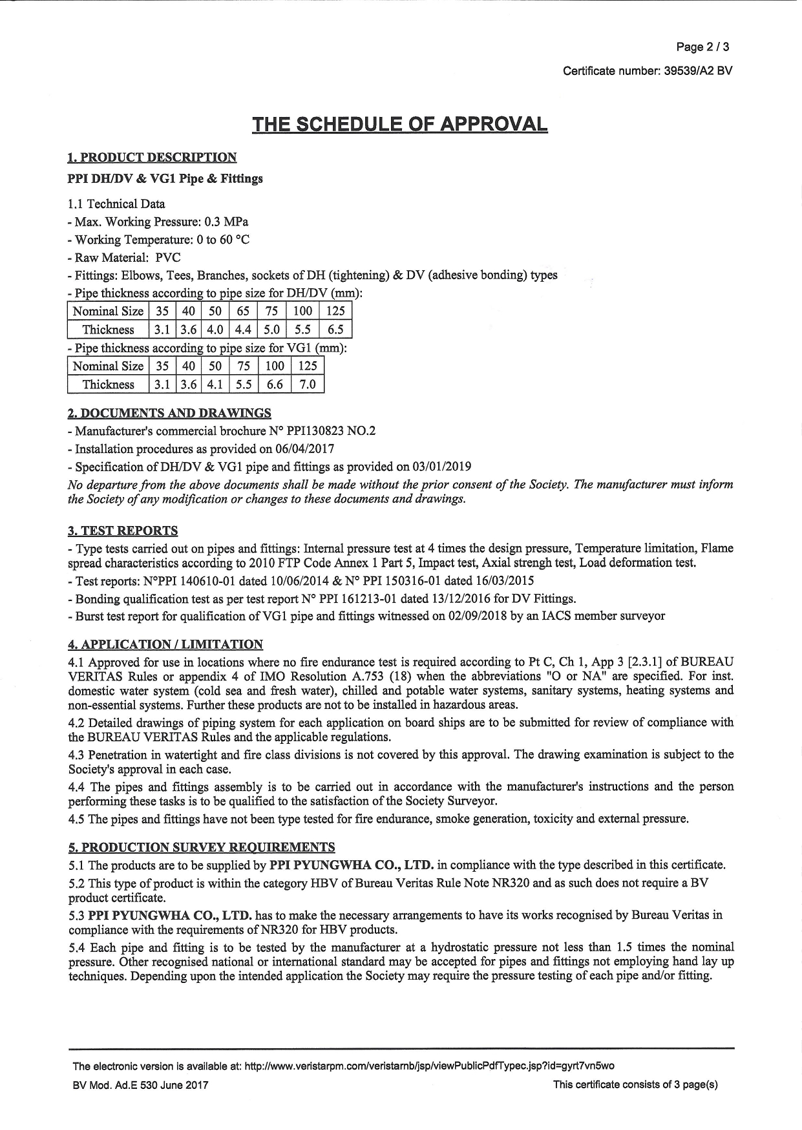

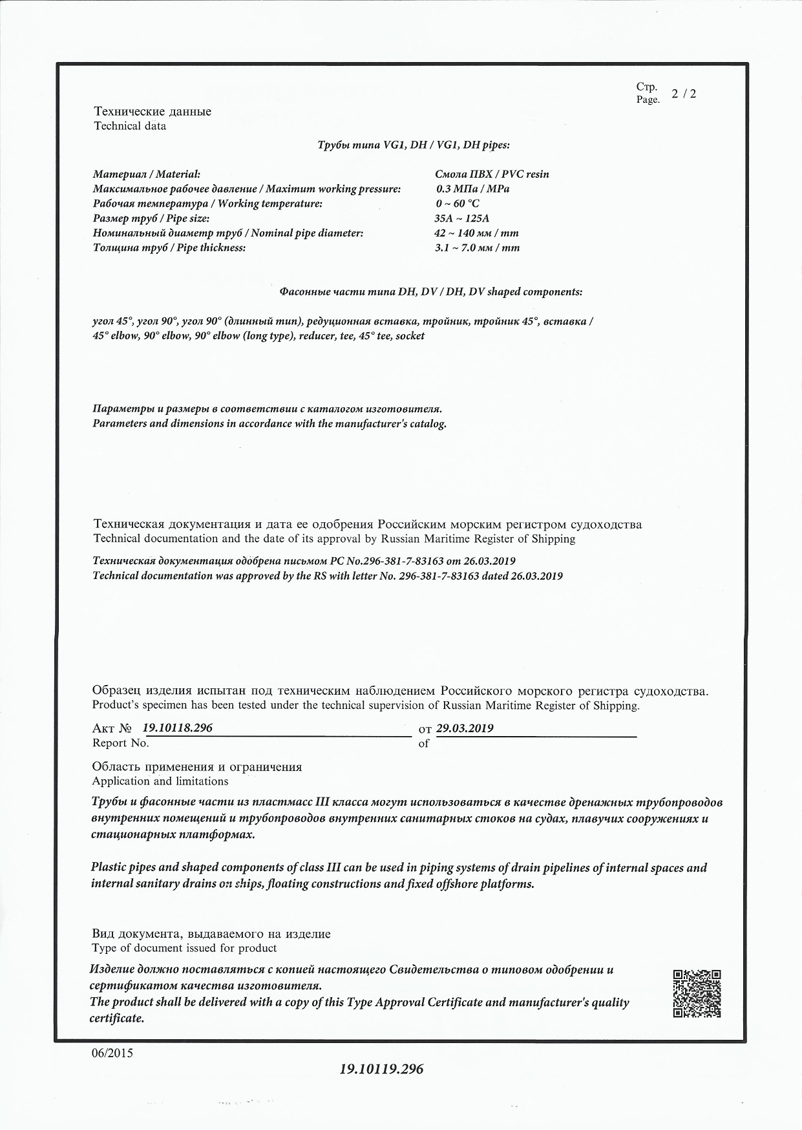

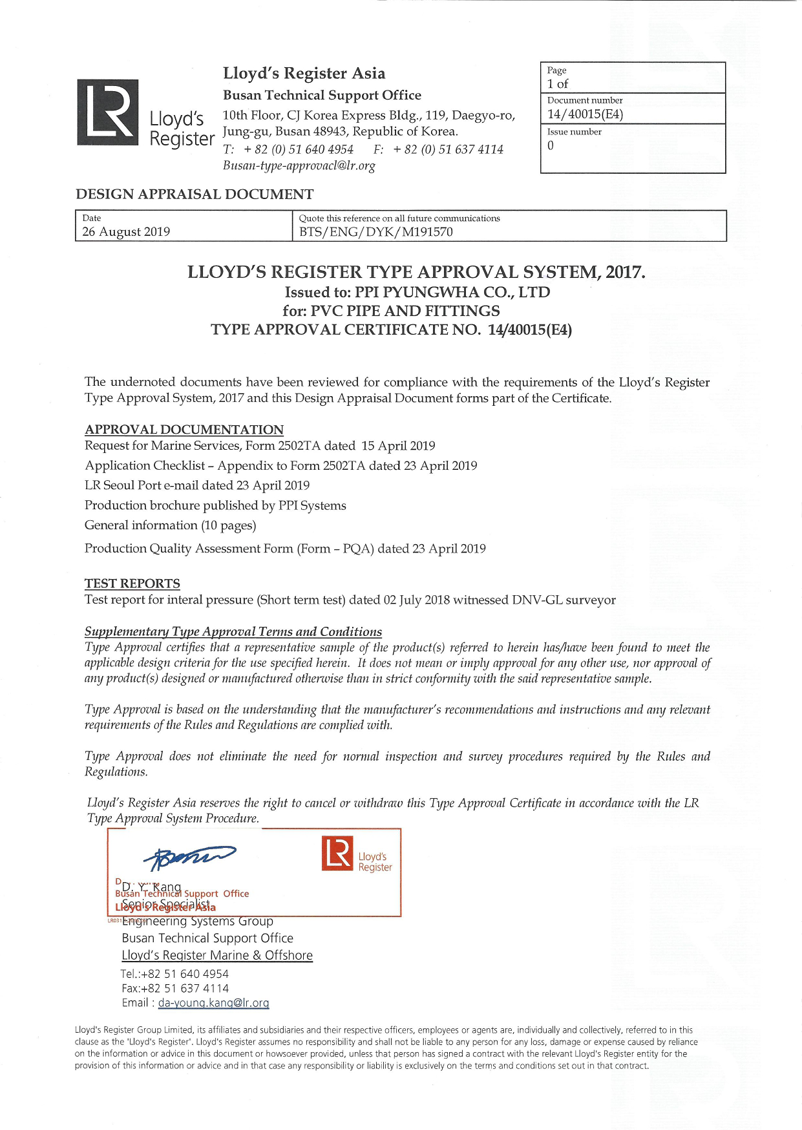

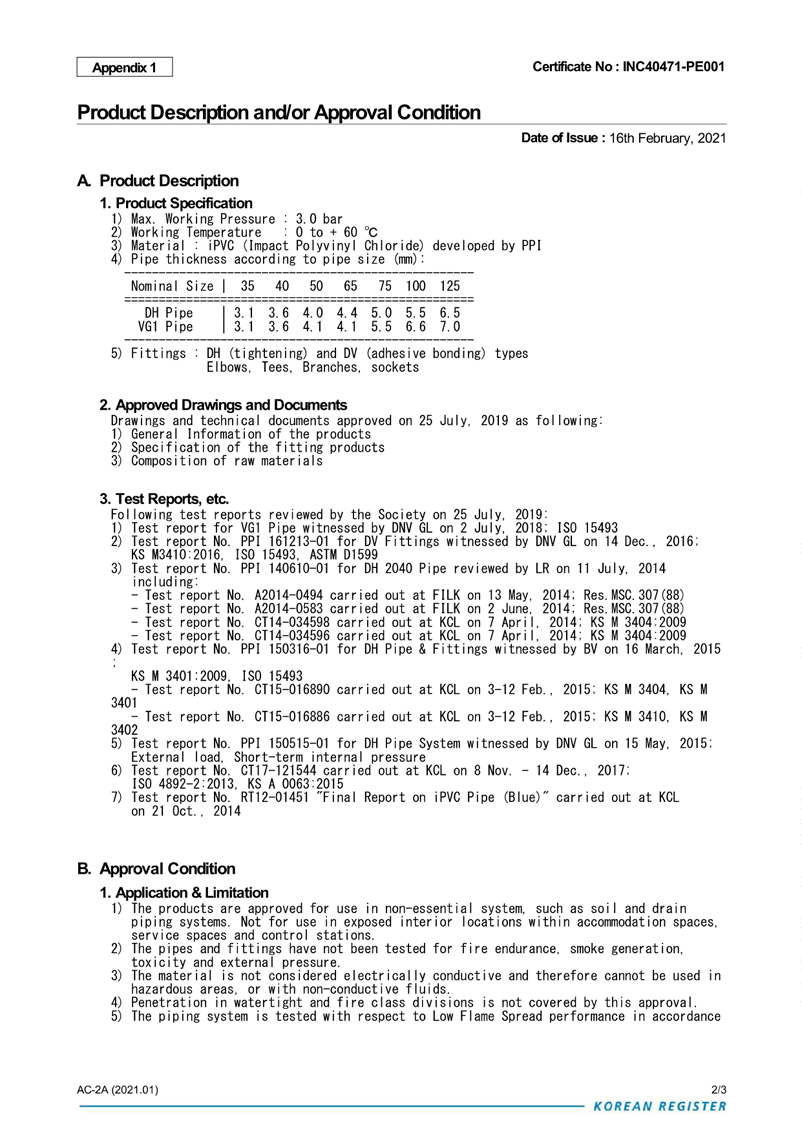

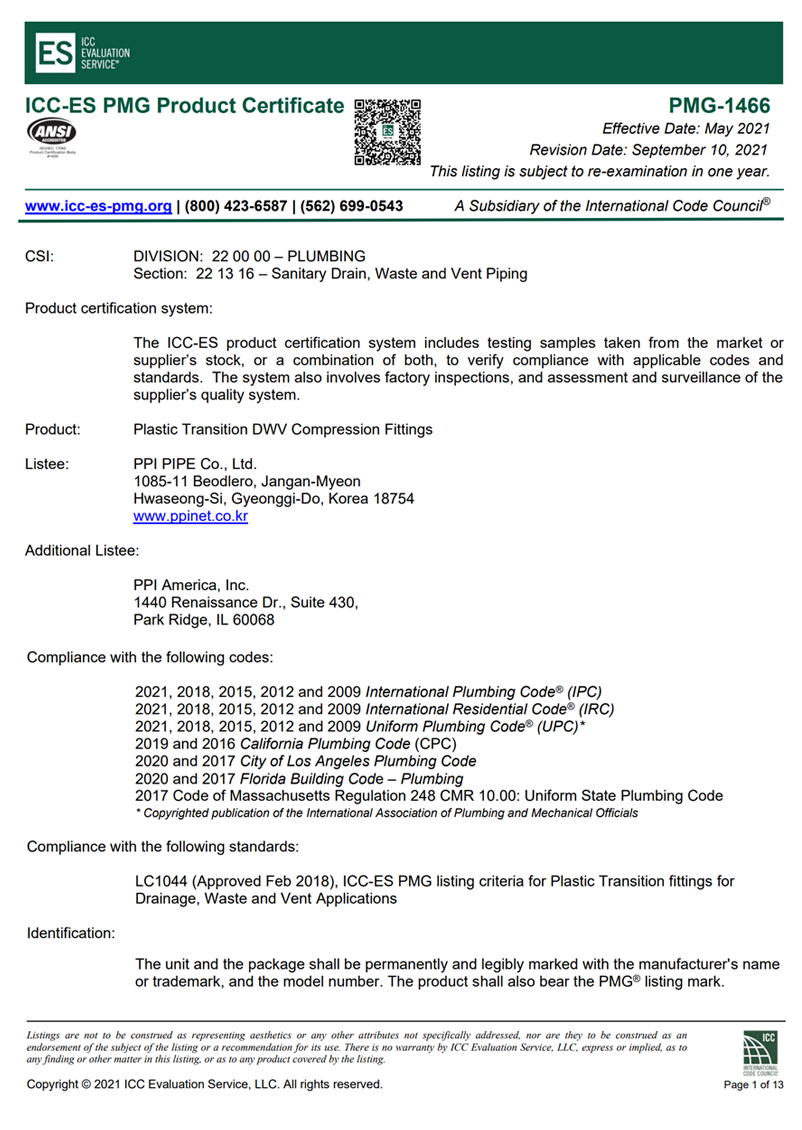

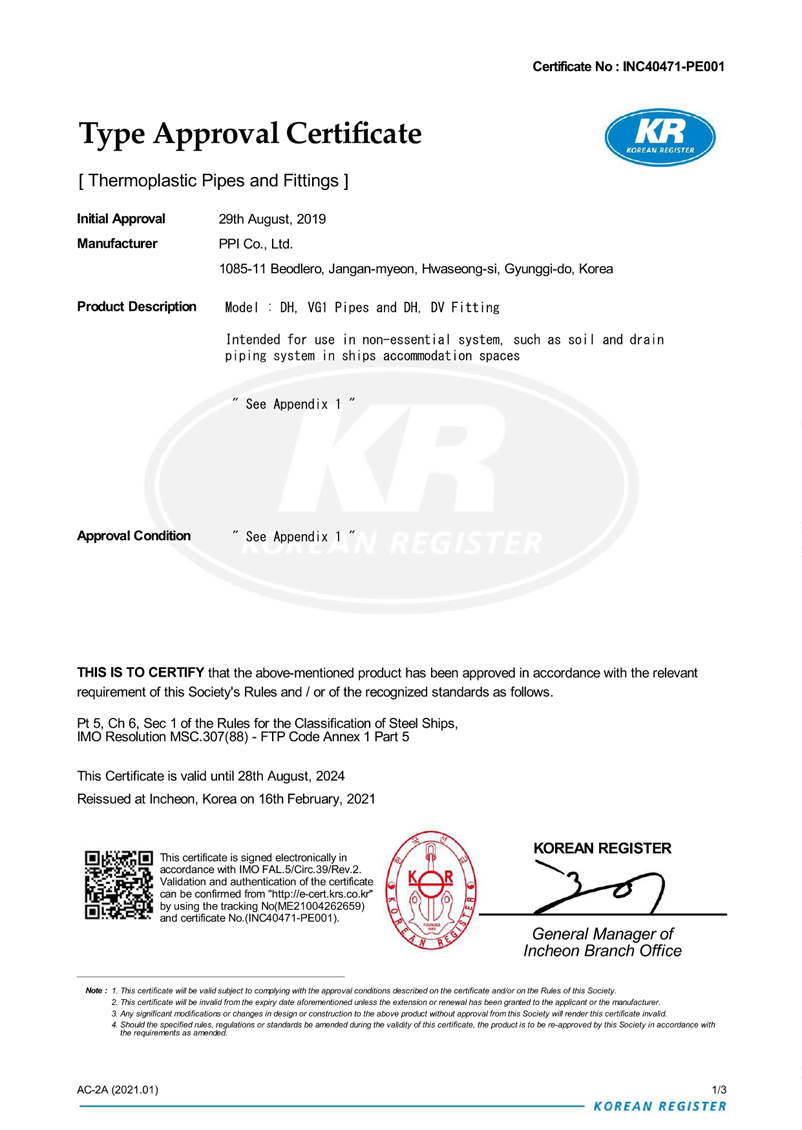

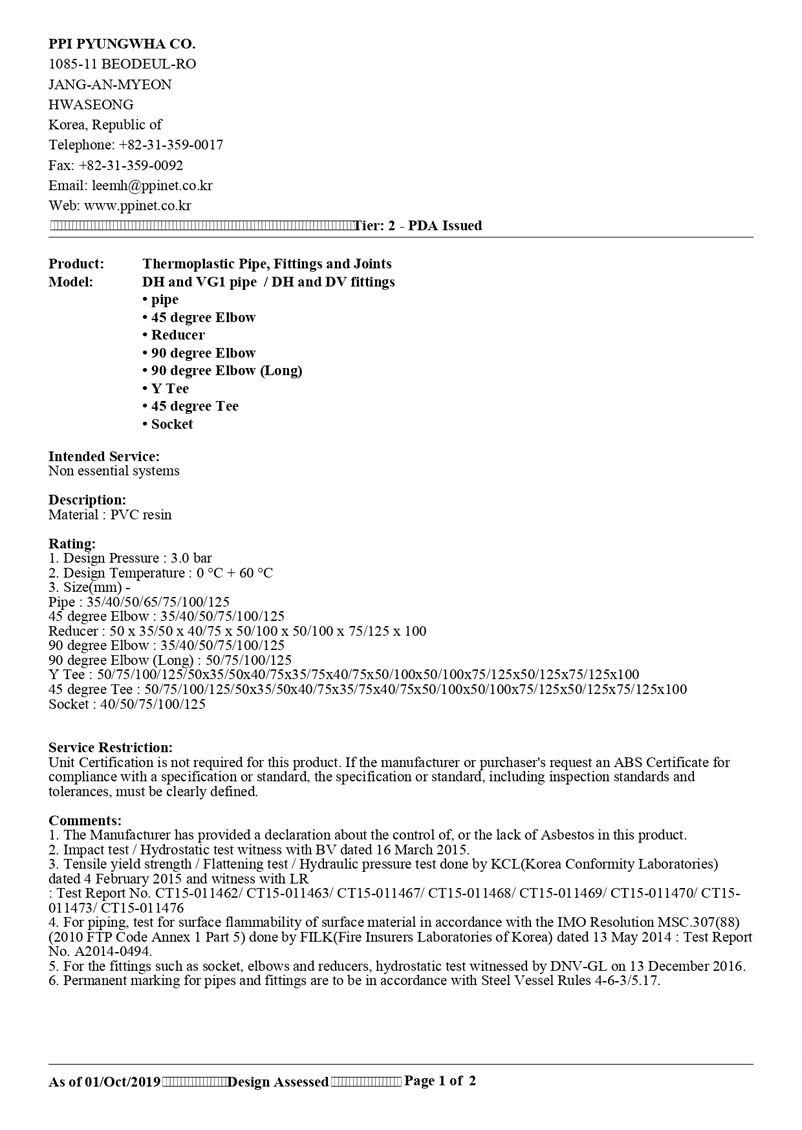

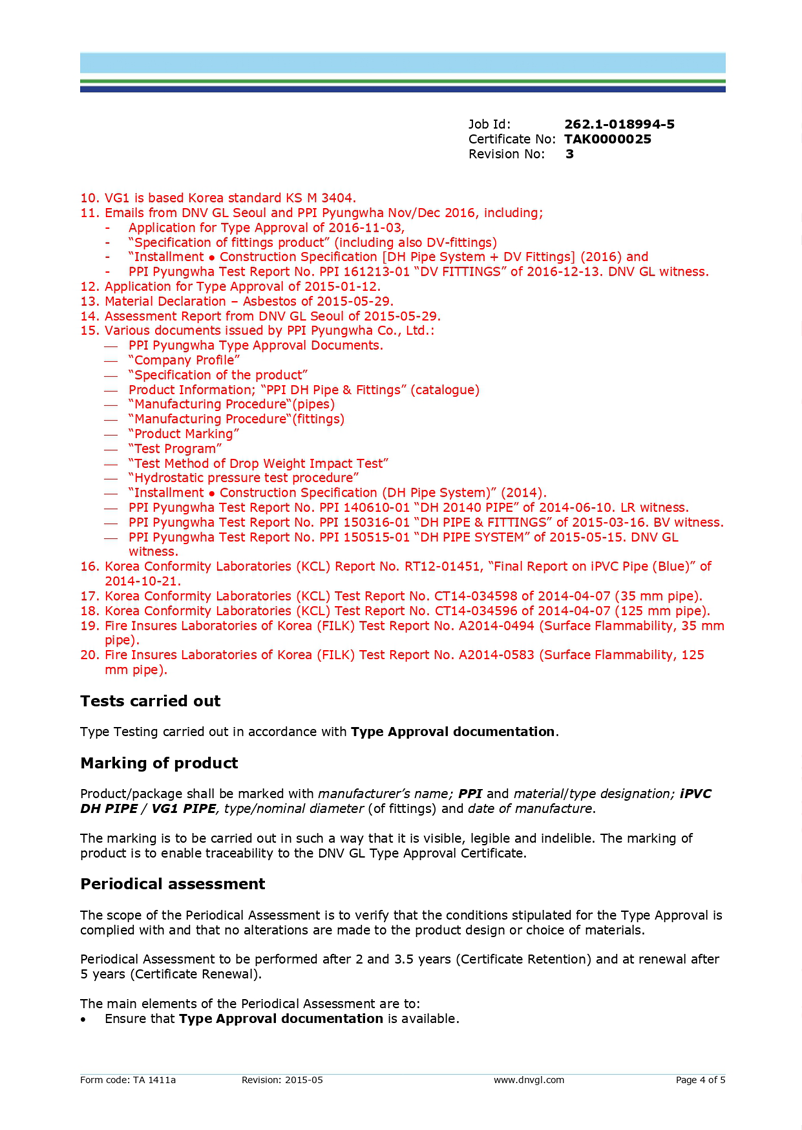

Certificates

Click the certificate to see a detailed description
