iPVC Fitting

  • Certified by NSF for Certified by NSF for PC 305
  • Surge reinforced design that prevents deformation
    and damage of fittings
Application
  • • Waterworks
  • • Plant
  • • Sump Pump
  • • Firefighting

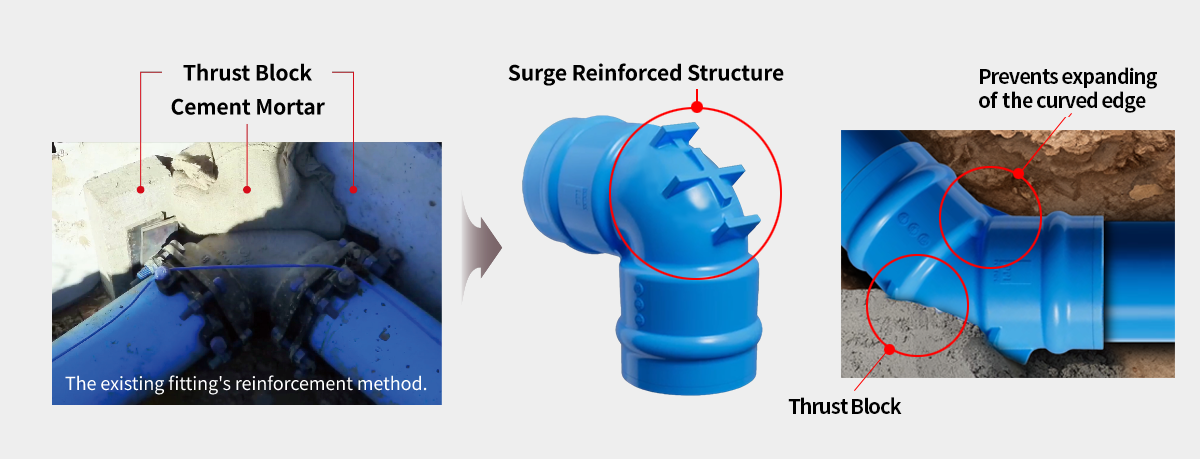

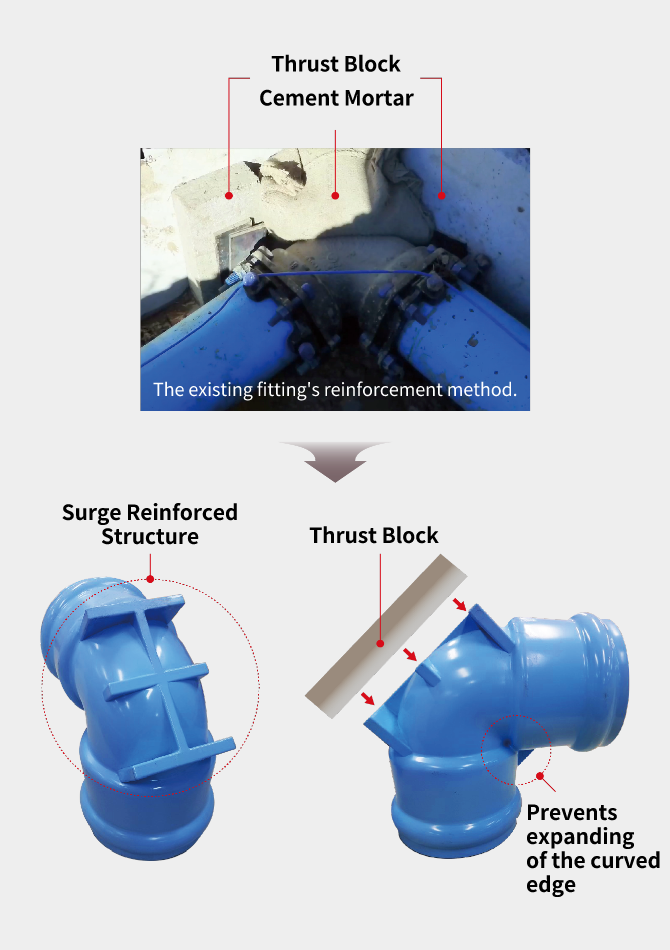

Surge Reinforced Design

The fittings consists of a 王 shaped structure in its curvature, allowing it to cohere to the thrust block.
Easy to install and Prevent the pipe damage from surge

Design Design

Certification of National Sanitation Foundation(NSF)

글로벌 위생재단 NSF 인증
  • - The products are collected randomly 3 times each year for testing
  • - Certification is revoked if the item quality is different than reported
  • - We provide a standardized quality assurance guarantee
    ...for the iPVC water pipe thru the NSF's continuous inspections

iPVC Fitting's Properties

Pressure Class 305

iPVC Fitting's Properties
Standard Test ongoing Test Specification Remarks
Barometric Test(498psi) 1,000 hr PASS UL 1285
Hydrostatic Test(470psi) No leak allowed PASS UL 1285
5 Sec Hydrostatic burst Test
(791psi)
20↑ 28 UL 1285
Installation Test No damage allowed PASS UL 1285
Tensile Test(psi) 7,000 7,330 ASTM D 638
izod Test (ft-lb/inch) 0.65 1.33 ASTM D 1784
Modulus of Elasticity(psi) 400,000 424,000 ASTM D 638
HDB(psi) 4,000 4,050 ASTM D 2837 2,000 hr
4,000 Test ongoing 10,000 hr

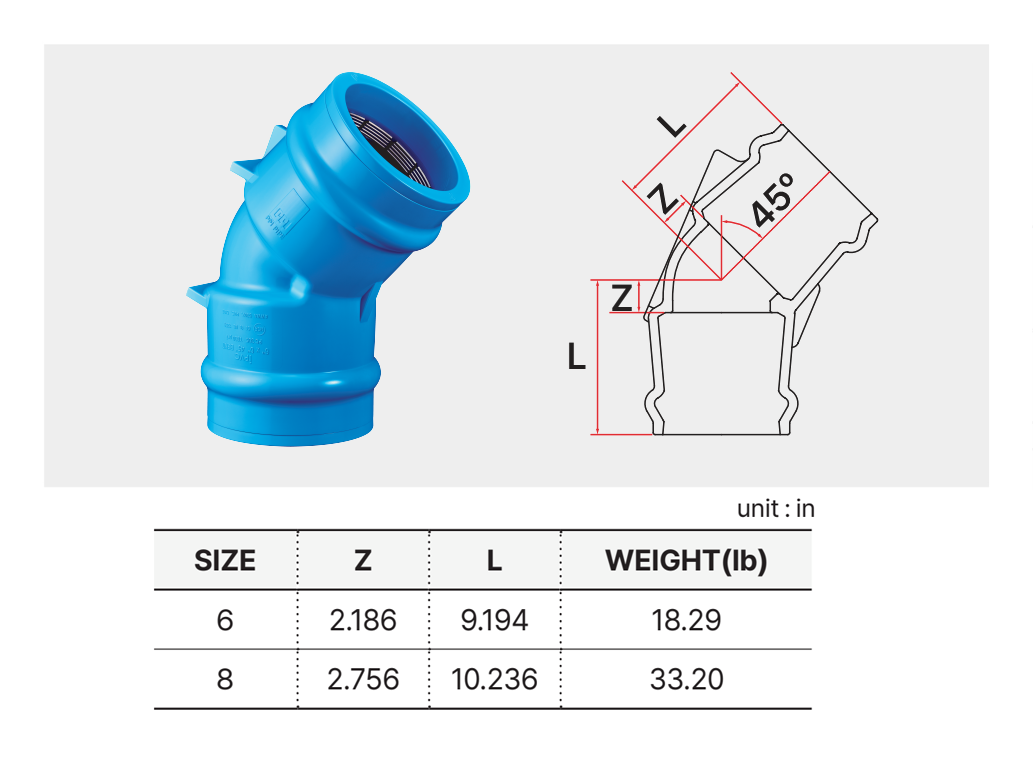

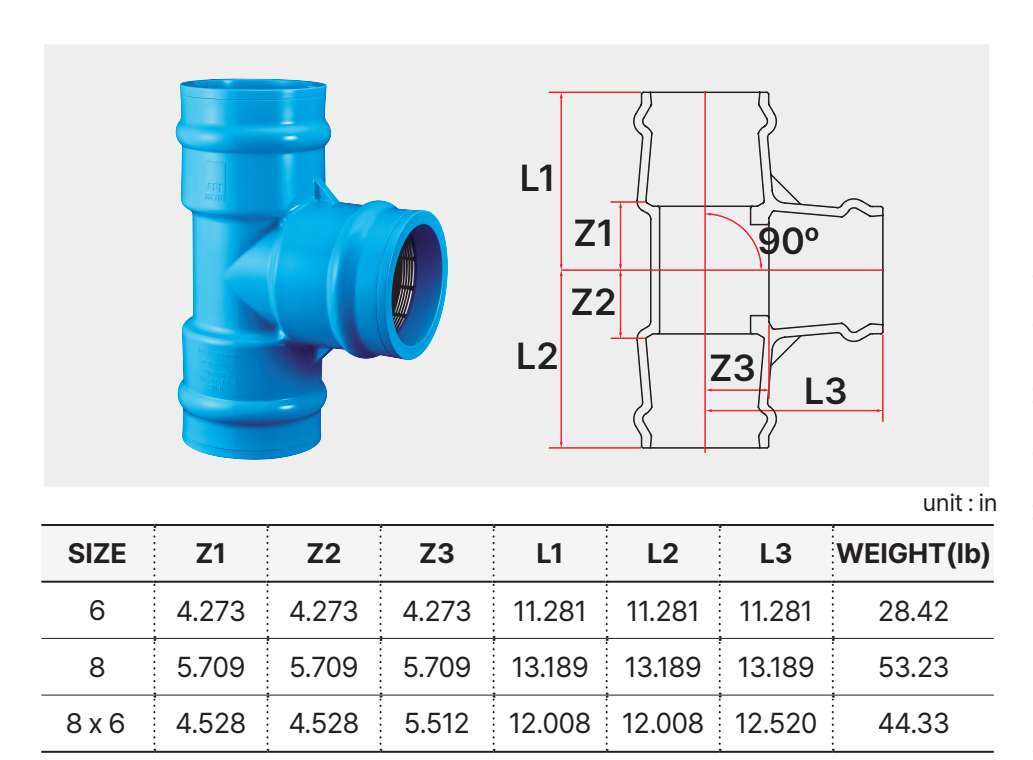

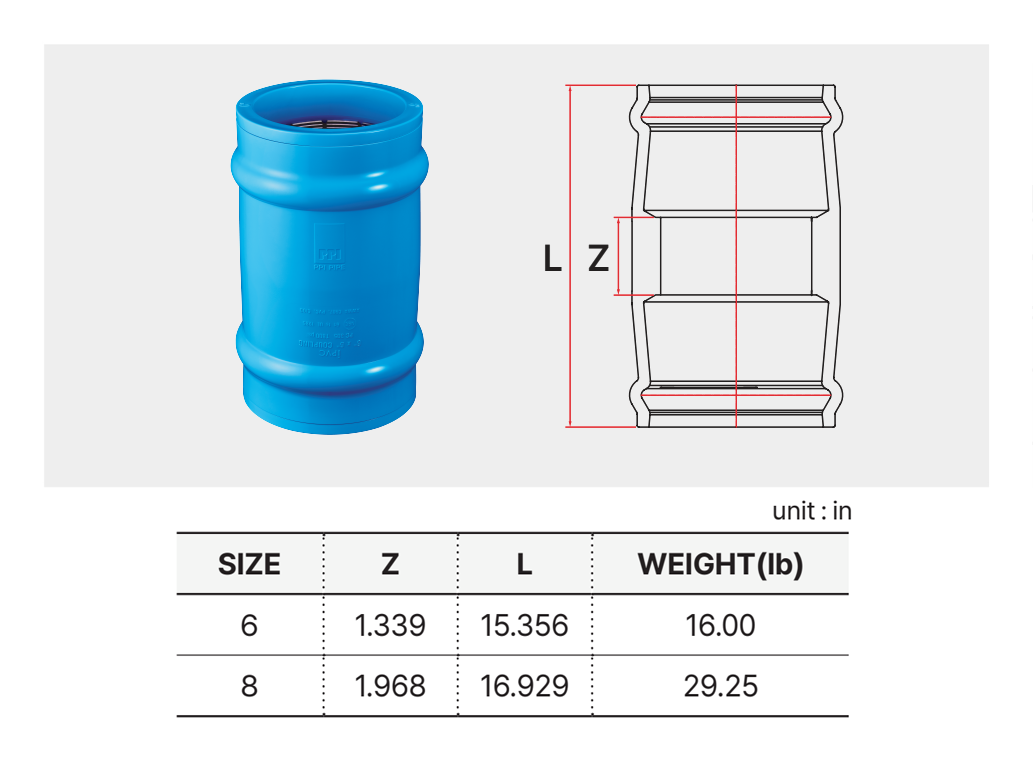

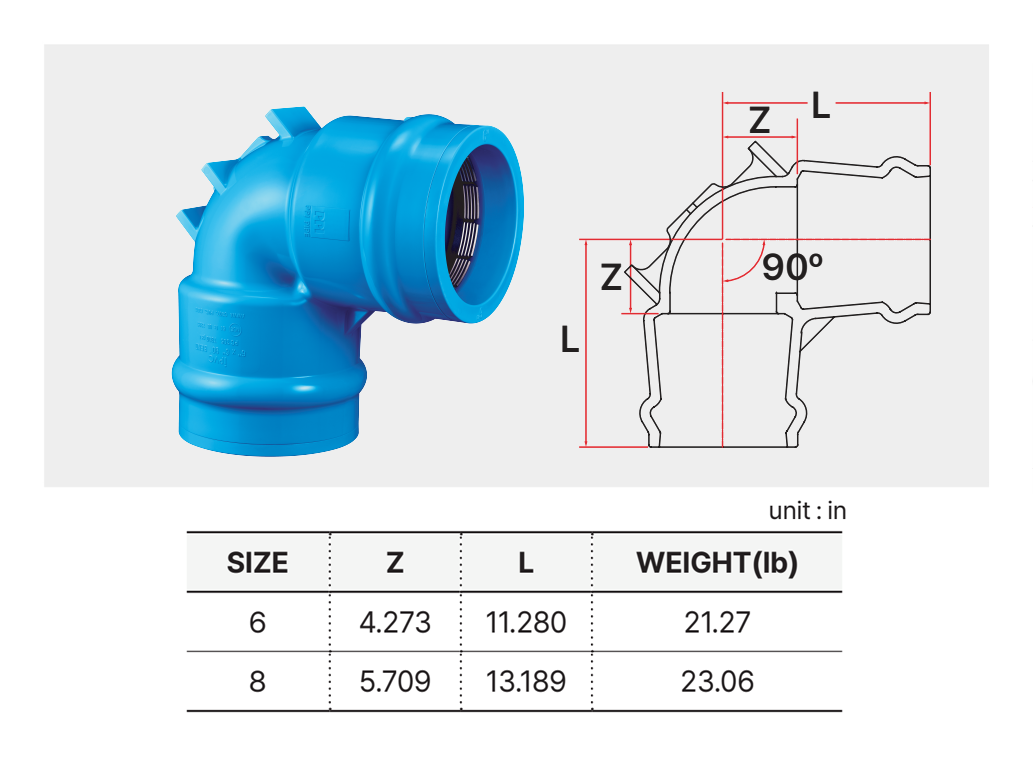

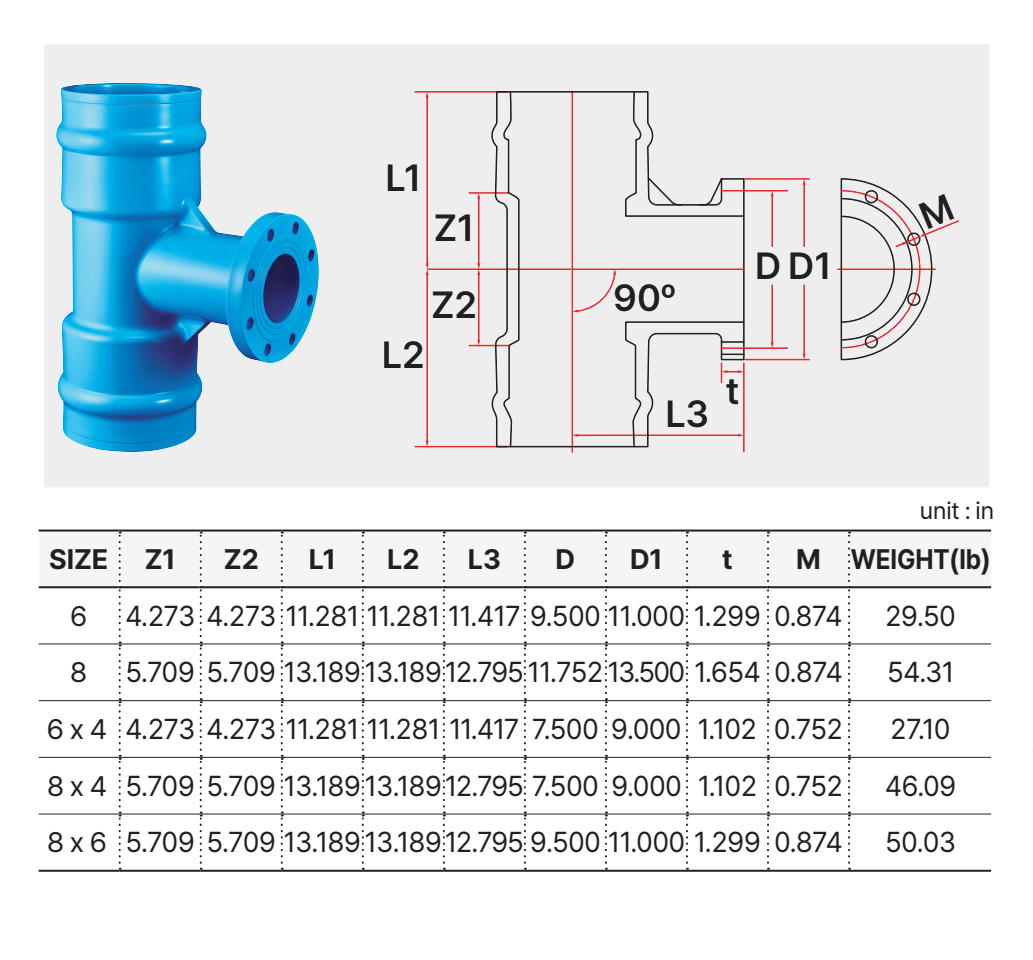

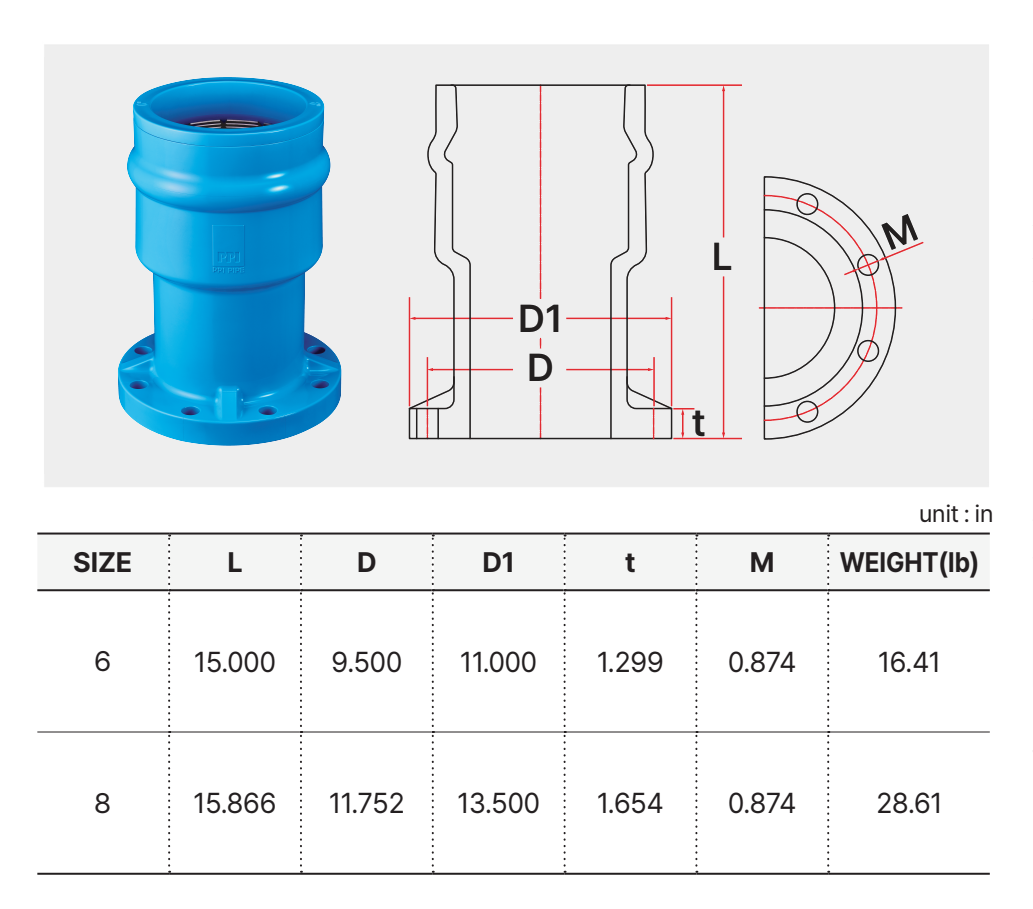

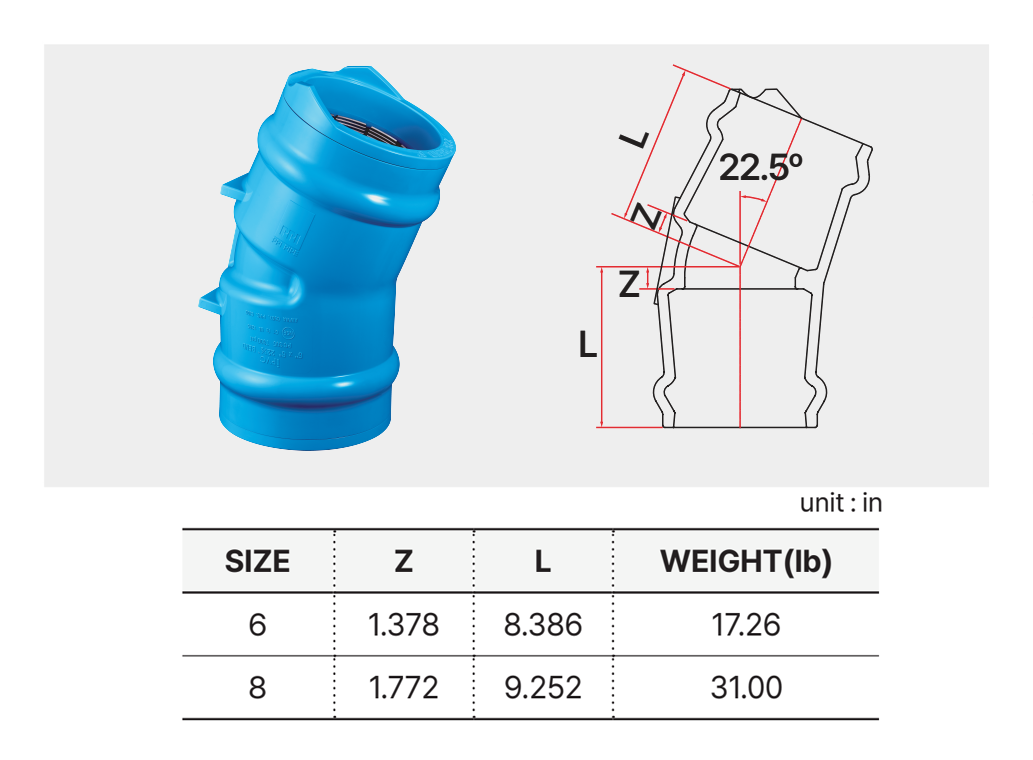

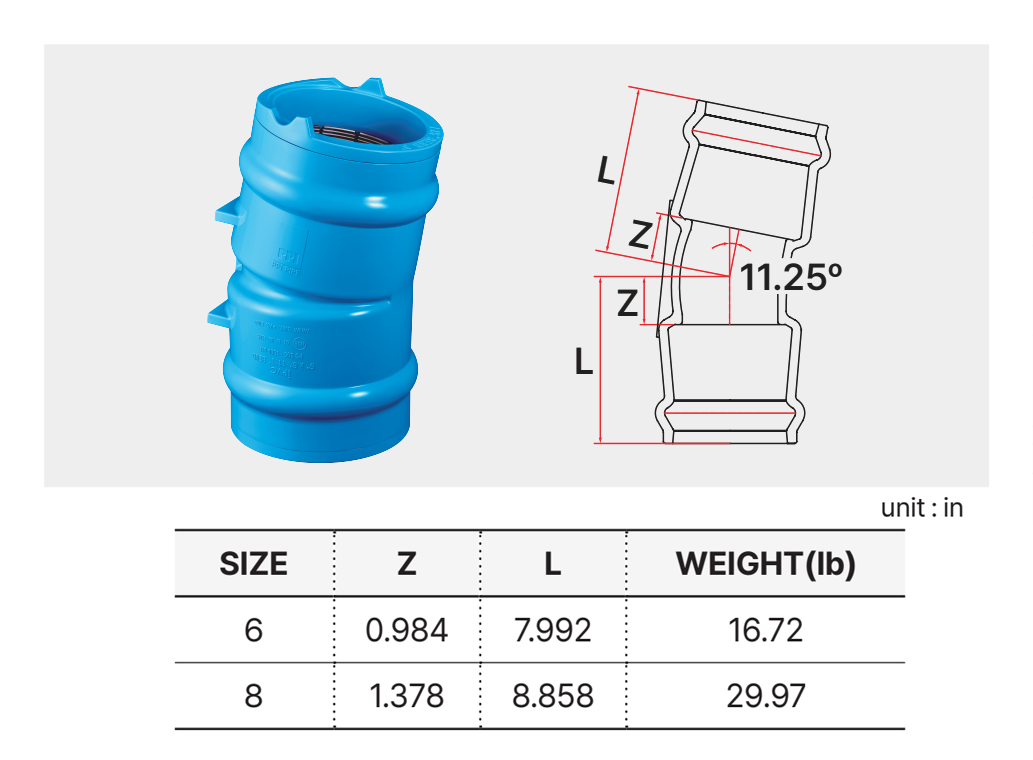

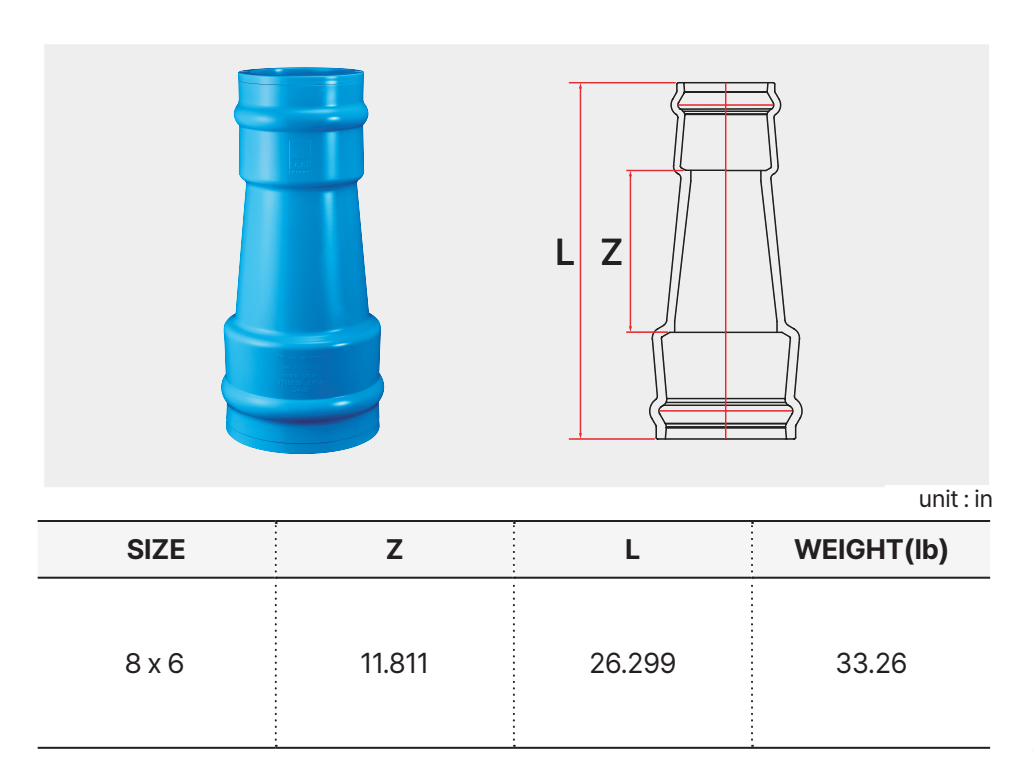

Fittings

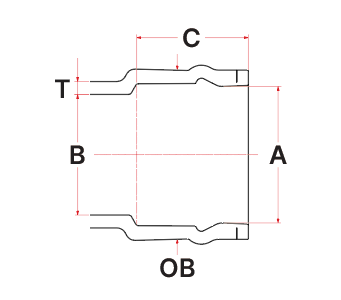

규격표 모식도

Unit : mm

Fittings table
Size D L
100 115 125
150 166 152
200 217 165
