DH 5.0 Fittings DH 5.0 Transparent
Fittings DH 5.0 Pipe

DH 5.0 Pipe

  • Resolves the issues of rust, corrosion, and
    galvanic corrosion in steel, cast iron, and
    stainless-steel pipes.

  • Sewage, rainwater, and drainage pipe for
    high-rise commercial or residential buildings
    and apartments
Catalog

DH 5.0 Pipe Properties

DH 5.0 Pipe Properties
Product Freeze Fracture
Resistance		 Impact
Strength		 Tensile
Strength		 Softening
Temperature
DH 5.0 Pipe -20℃ / 100h 2m / 9kg 50MPa 82℃
Existing Products - - 45MPa 76℃

Semi-Permanent Use

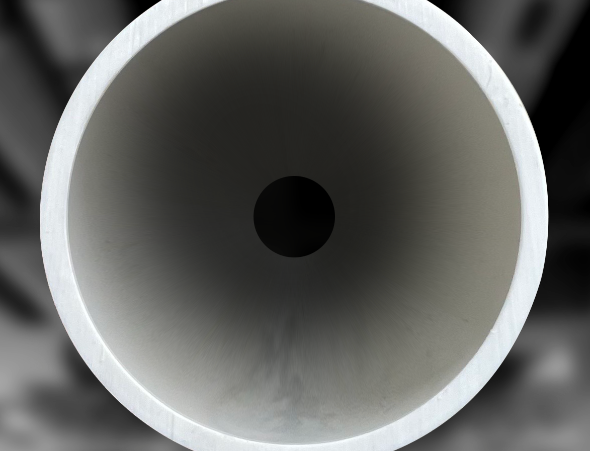

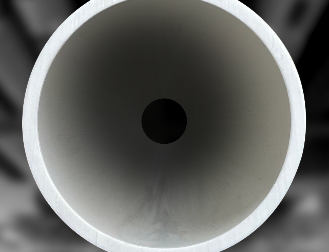

    DH Pipe DH Pipe

    DH Pipe

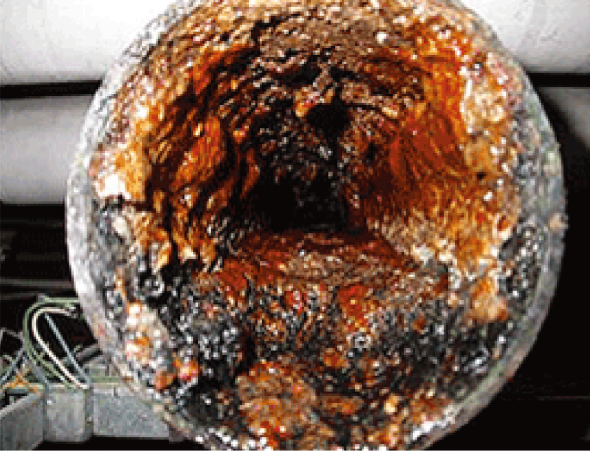

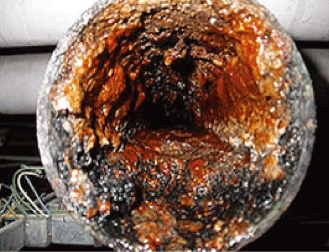

    Cast iron pipes Cast iron pipes

    Cast iron pipes

6 Certifications

Pass all requirements of DWV pipe for shipbuilding

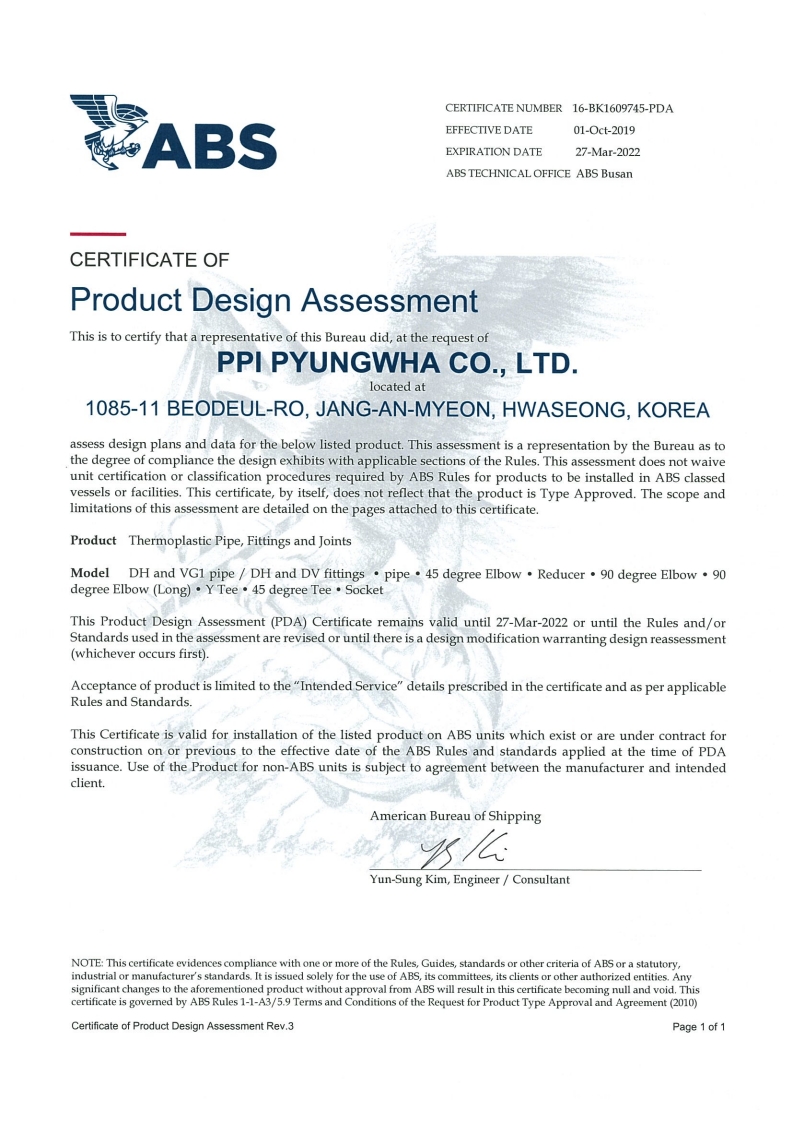

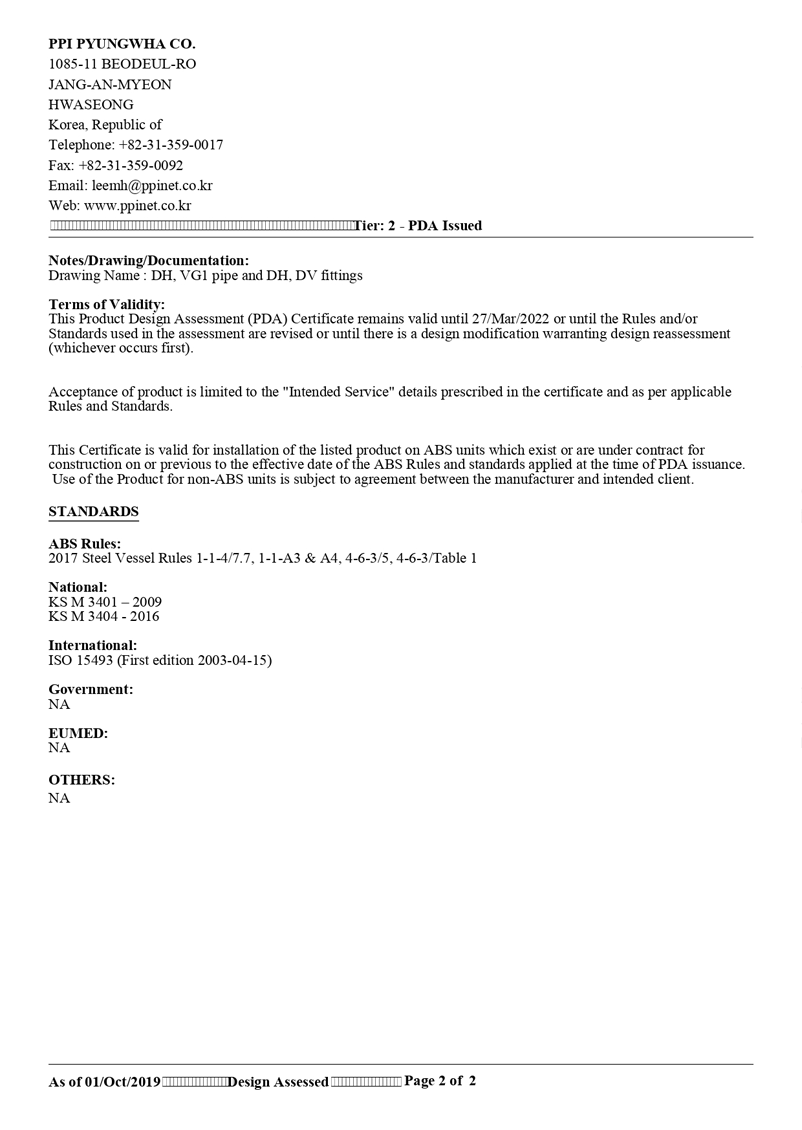

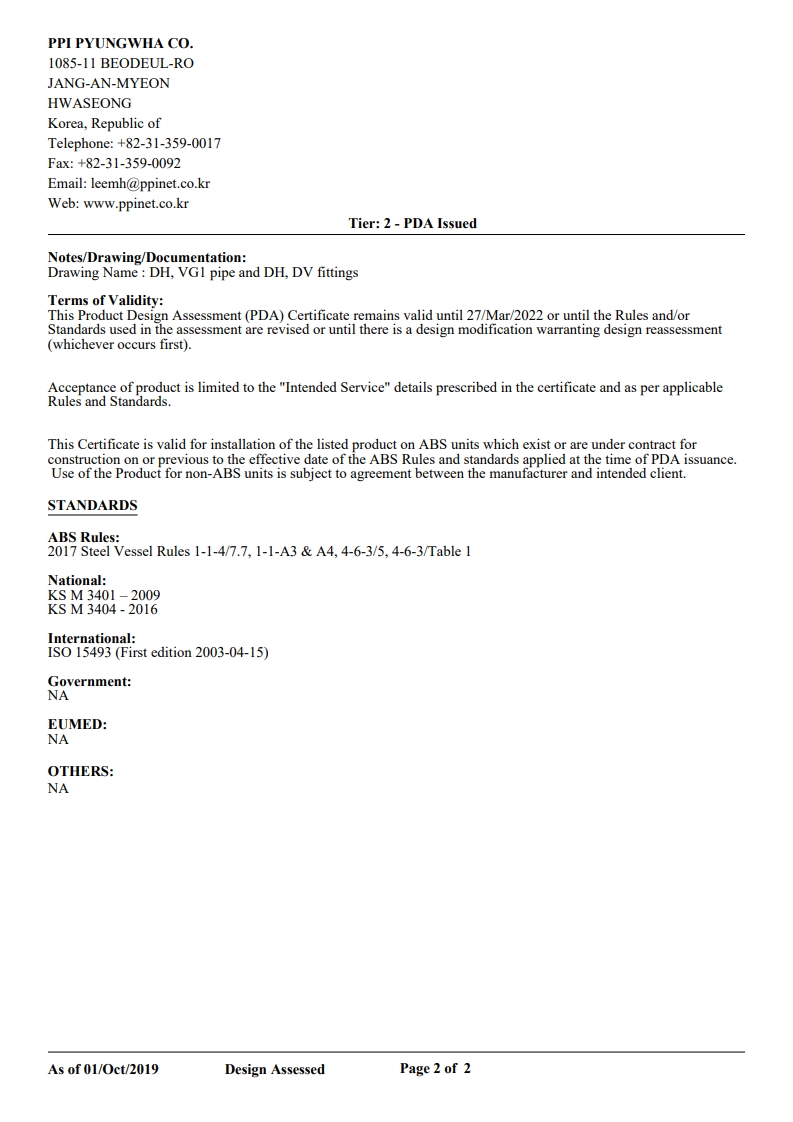

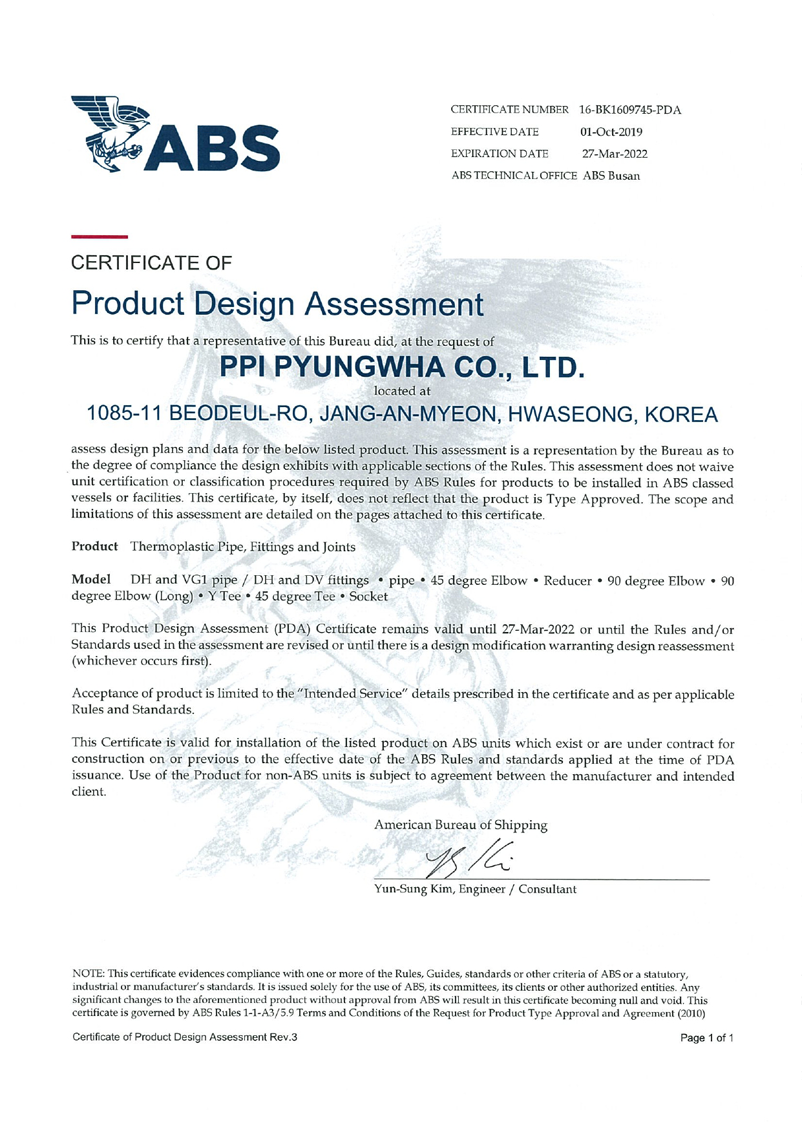

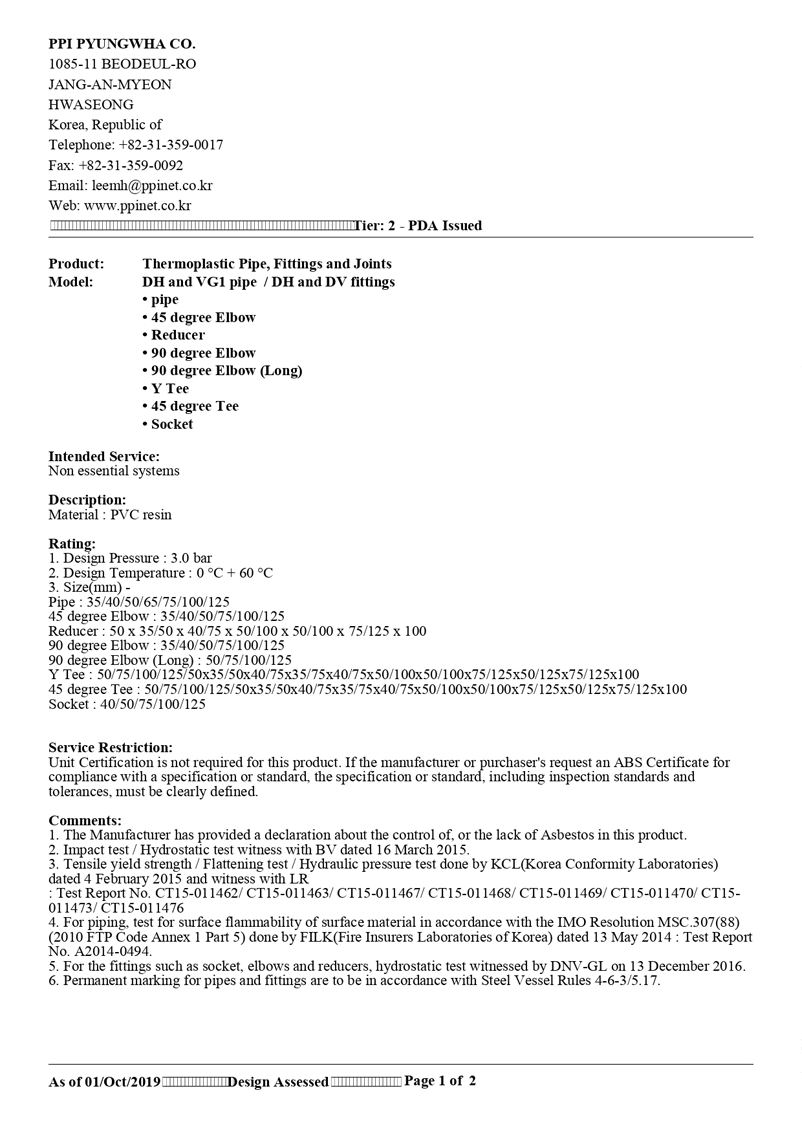

  • ABS
    (US)

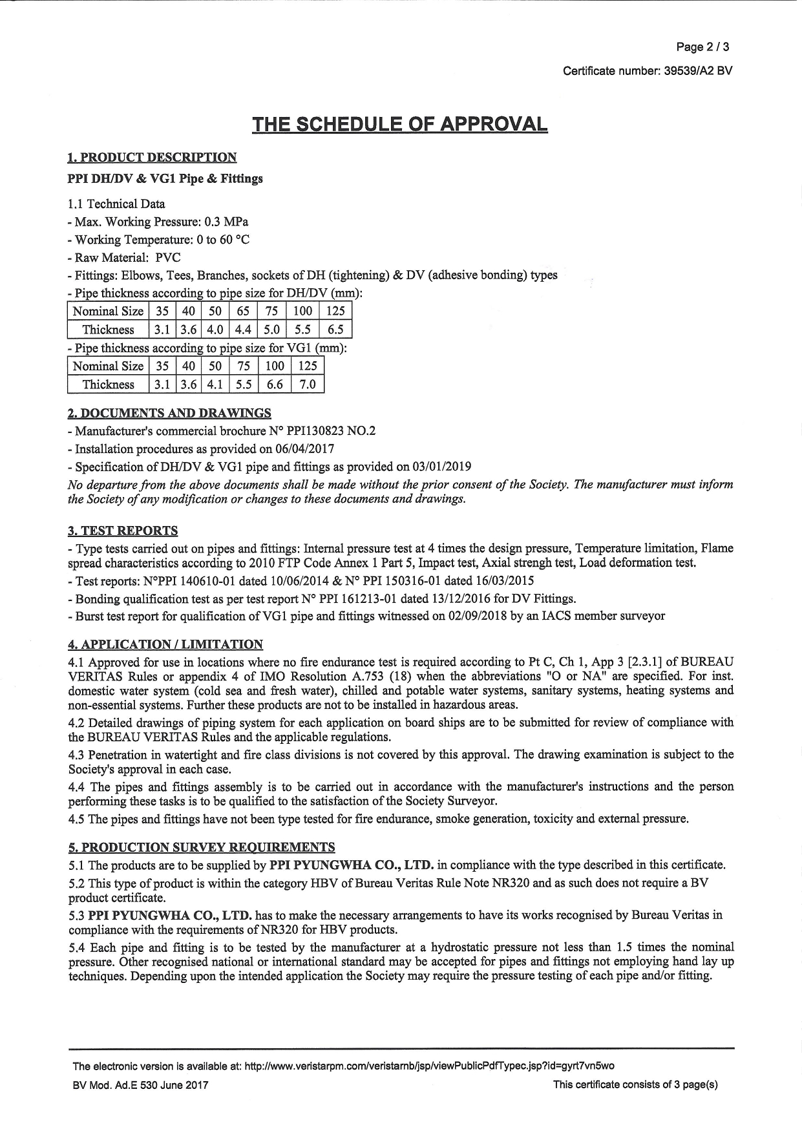

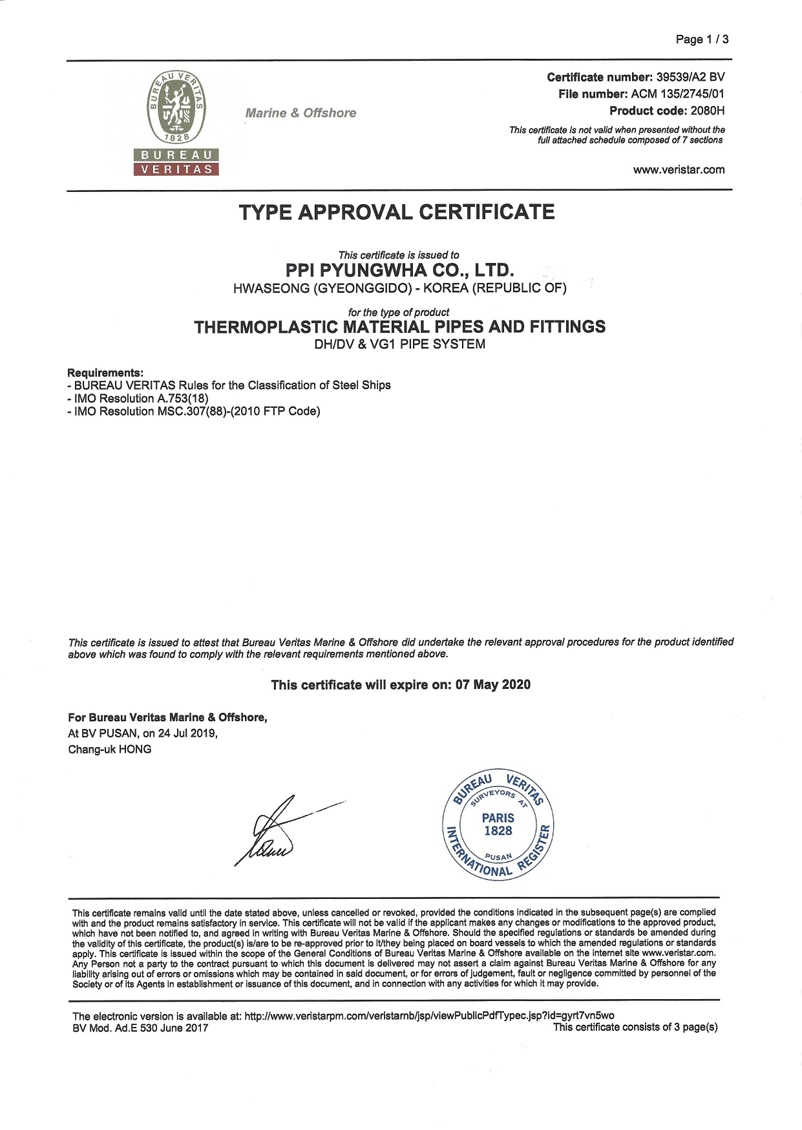

  • BV
    (France)

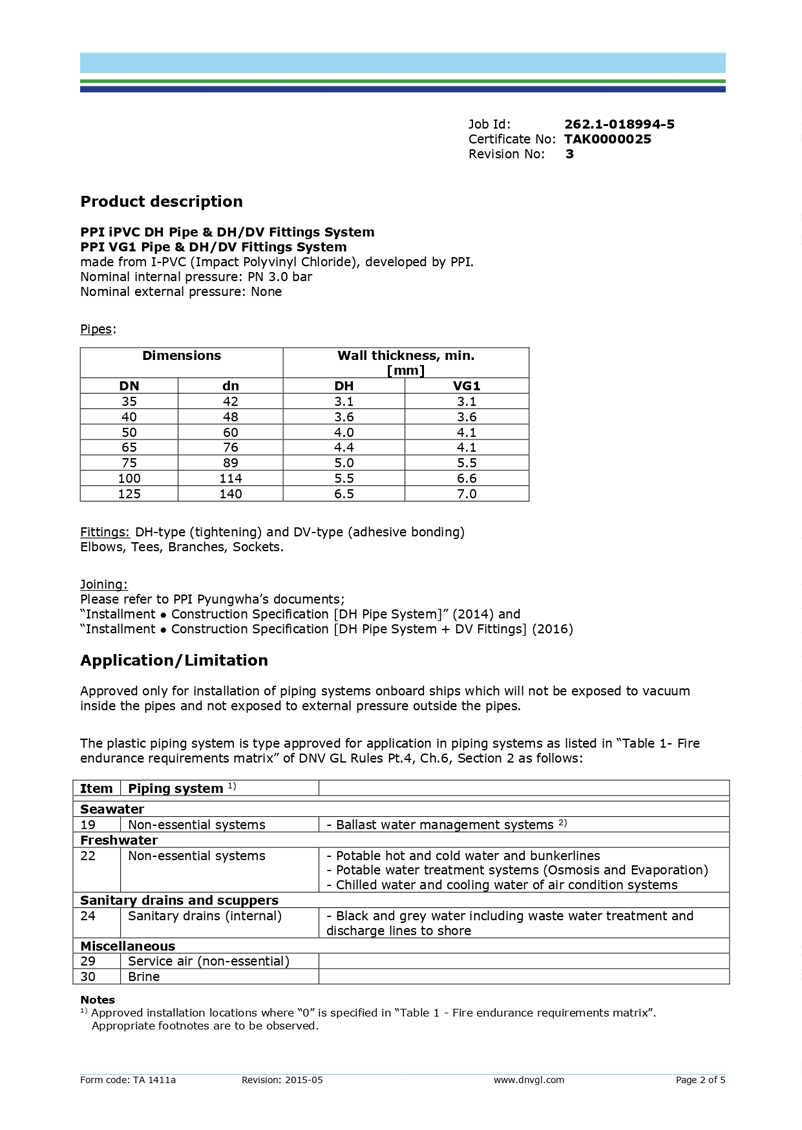

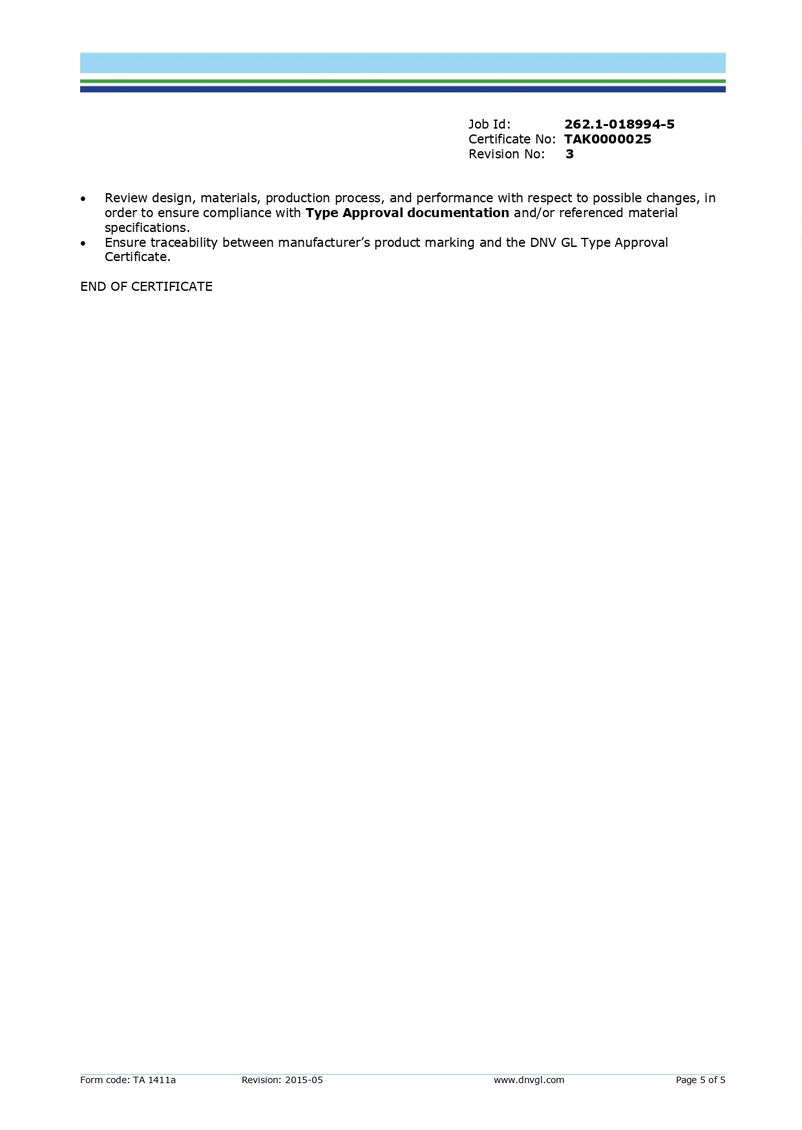

  • DNV
    (Norway)

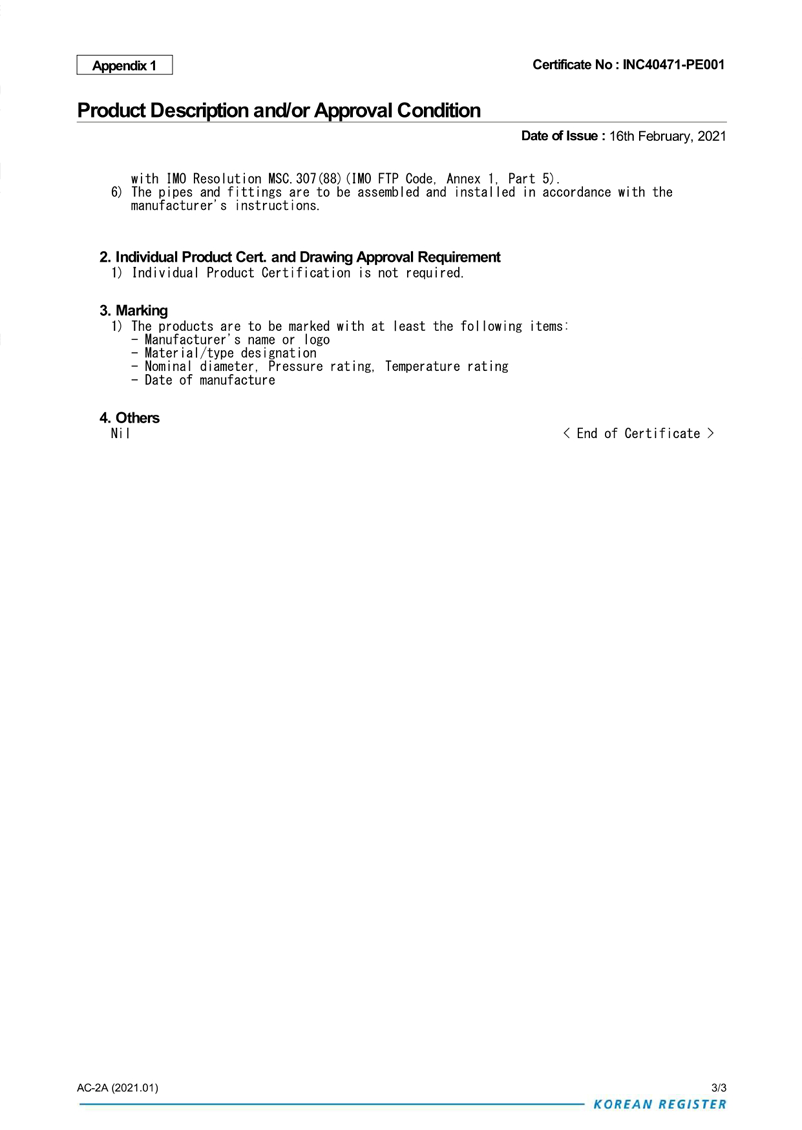

  • KR
    (Korea)

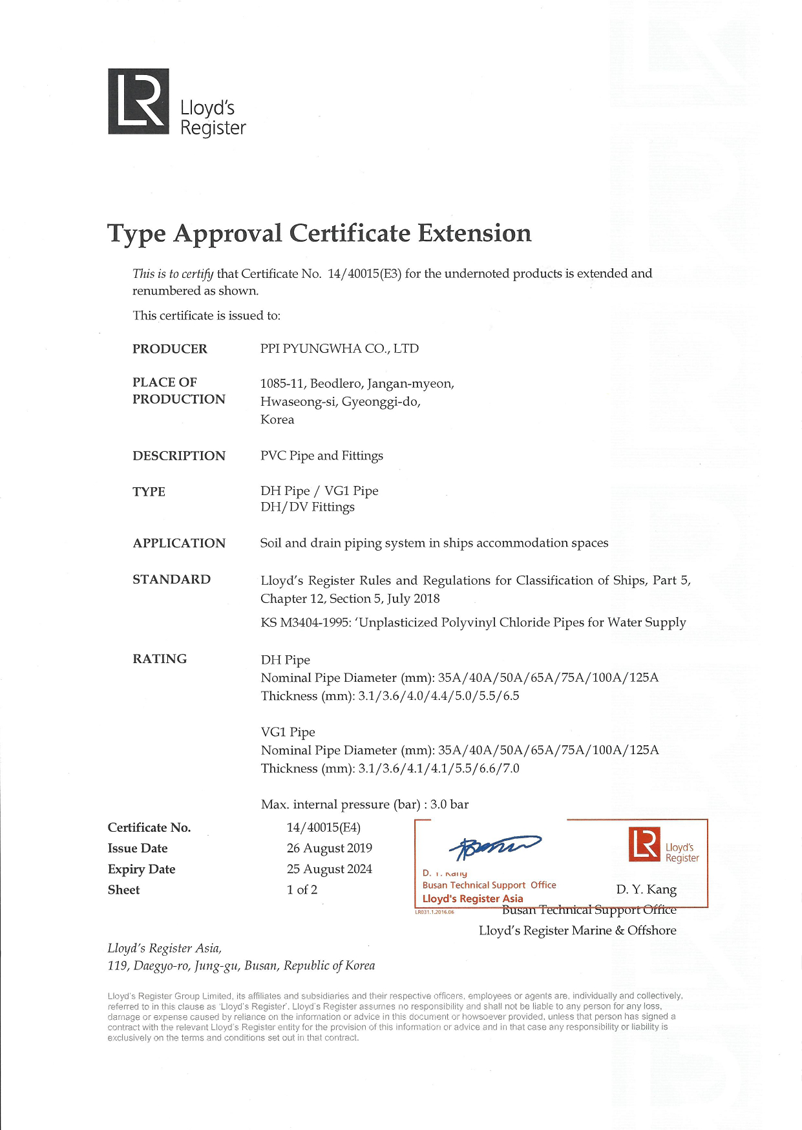

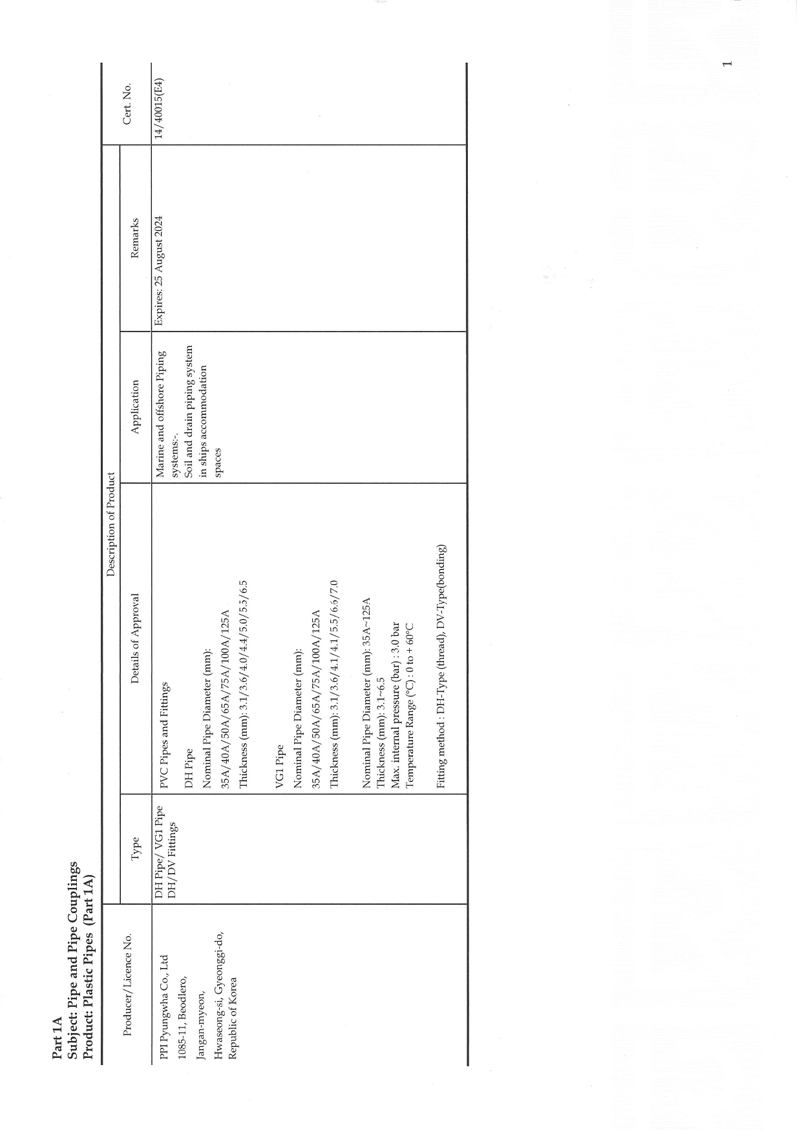

  • LR
    (UK)

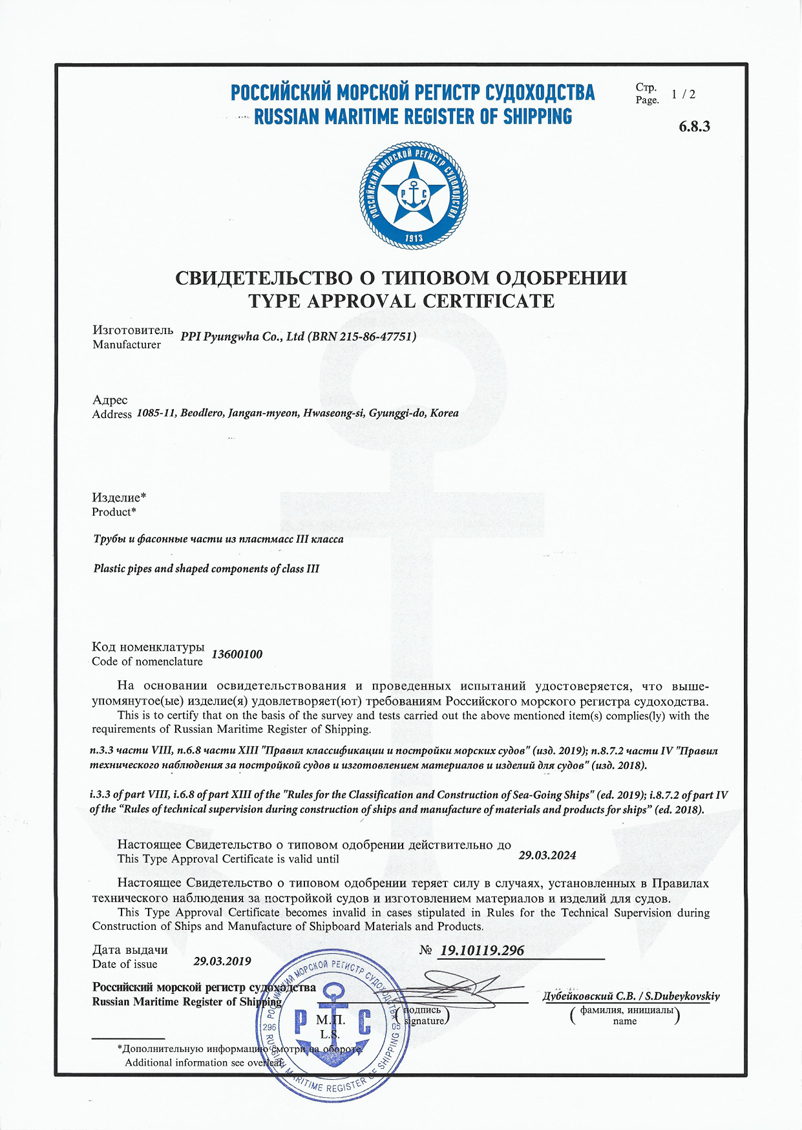

  • RMRS
    (Russia)

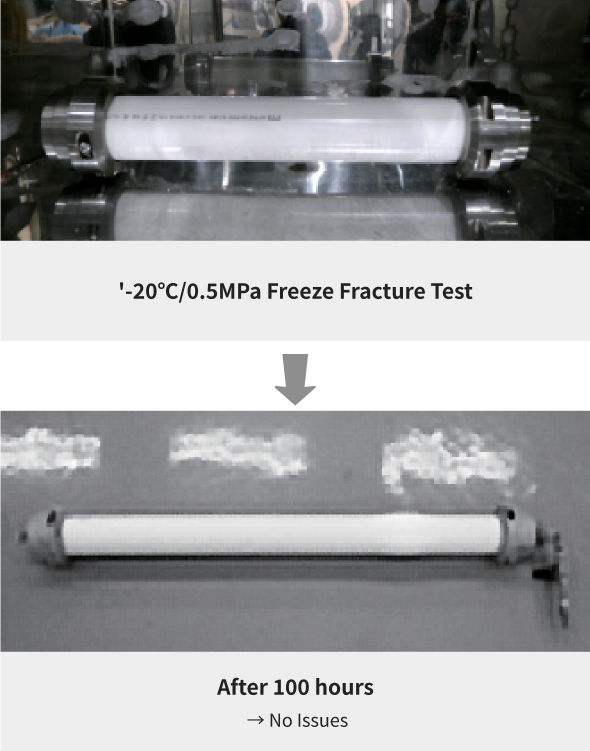

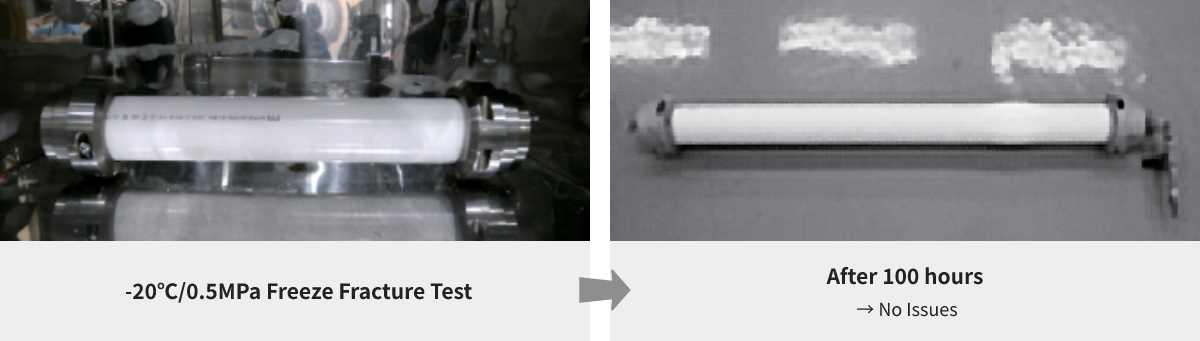

Impressive Freeze Fracture Resistance

'-20℃/0.5MPa Freeze Fracture Test => After 100 hours→No Issues '-20℃/0.5MPa Freeze Fracture Test => After 100 hours→No Issues

Pipe

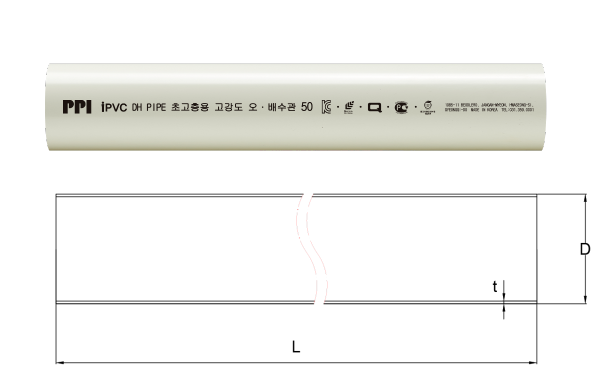

규격표 모식도 규격표 모식도

Unit : IN

Size D
(Min.)		 t d
(Min.)
1½" 1.890 0.142 1.575
2" 2.362 0.157 2.047
3" 3.504 0.197 3.110
4" 4.488 0.217 4.055

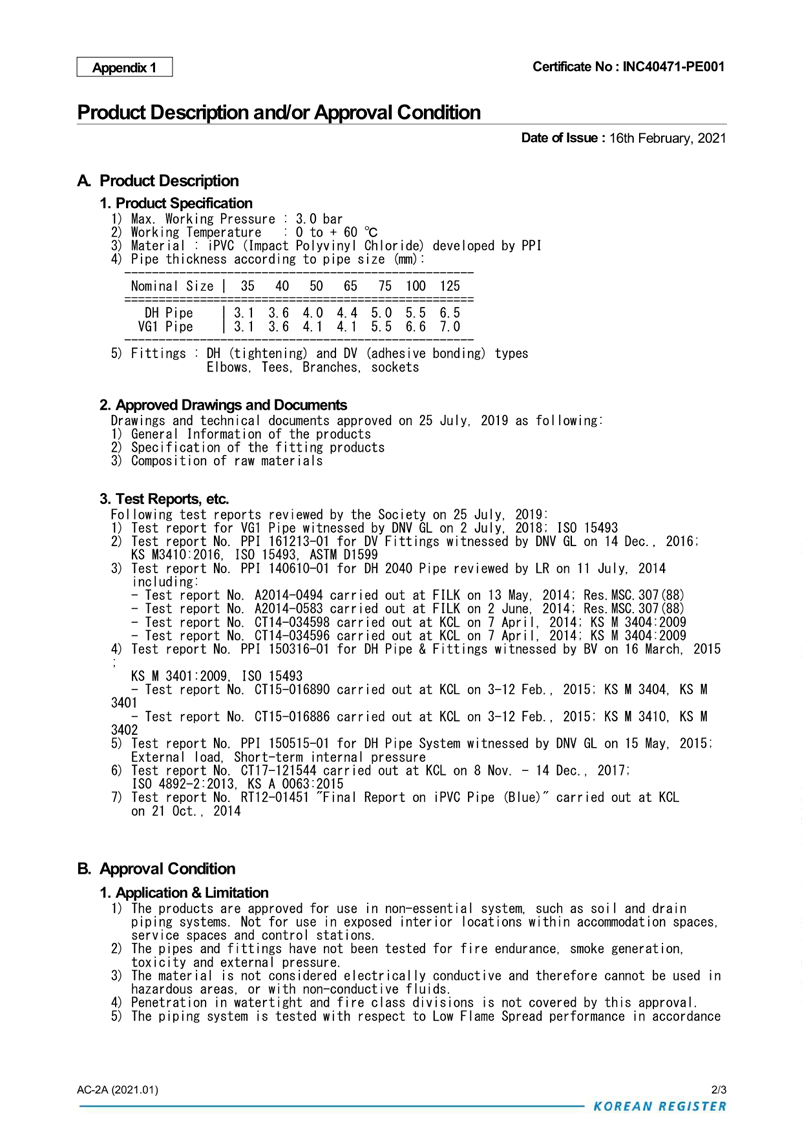

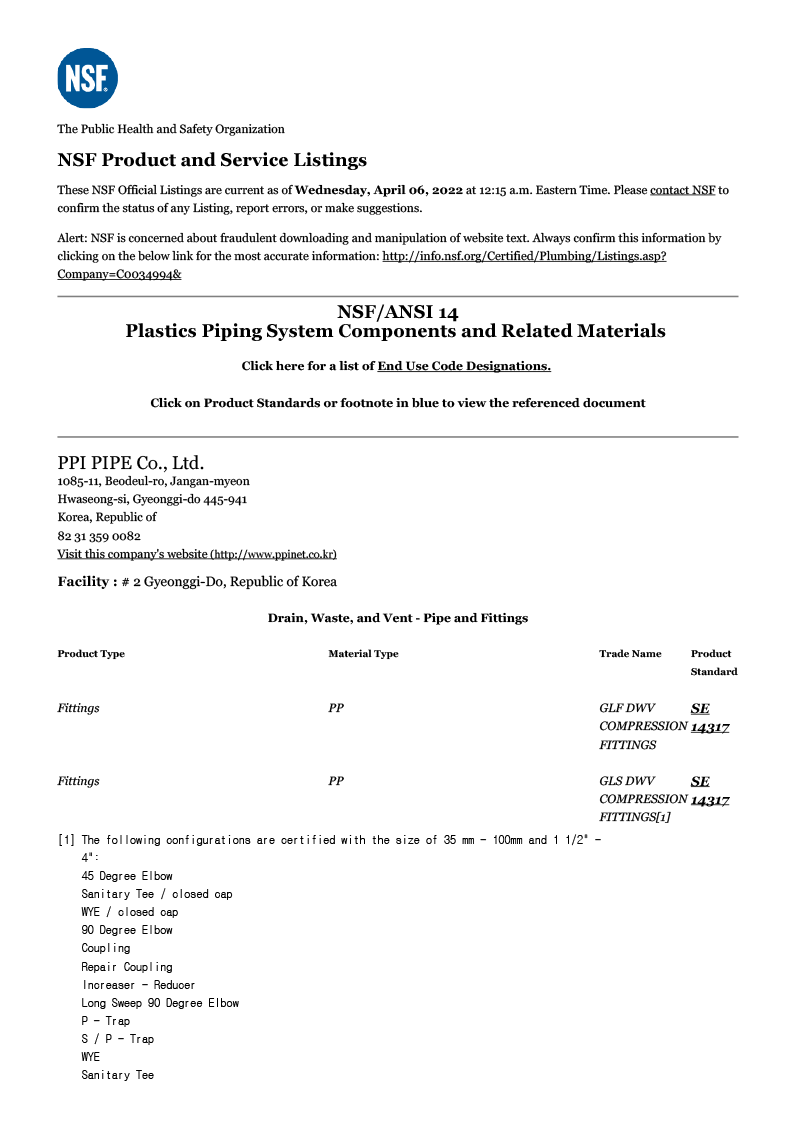

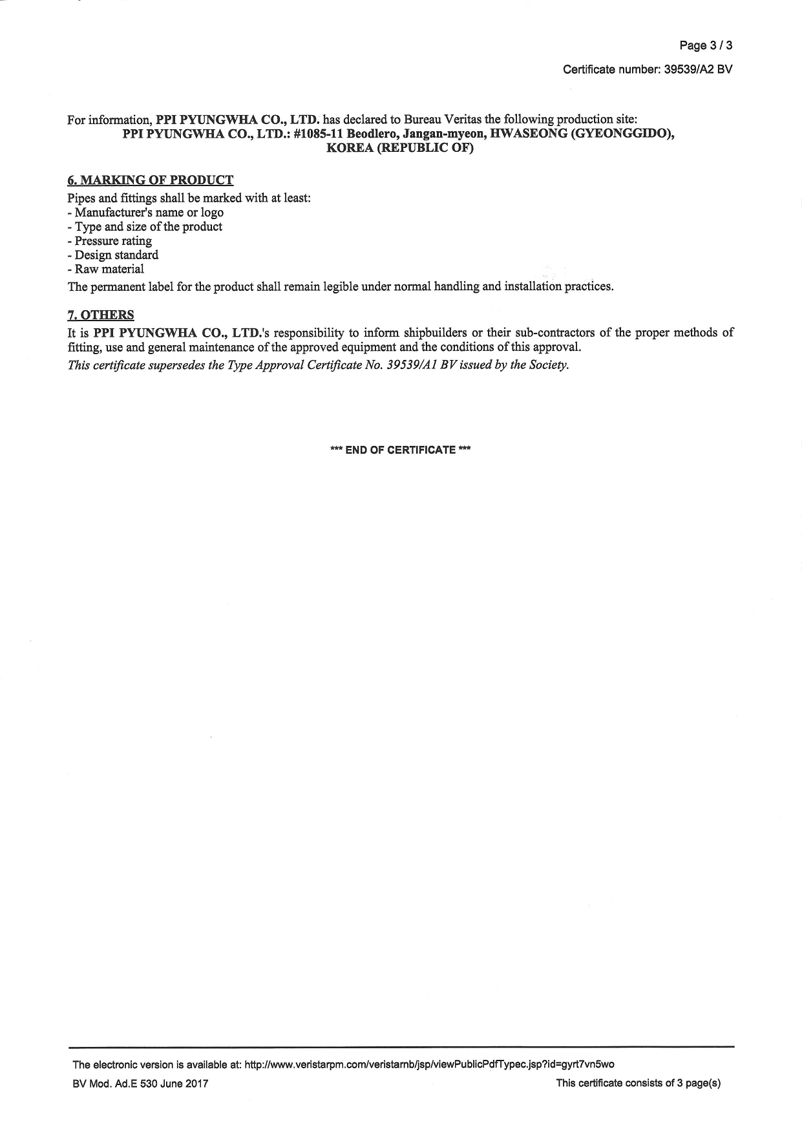

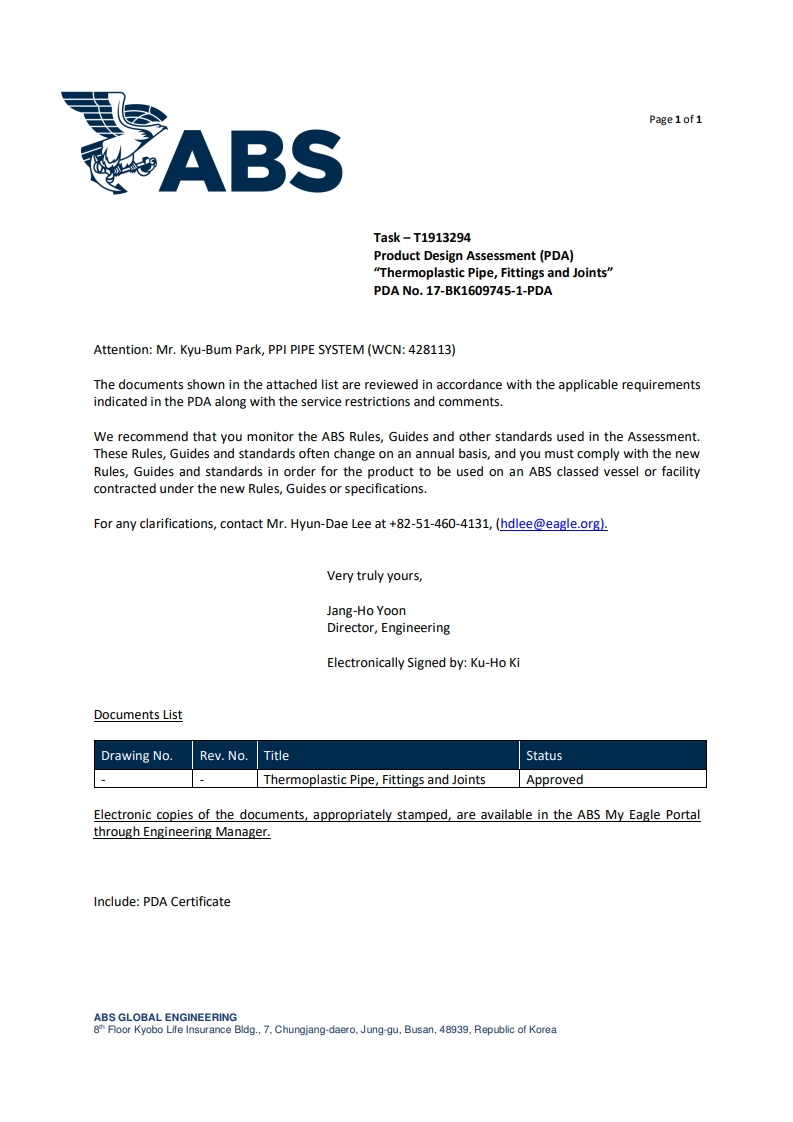

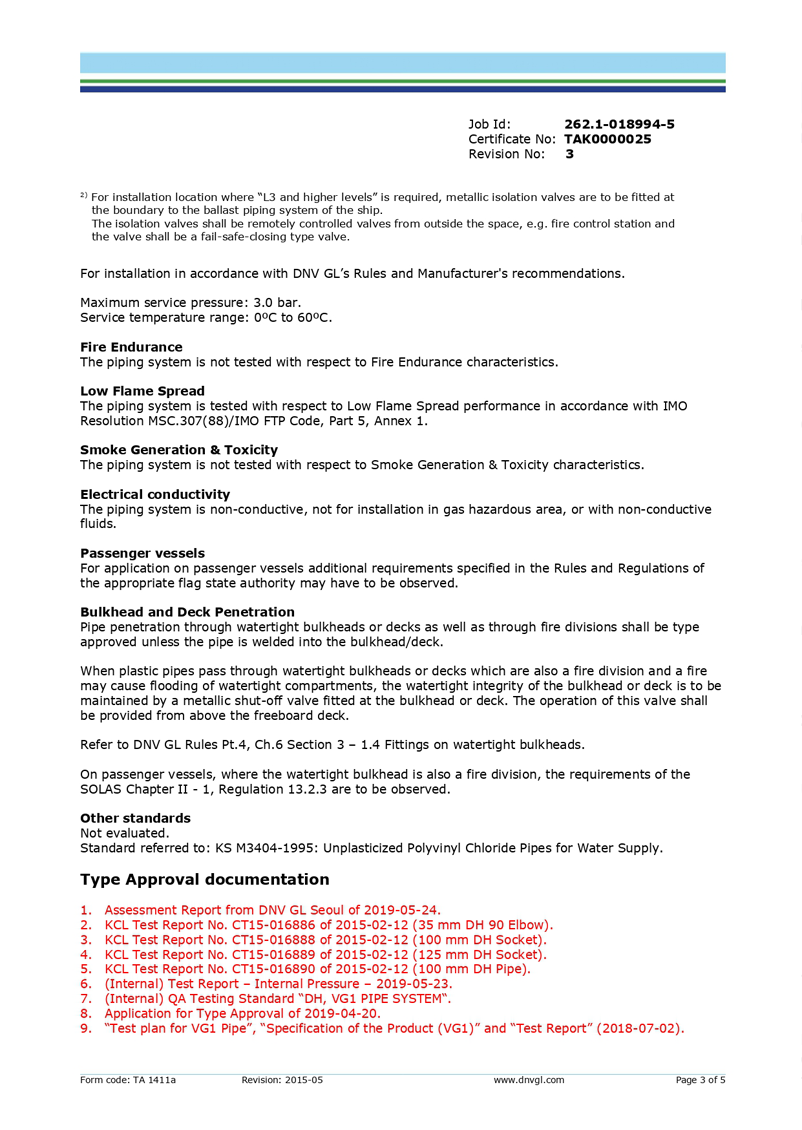

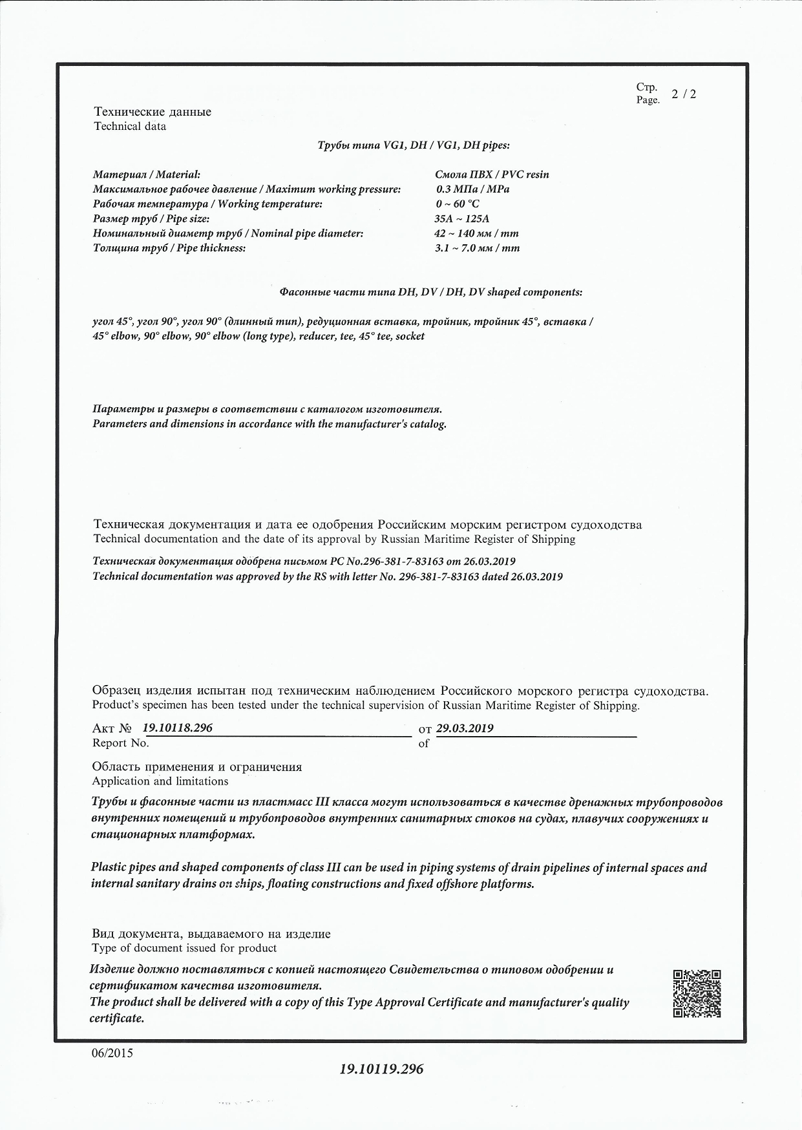

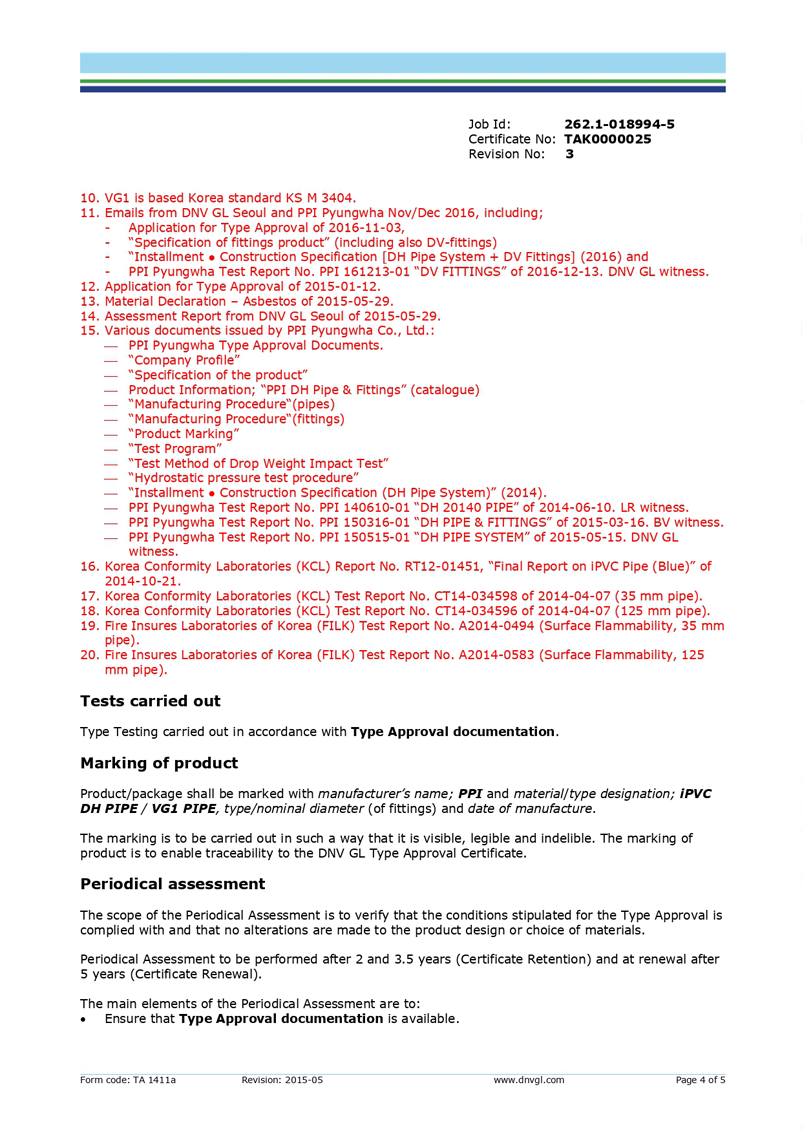

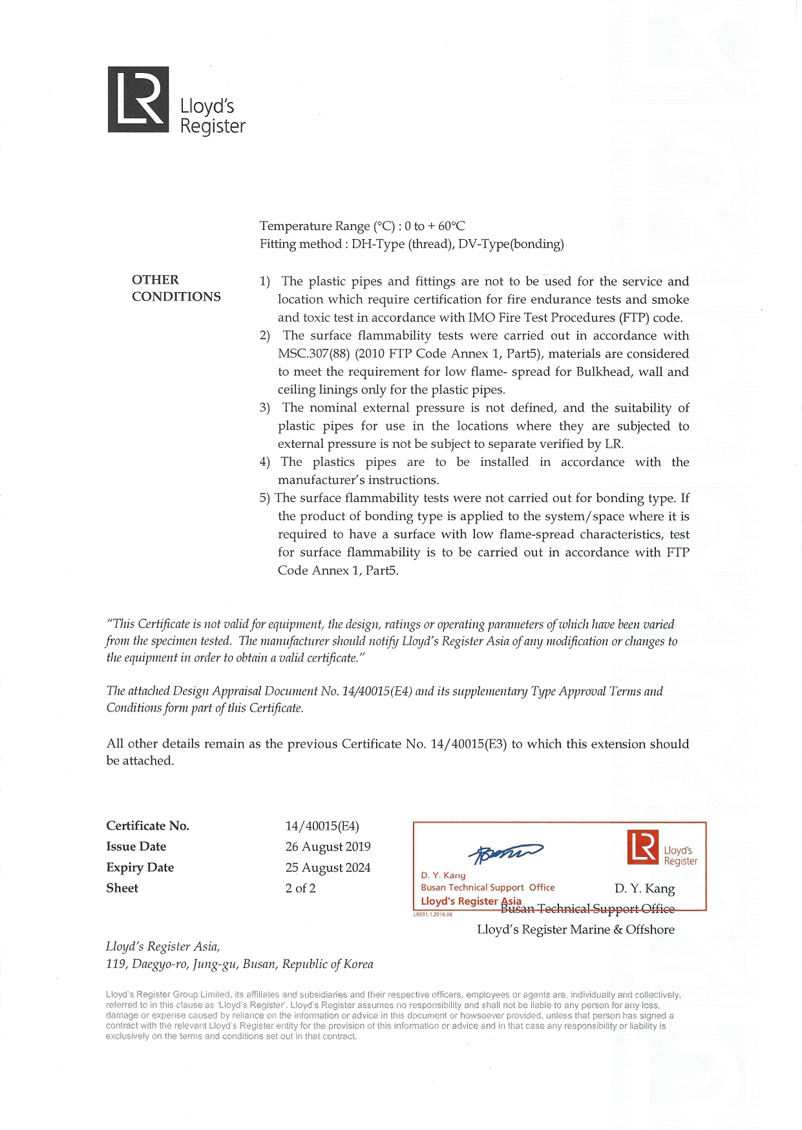

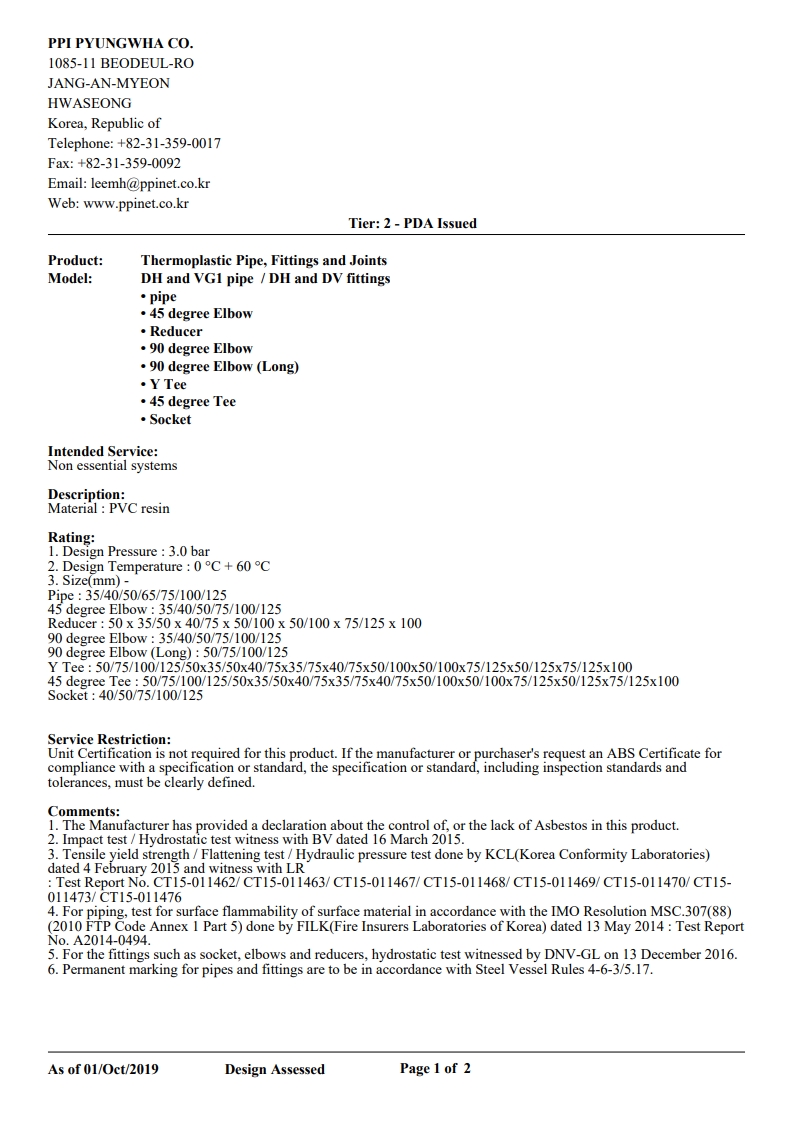

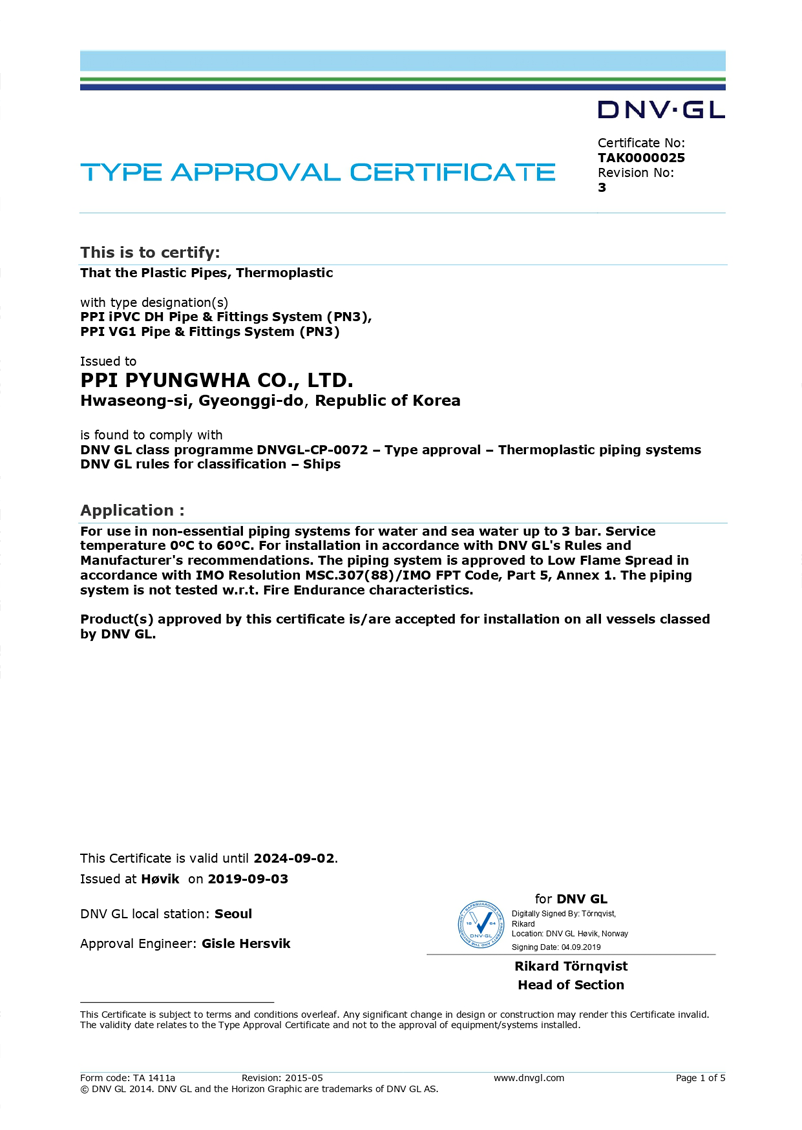

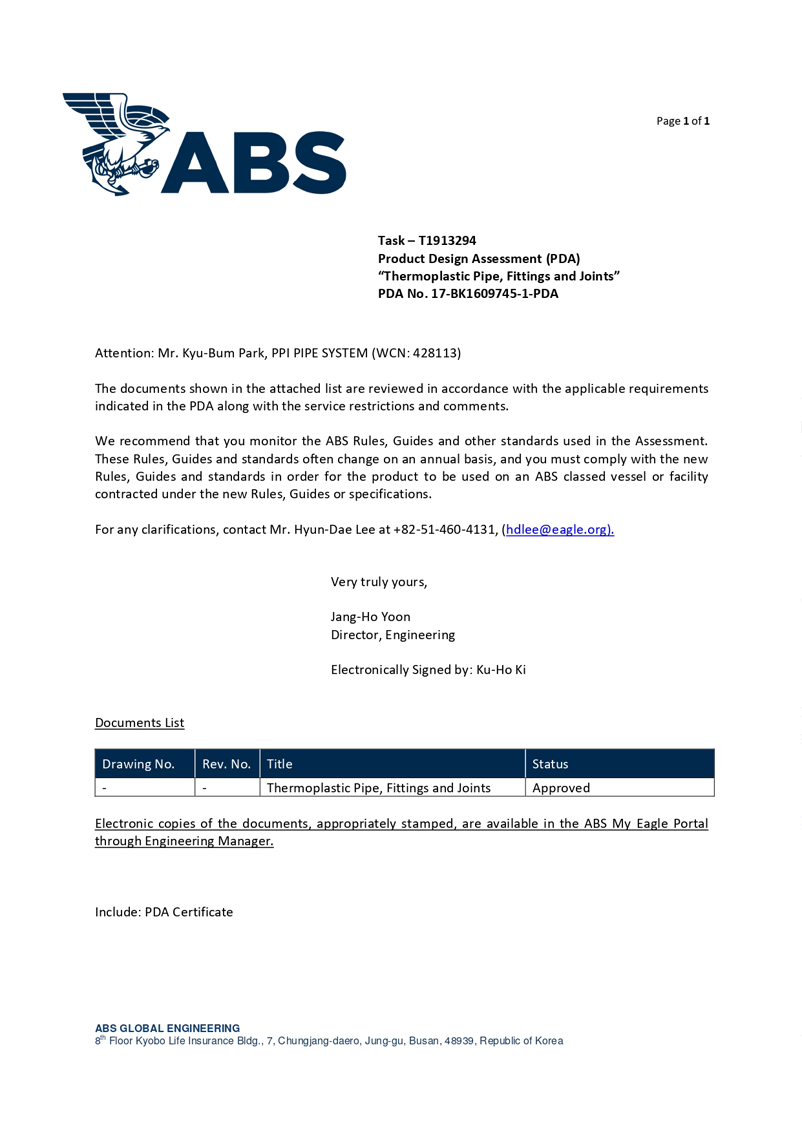

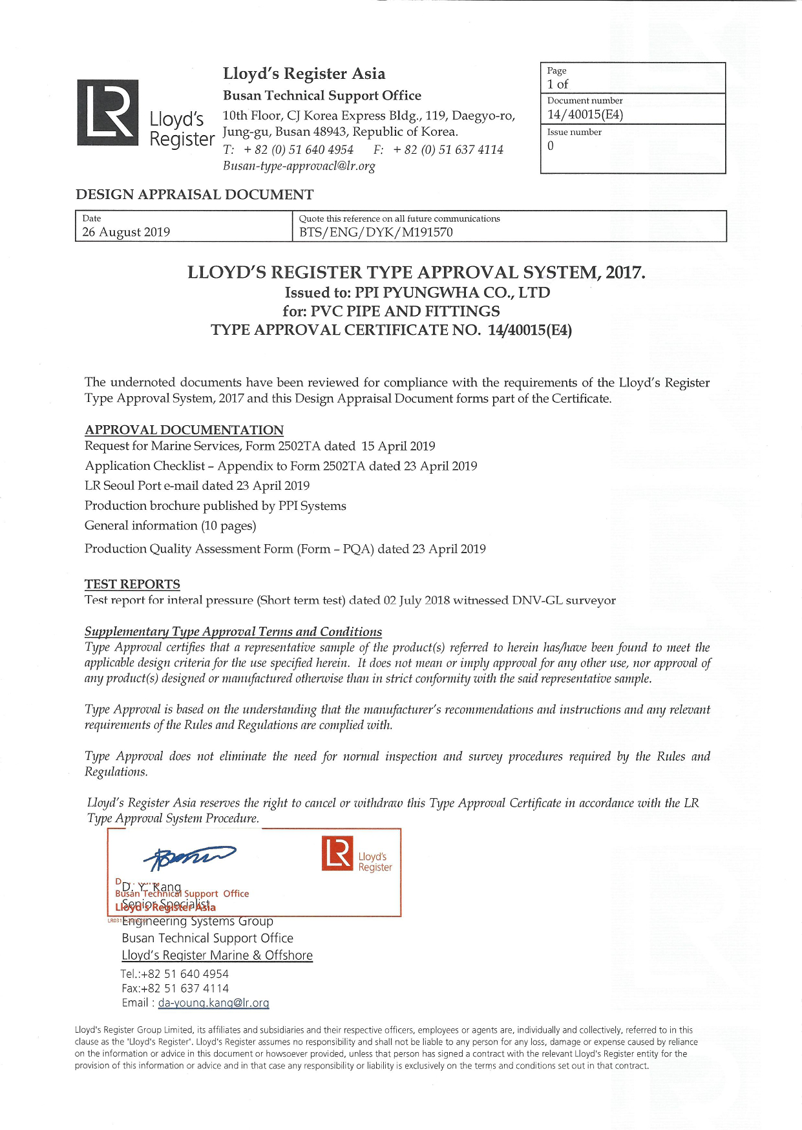

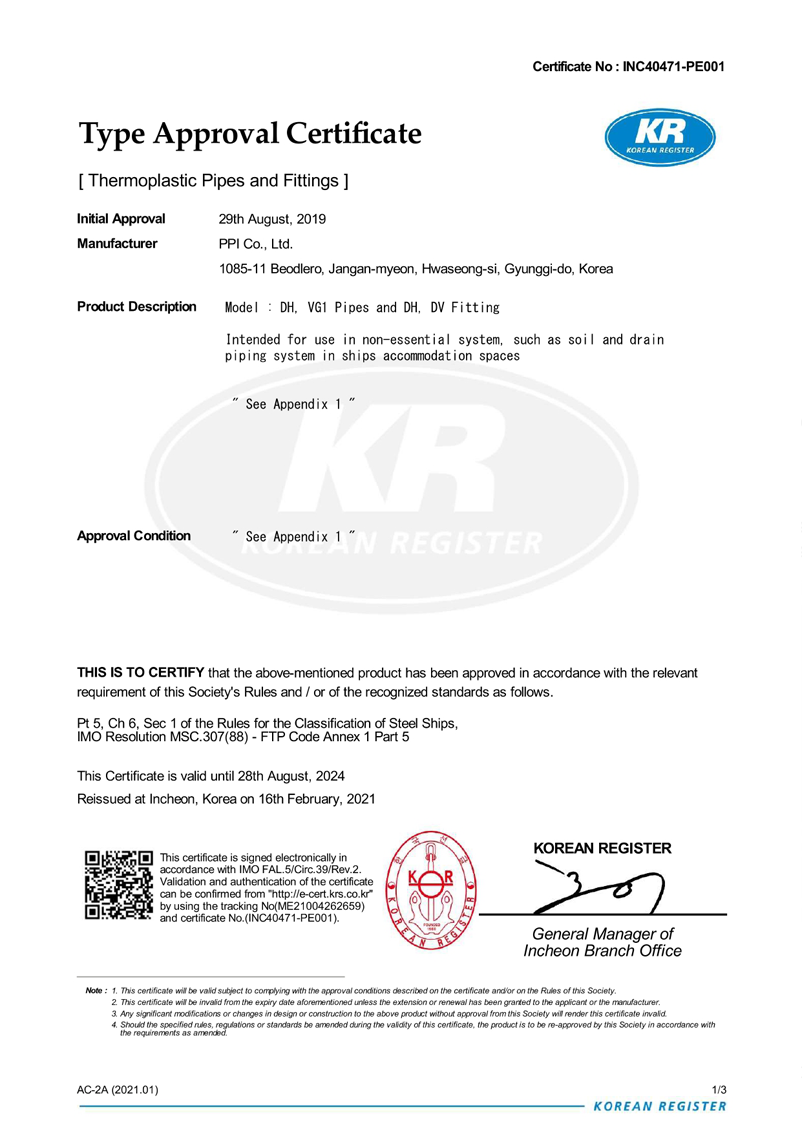

Certificates

Click the certificate to see a detailed description
